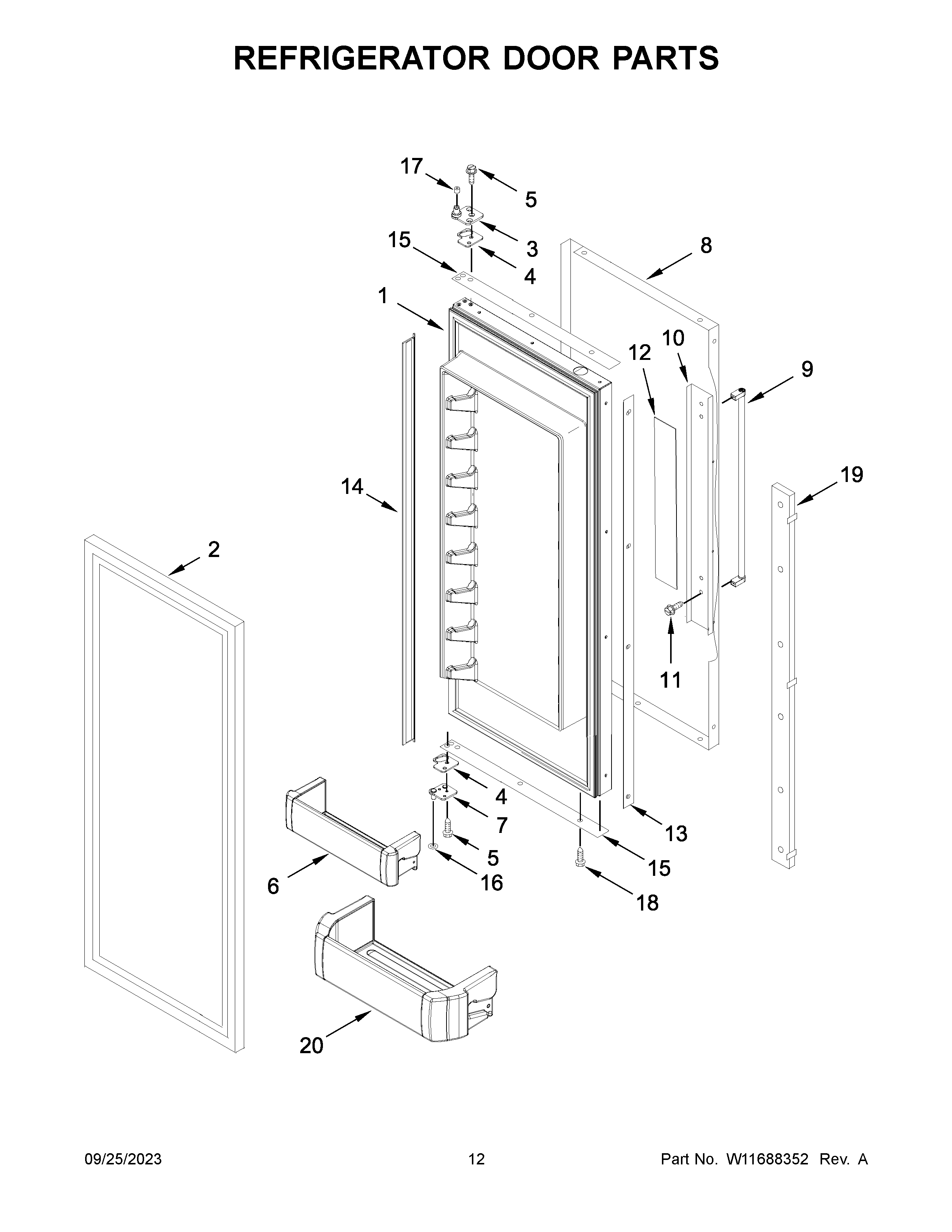

KBFN506ESS05 07 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1A	W10782282 Whirlpool Refrigerator Stainless Steel Door Assembly
1	W10782276 Whirlpool Refrigerator Stainless Steel Door Assembly
2	W10871887 Whirlpool Refrigerator FIP Gasket
4	W11673500 Whirlpool Door Hinge
5	W11474472 Whirlpool Screw
6	W10529449 Whirlpool Refrigerator Cantilever Bin
7A	W10273367 Whirlpool Refrigerator Door Hinge
7	W10273369 Whirlpool Refrigerator Door Hinge
8	W11109256 Whirlpool Refrigerator Door Skin
8A	W10799269 Whirlpool Refrigerator Door Skin
9	W10783284 Whirlpool Refrigerator Handle
10	W10127710 Whirlpool Refrigerator Plate
11	WP308544 Whirlpool Screw
12	FILLER (NOT SERVICED-INCLUDED WITH SKIN)
13	W10600736 Whirlpool Refrigerator Spacer
14	W10600734 Whirlpool Refrigerator Spacer
15	W10535347 Whirlpool Spacer
16	WP2006346 Whirlpool Refrigerator Washer
17	W11500952 Whirlpool Refrigerator Hinge Bushing
18A	WP8281250 Whirlpool Refrigerator Screw
18	W10851443 Whirlpool Refrigerator Screw
19	W11590867 Whirlpool Rail Molding
20	W10578289 Whirlpool Refrigerator Cantilever Bin
