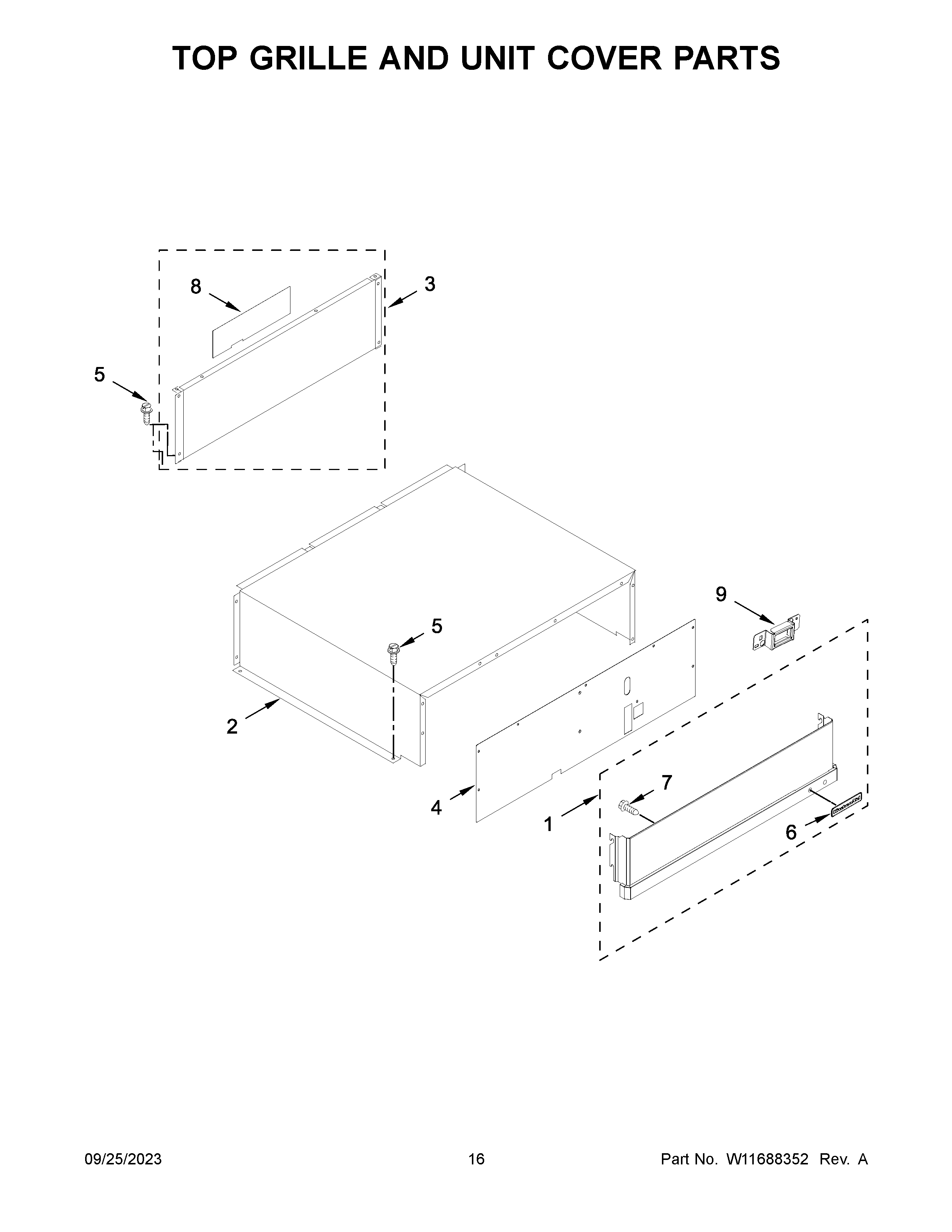

KBFN506ESS05 09 – TOP GRILLE AND UNIT COVER PARTS

KBFN506ESS05 09 – TOP GRILLE AND UNIT COVER PARTS

Written by

in

KBFN506ESS05 09 – TOP GRILLE AND UNIT COVER PARTS

Products

PositionProduct
1AW11449467 Whirlpool Refrigerator Upper Grille
1W11040844 Whirlpool Refrigerator Upper Grille
2W10545068 Whirlpool Refrigerator Unit Cover
32256466 Whirlpool Refrigerator Unit Cover
4COVER, UNIT FRONT
5WP489069 Whirlpool Compactor Screw
6W10839793 Whirlpool Refrigerator Nameplate
7WP489399 Whirlpool Refrigerator Screw
8INSULATION, UNIT BACK PANEL
9COVER, SAFETY SWITCH
