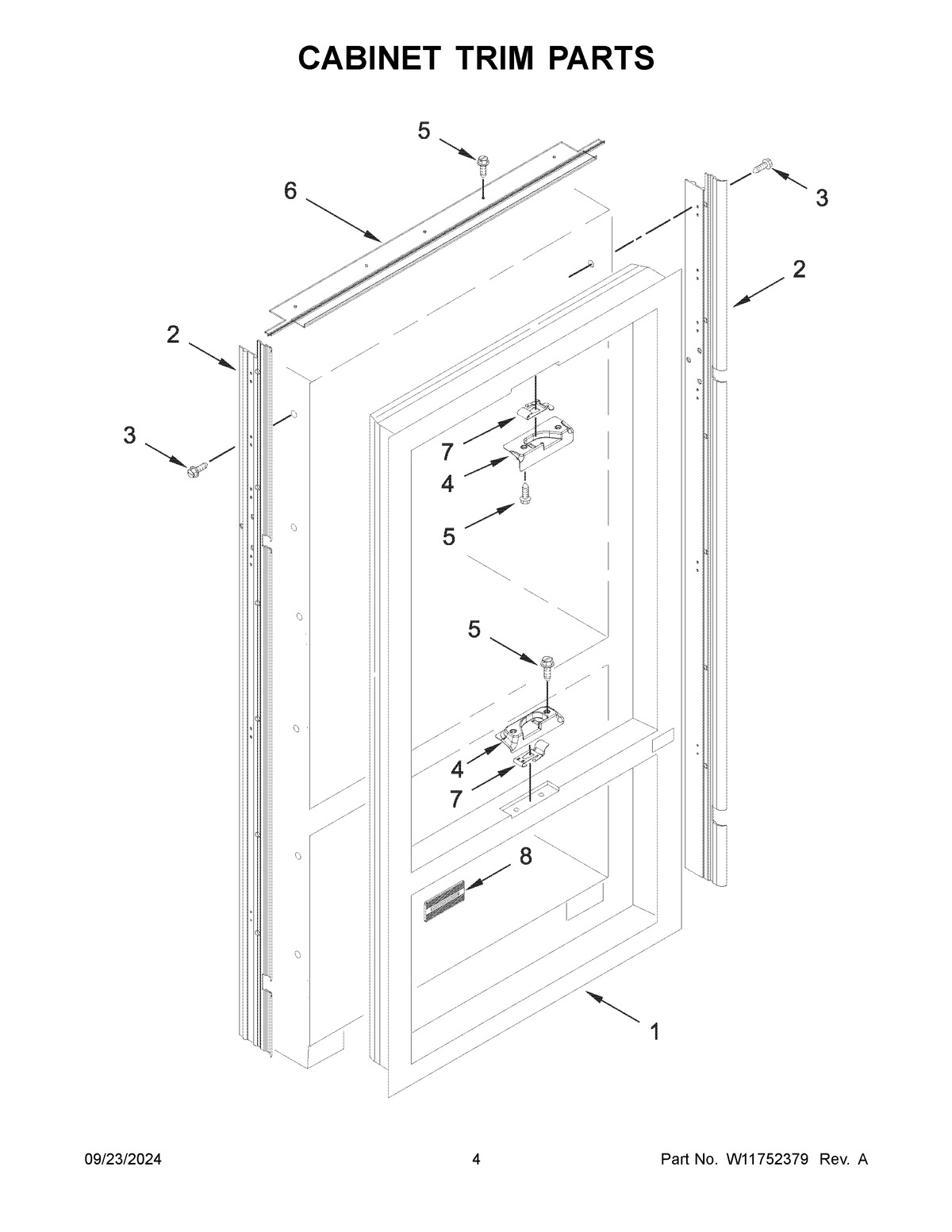

KBFN506ESS06 03 – CABINET TRIM PARTS

KBFN506ESS06 03 – CABINET TRIM PARTS

Written by

in

KBFN506ESS06 03 – CABINET TRIM PARTS

Products

PositionProduct
1BREAKER, TRIM (NOT SERVICED)
2W11173662 Whirlpool Refrigerator Cabinet Trim
2AW11173663 Whirlpool Refrigerator Cabinet Trim
3SCREW
4AW10672302 Whirlpool Refrigerator Slide
4W10672300 Whirlpool Refrigerator Slide Assembly
5W11624204 Whirlpool Screw
6TRIM, CABINET (TOP) (ALUMINUM)
7A2309231 Whirlpool Refrigerator Clip
72309230 Whirlpool Refrigerator Clip
8W10708610 Whirlpool Cover Assembly
