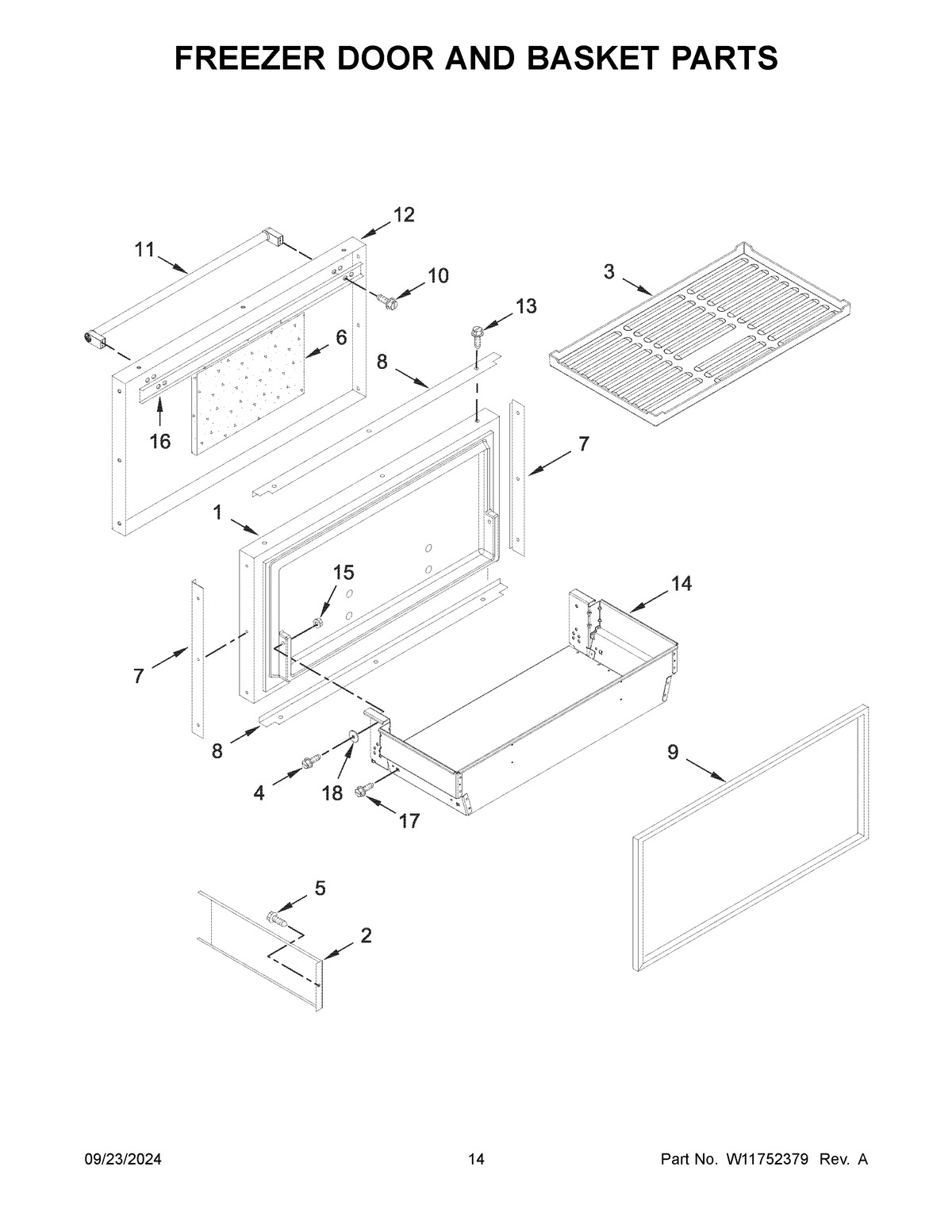

KBFN506ESS06 08 – FREEZER DOOR AND BASKET PARTS

KBFN506ESS06 08 – FREEZER DOOR AND BASKET PARTS

Written by

in

KBFN506ESS06 08 – FREEZER DOOR AND BASKET PARTS

Products

PositionProduct
1W10782352 Whirlpool Refrigerator Stainless Steel Door Assembly
2DIVIDER, BASKET
3W10665412 Whirlpool Mat
4W10761334 Whirlpool Screw Assembly
5WP488234 Whirlpool Air Conditioner Screw
6FILLER (NOT SERVICED-INCLUDED WITH SKIN)
7SPACER, DOOR EDGE (SIDE)
8SPACER, DOOR EDGE (TOP AND BOTTOM)
9W11625085 Whirlpool Refrigerator FIP Gasket
10WP308544 Whirlpool Screw
11W10783283 Whirlpool Refrigerator Handle
12W10799262 Whirlpool Refrigerator Door Skin
13SCREW (STAINLESS)
14ASSEMBLY, FREEZER BASKET
15NUT
16W10127710 Whirlpool Refrigerator Plate
17W10109030 Whirlpool Refrigerator Screw
18WASHER
