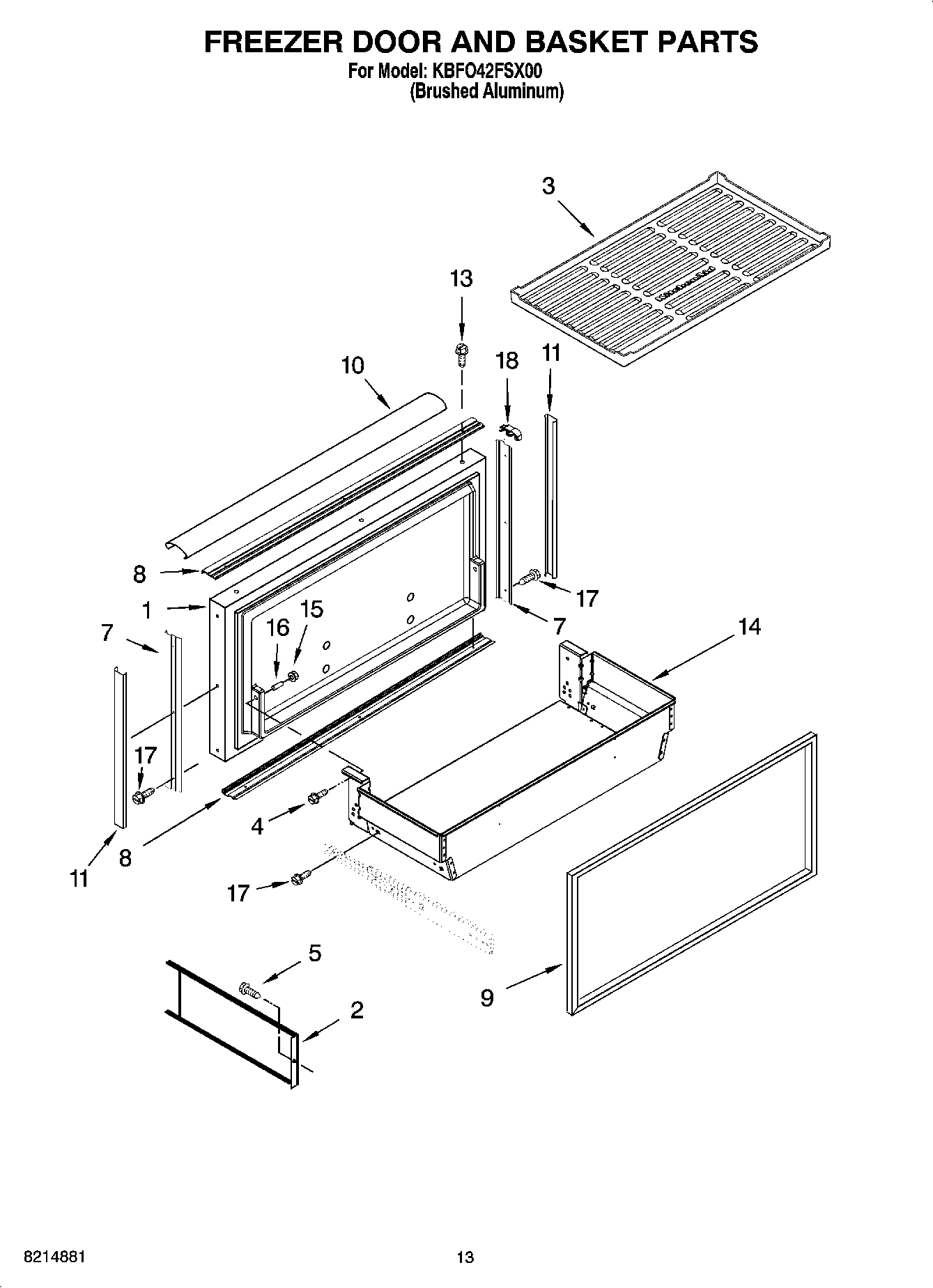

KBFO42FSX00 08 – FREEZER DOOR AND BASKET PARTS

KBFO42FSX00 08 – FREEZER DOOR AND BASKET PARTS

Written by

in

KBFO42FSX00 08 – FREEZER DOOR AND BASKET PARTS

Products

PositionProduct
1Freezer Door Panel (Includes Item 9)
2Divider, Basket (2)
3W10665413 Whirlpool Refrigerator Mat
4Screw, 5/16 x 1
5WPW10001160 Whirlpool Refrigerator Screw
72313999S Whirlpool Refrigerator Door Trim
82313998S Whirlpool Refrigerator Door Trim
92309216 Whirlpool Refrigerator Door Gasket
10Cover-Trim, Top
112309213S Whirlpool Refrigerator Cover Trim
13WP8281250 Whirlpool Refrigerator Screw
14Basket Assembly, Freezer
15WP2207454 Whirlpool Refrigerator Nut
16WASHER
17Screw, 10-24 x 1/2 (Basket to Slide)
182258903 Whirlpool Refrigerator Door Trim
