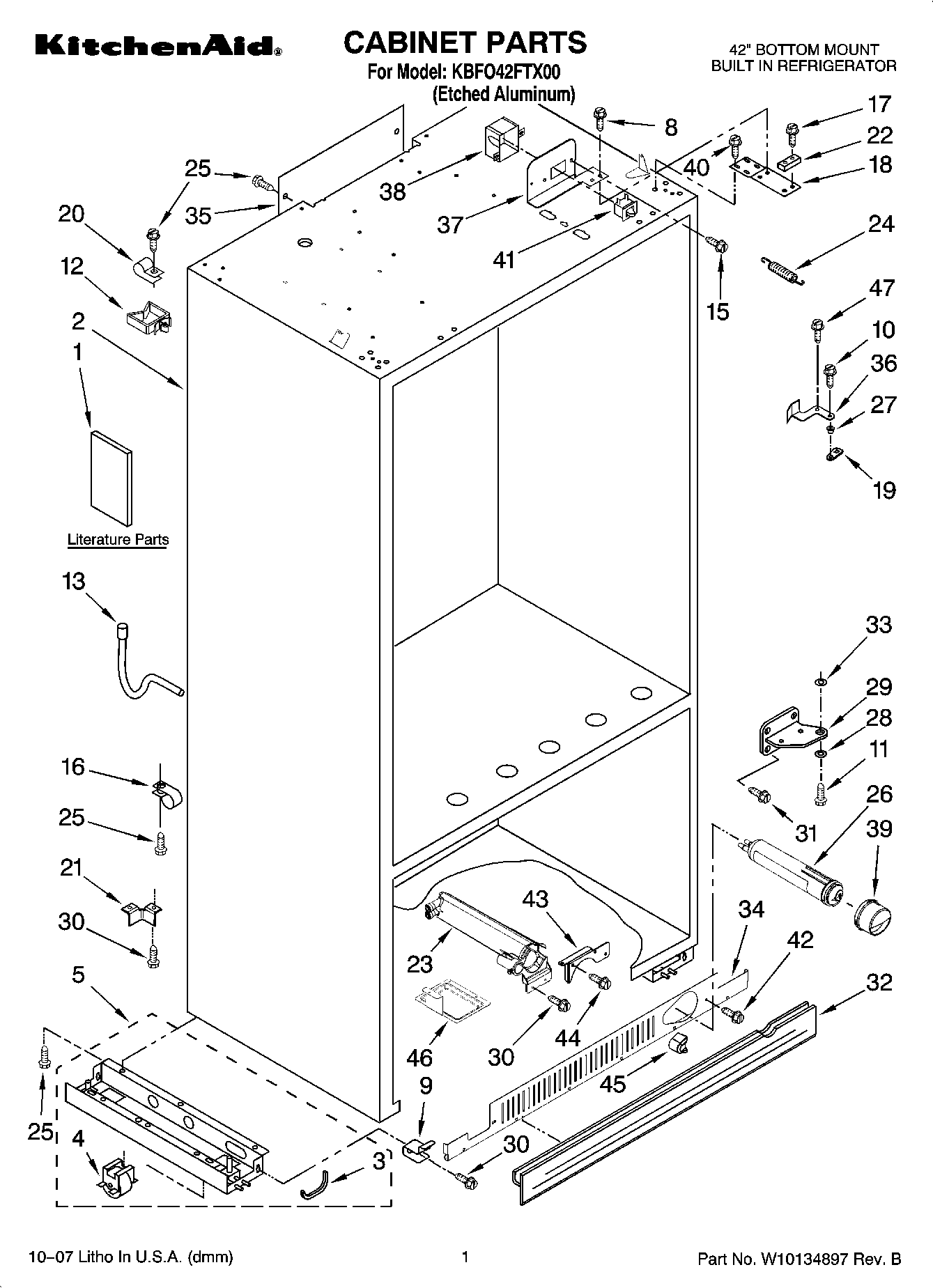

KBFO42FTX00 01 – CABINET PARTS

KBFO42FTX00 01 – CABINET PARTS

Written by

in

KBFO42FTX00 01 – CABINET PARTS

Products

PositionProduct
1Installation Instructions
1Use & Care Guide
1Modular Icemaker Service Sheet
1Main Control Service Sheet
1Energy Guide
1Service & Wiring Sheet
2Cabinet, (Not A Serviceable Part)
32307584 Whirlpool Refrigerator Grommet
4WPW10138054 Whirlpool Refrigerator Cabinet Roller
5W10860229 Whirlpool Refrigerator Support
5W10860448 Whirlpool Refrigerator Support
8WP8281164 Whirlpool Refrigerator Screw
9W10839844 Whirlpool Refrigerator Bracket
10SCREW
11WP488234 Whirlpool Air Conditioner Screw
12CLIP, TUBE
132314064 Whirlpool Refrigerator Drain Tube
15WP965173 Whirlpool Dishwasher Screw
16WP488366 Whirlpool Refrigerator Clamp
17Screw, Door Stop
18W11218690 Whirlpool Refrigerator Door Hinge
19WP2320509 Whirlpool Refrigerator Door Cam
20W10833902 Whirlpool Refrigerator Clamp
212006617 Whirlpool Refrigerator Bracket
22W11403572 Whirlpool Refrigerator Bracket
23WPW10121140 Whirlpool Refrigerator Housing
24WP2004517 Whirlpool Refrigerator Spring
25W11624204 Whirlpool Screw
26FILTER 3-SINGLE TEAL
27WP2316859 Whirlpool Refrigerator Bushing
28WP2004994 Whirlpool Refrigerator Hinge Bushing
29W10337505 Whirlpool Refrigerator Door Hinge
30WP489464 Whirlpool Refrigerator Screw
31W11474472 Whirlpool Screw
32SKIRT, GRILLE (BOTTOM)
332314023 Whirlpool Bushing
34Grille Base, Front
352215612 Whirlpool Refrigerator Duct Cover
36W11298172 Whirlpool Refrigerator Extension
36W10847927 Whirlpool Refrigerator Extension
372221097 Whirlpool Refrigerator Bracket
372221096 Whirlpool Refrigerator Bracket
382215938 Whirlpool Refrigerator Switch Cover
39WP2260518B Whirlpool Water Filter Cap
40W11189635 Whirlpool Refrigerator Screw
41W11384469 Whirlpool Door Switch
43W10674648 Whirlpool Refrigerator Bracket
44WP8281163 Whirlpool Refrigerator Screw
45WP2260503B Whirlpool Refrigerator Button
462318189 Whirlpool Refrigerator Drip Pan
47WP8533980 Whirlpool Refrigerator Screw
