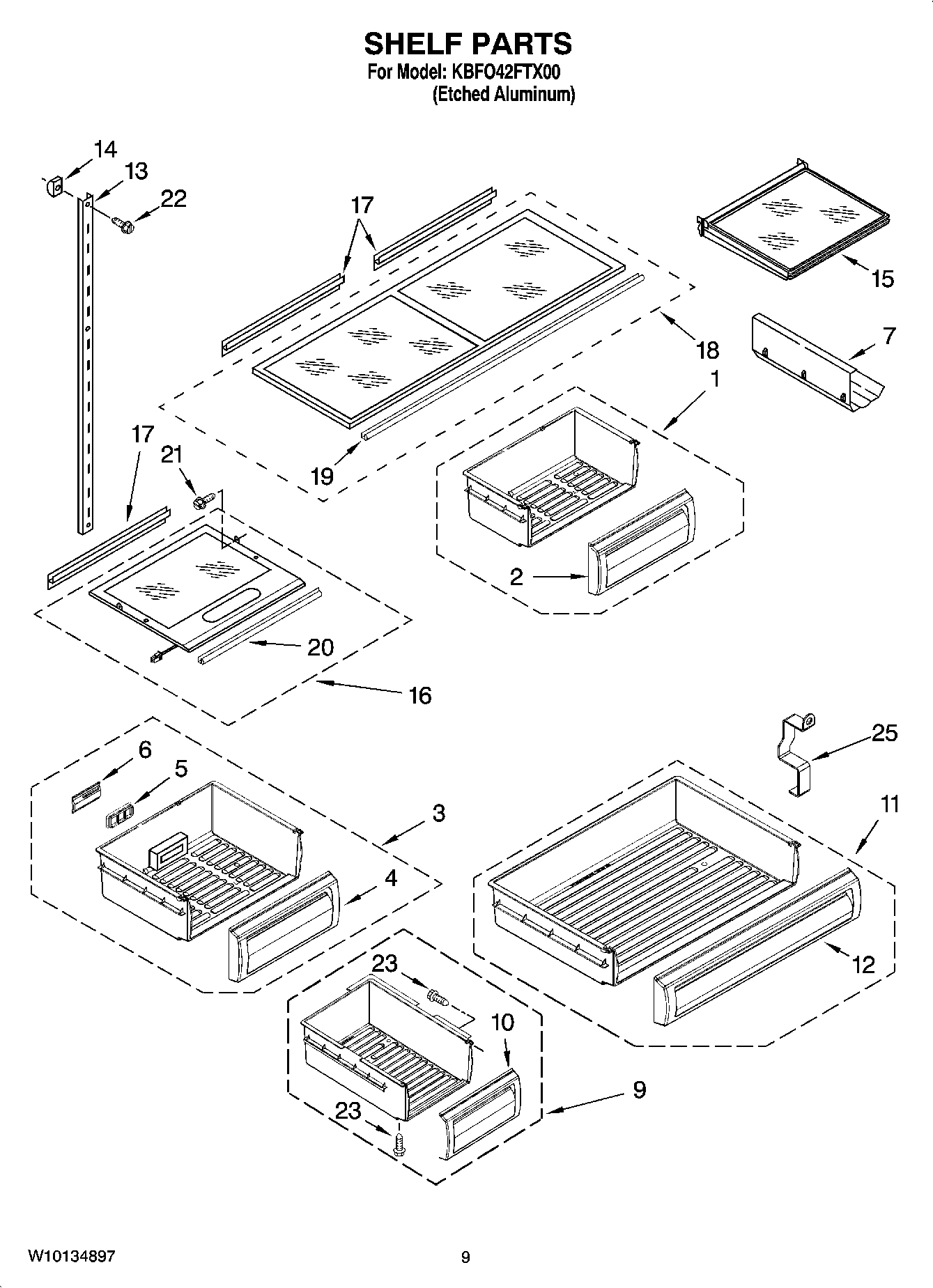

KBFO42FTX00 06 – SHELF PARTS

Products

PositionProduct
1Crisper Pan Assembly (Includes 2) (Left)
1Crisper Pan Assembly (Includes 2) (Right)
2WP2256247 Whirlpool Front Pan
3Deli Pan Assembly (Incl. 4, 5 & 6) (Right)
3Deli Pan Assembly (Incl. 4, 5 & 6) (Left)
4WP2256365 Whirlpool Refrigerator Front Pan
52307810 Whirlpool Refrigerator Air Duct
62317939 Whirlpool Refrigerator Deflector
7W10777924 Whirlpool Refrigerator Wine Rack
9Ice Pan Assembly (Includes 10)
102306175 Whirlpool Refrigerator Front Pan
112327511 Whirlpool Refrigerator Pan
12WP2256367 Whirlpool Refrigerator Front Pan
13Ladder, Shelf (4)
14520965 Whirlpool Refrigerator Support
15Shelf (4)
16W10757993-includeCORE Whirlpool W10757993 Refrigerator Electronic Control Board + Core
16W10757973-includeCORE Whirlpool W10757973 Refrigerator Electronic Control Board + Core
172309400 Whirlpool Pan Gasket
18W11430640 Whirlpool Glass Shelf
19Gasket, Front (Crisper Cover)
20Gasket, Front (2) (Deli Cover)
21Screw 8-15 x 1/2 (White)
222006475 Whirlpool Refrigerator Screw
23WP488787 Whirlpool Refrigerator Screw
25Locking Clip, Bin (Left Side)
25Locking Clip, Bin (Right Side)
