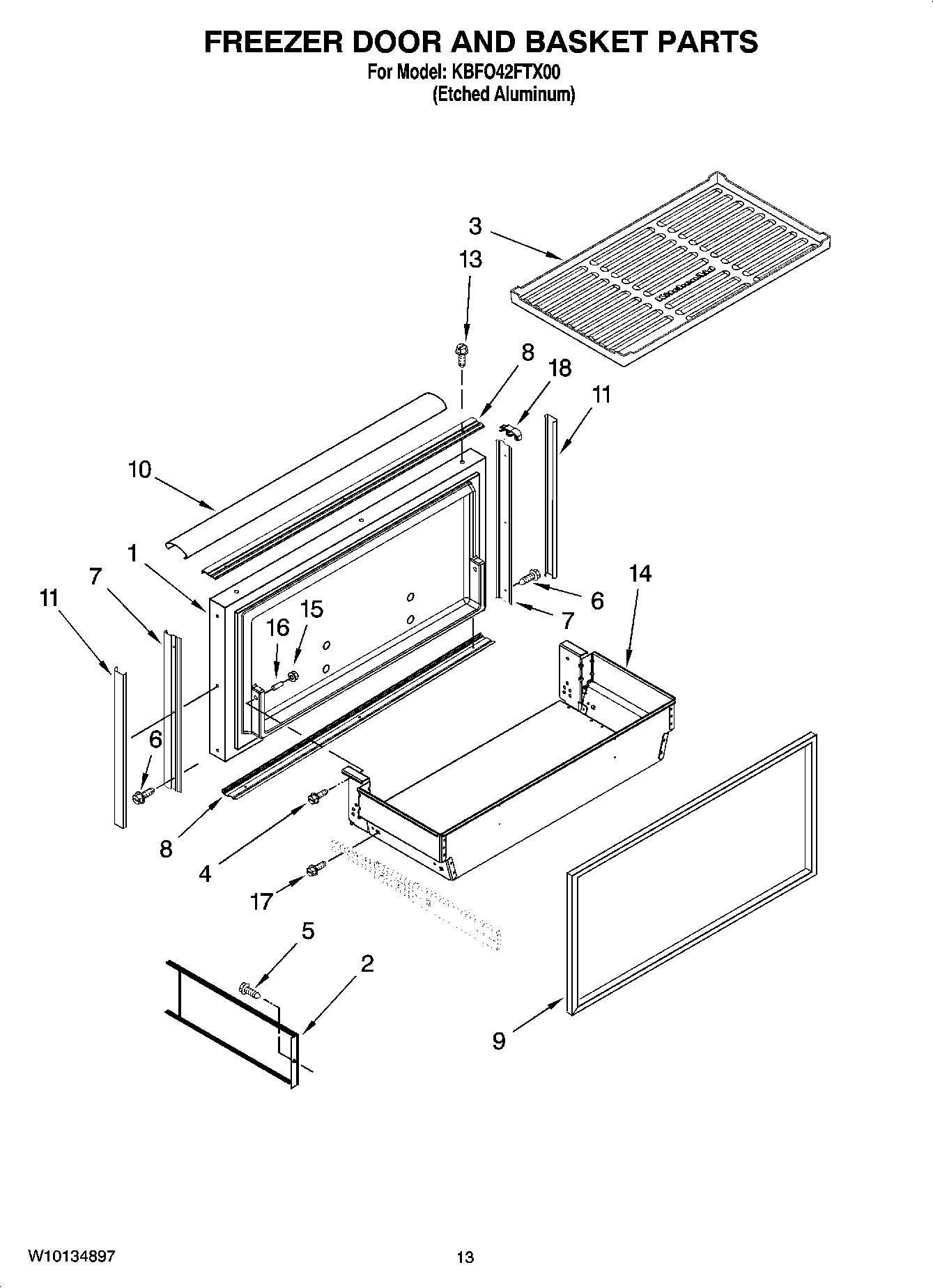

KBFO42FTX00 08 – FREEZER DOOR AND BASKET PARTS

KBFO42FTX00 08 – FREEZER DOOR AND BASKET PARTS

Written by

in

KBFO42FTX00 08 – FREEZER DOOR AND BASKET PARTS

Products

PositionProduct
1FREEZER DOOR (INCLUDES No.9)
2Divider, Basket (2)
3W10665413 Whirlpool Refrigerator Mat
4W10135775 Whirlpool Refrigerator Screw
5WP488234 Whirlpool Air Conditioner Screw
6W10109030 Whirlpool Refrigerator Screw
72313999S Whirlpool Refrigerator Door Trim
82313998S Whirlpool Refrigerator Door Trim
92309216 Whirlpool Refrigerator Door Gasket
10Cover-Trim, Top
112309213S Whirlpool Refrigerator Cover Trim
13WP8281250 Whirlpool Refrigerator Screw
14Basket Assembly, Freezer
15WP2207454 Whirlpool Refrigerator Nut
16WASHER
17Screw, 5/16 x 1
182258903 Whirlpool Refrigerator Door Trim
