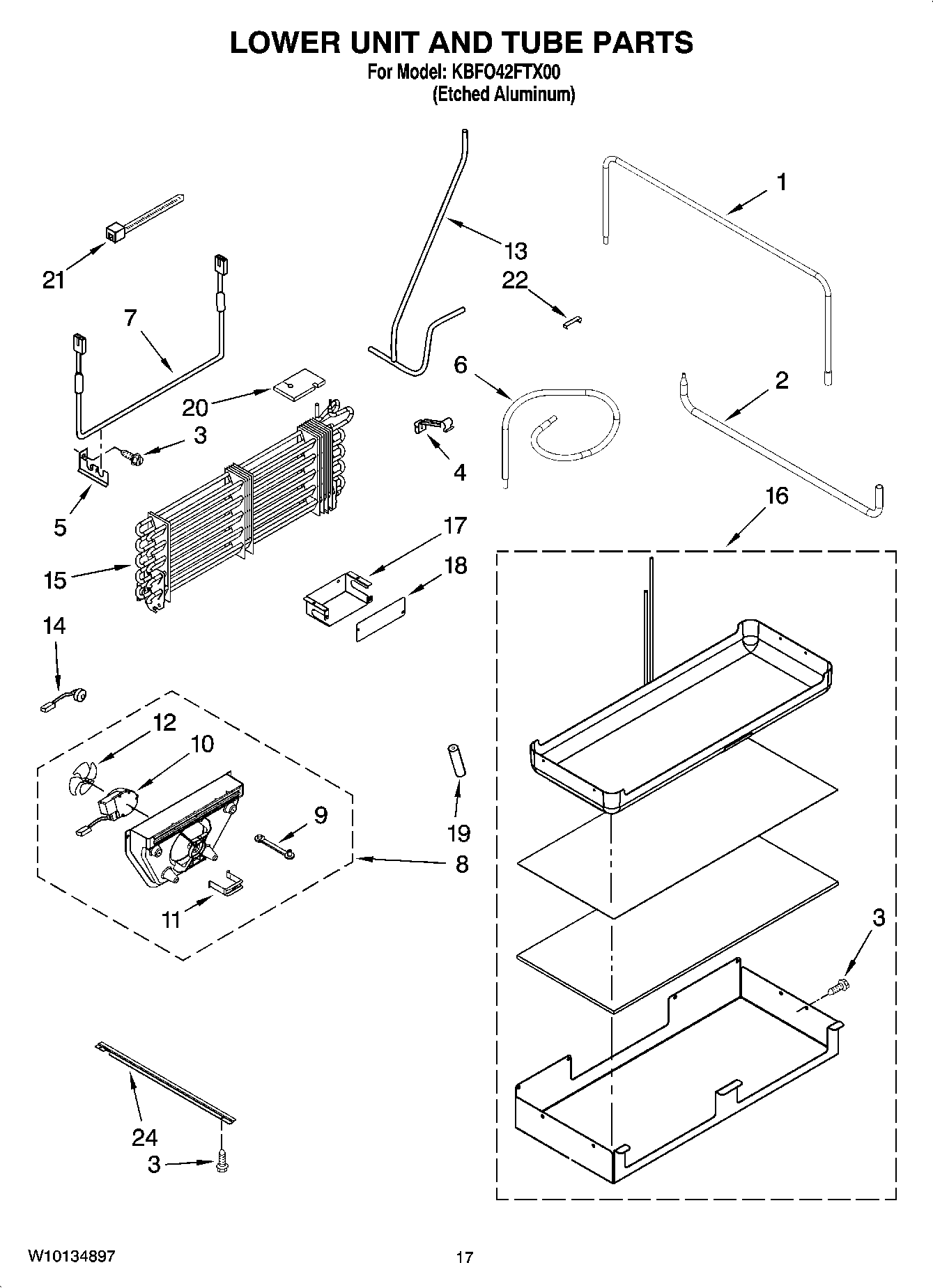

KBFO42FTX00 10 – LOWER UNIT AND TUBE PARTS

KBFO42FTX00 10 – LOWER UNIT AND TUBE PARTS

Written by

in

KBFO42FTX00 10 – LOWER UNIT AND TUBE PARTS

Products

PositionProduct
1Tube, Transition (Condenser)
2W10388653 Whirlpool Refrigerator Tube
3W11624204 Whirlpool Screw
42307944 Whirlpool Clip
5Bracket, Mounting
6Tube, Suction
7W10219166 Whirlpool Refrigerator Heater
8Scroll Assembly
9W11669856 Whirlpool Grommet
10Motor, Fan
118201663 Whirlpool Refrigerator Primary Fan Blade
12WP2169142 Whirlpool Fan Blade
132309073 Whirlpool Refrigerator Tube
14Defrost Bi-Metal
15W10195924 Whirlpool Refrigerator Evaporator
16WPW10281063 Whirlpool Refrigerator Heater Pan
17Cover, Box
18Cover, Wiring
192215648 Whirlpool Refrigerator Dampener
20Block, Evaporator
21WPW10339879 Whirlpool Wire Tie
22Clip, Heater
242320554 Whirlpool Bracket
