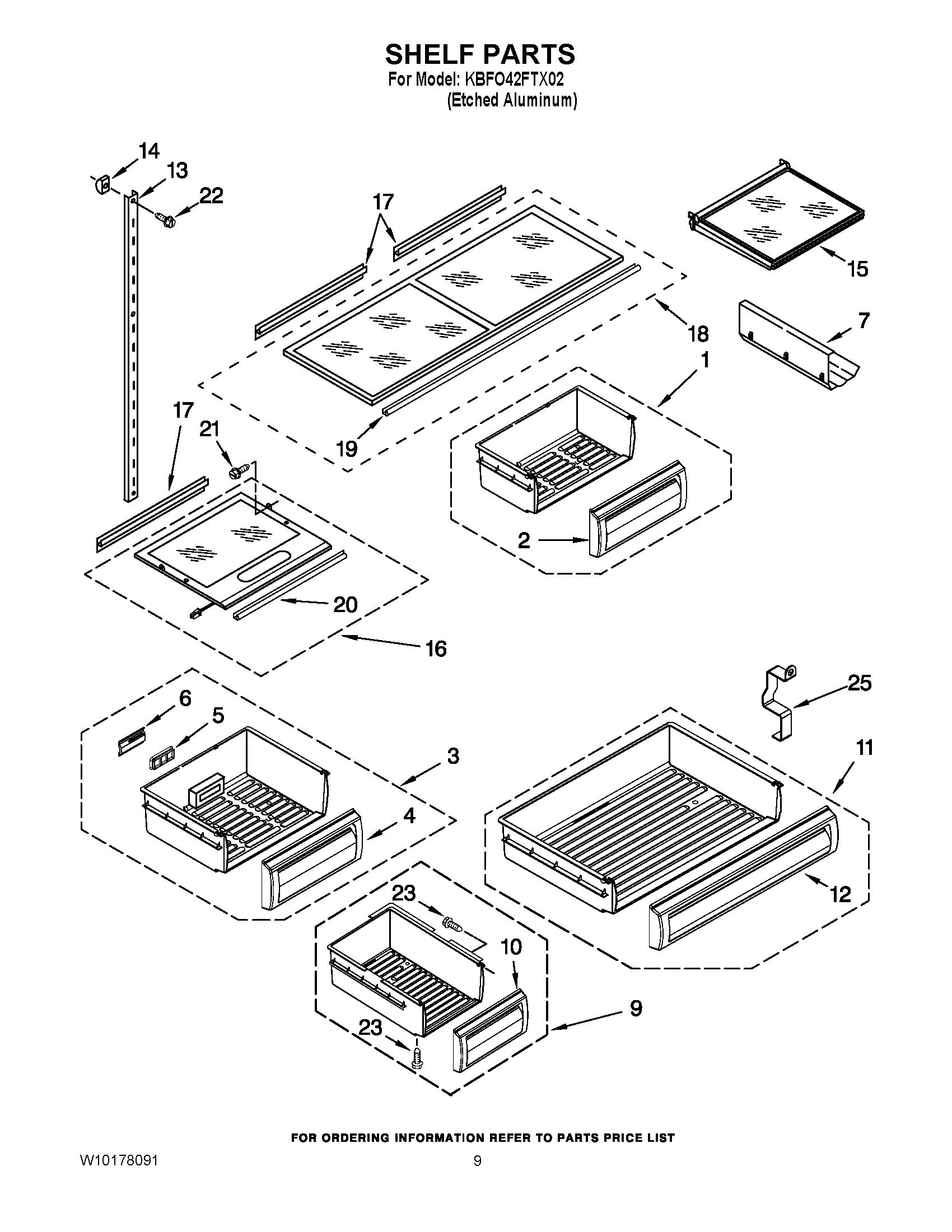

KBFO42FTX02 06 – SHELF PARTSadmin2025-04-26T11:39:46+00:00KBFO42FTX02 06 – SHELF PARTS ProductsPositionProduct1Crisper Pan Assembly (Includes 2) (Left)1Crisper Pan Assembly (Includes 2) (Right)2WP2256247 Whirlpool Front Pan3Deli Pan Assembly (Incl. 4, 5 & 6) (Right)3Deli Pan Assembly (Incl. 4, 5 & 6) (Left)4WP2256365 Whirlpool Refrigerator Front Pan52307810 Whirlpool Refrigerator Air Duct62317939 Whirlpool Refrigerator Deflector7W10777924 Whirlpool Refrigerator Wine Rack9Ice Pan Assembly (Includes 10)102306175 Whirlpool Refrigerator Front Pan112327511 Whirlpool Refrigerator Pan12WP2256367 Whirlpool Refrigerator Front Pan13Ladder, Shelf (4)14520965 Whirlpool Refrigerator Support15Shelf (4)16W10757993-includeCORE Whirlpool W10757993 Refrigerator Electronic Control Board + Core16W10757973-includeCORE Whirlpool W10757973 Refrigerator Electronic Control Board + Core172309400 Whirlpool Pan Gasket18W11430640 Whirlpool Glass Shelf19Gasket, Front (Crisper Cover)20Gasket, Front (2) (Deli Cover)21Screw 8-15 x 1/2 (White)222006475 Whirlpool Refrigerator Screw23WP488787 Whirlpool Refrigerator Screw25Locking Clip, Bin (Left Side)25Locking Clip, Bin (Right Side)
