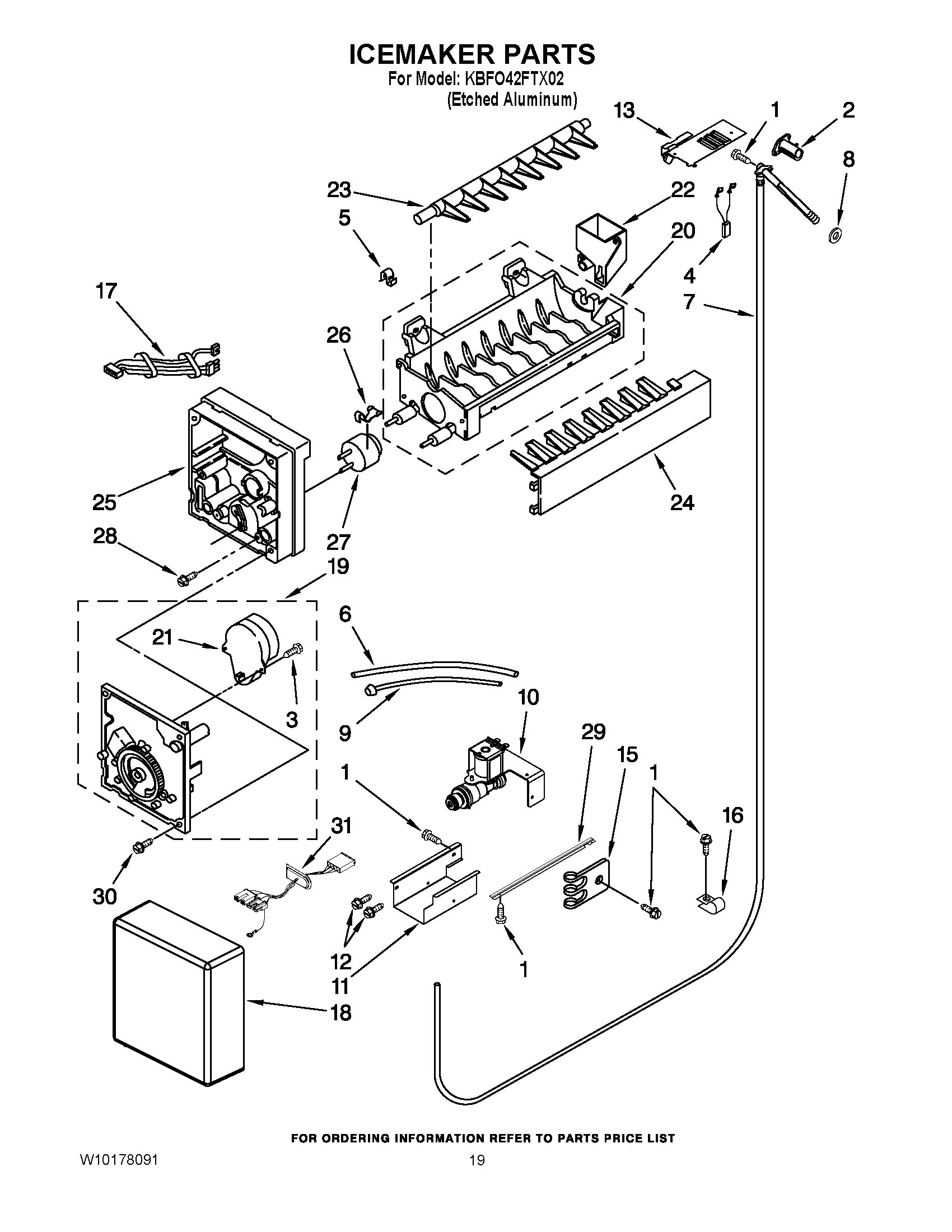

KBFO42FTX02 11 – ICEMAKER PARTS

Products

Position	Product
NI	Cleaner, Stainless Steel
1	W11624204 Whirlpool Screw
2	WP2221240 Whirlpool Refrigerator Heater
3	489136 Whirlpool Refrigerator Screw
4	Jumper, Heater Fill Tube
5	WP628379 Whirlpool Refrigerator Clip
6	Tube, Filter Inlet
7	Tube Assembly, Water Inlet
8	WP1106508 Whirlpool Refrigerator Gasket
9	W11533506 Whirlpool Refrigerator Water Tube
10	VALVE-INLT REFR
11	Shield, Valve
12	WP489464 Whirlpool Refrigerator Screw
13	WP2221231 Whirlpool Refrigerator Shield
15	489348 Whirlpool Refrigerator Tube Clamp
16	488946 Whirlpool Air Conditioner Clamp
17	2310136 Whirlpool Refrigerator Wire Harness
18	Cover
20	WPW10190929 Whirlpool Refrigerator Ice Maker Mold
21	8201515 Whirlpool Refrigerator Motor and Gear Module Kit
22	WP628356 Whirlpool Refrigerator Fill Cup
23	WP627843 Whirlpool Refrigerator Ejector Arm
24	WP2182124 Whirlpool Refrigerator Stripper Arm
25	WP2195914 Whirlpool Refrigerator Ice Maker Housing
26	WP2315522 Whirlpool Refrigerator Clip
27	WP627985 Whirlpool Icemaker Cycling Thermostat
28	8533917 Whirlpool Refrigerator Screw
29	Support, Valve
30	WP681249 Whirlpool Screw Assembly
31	W10139195 Whirlpool Wire Harness
100	WPW10277450 Whirlpool Refrigerator Icemaker
