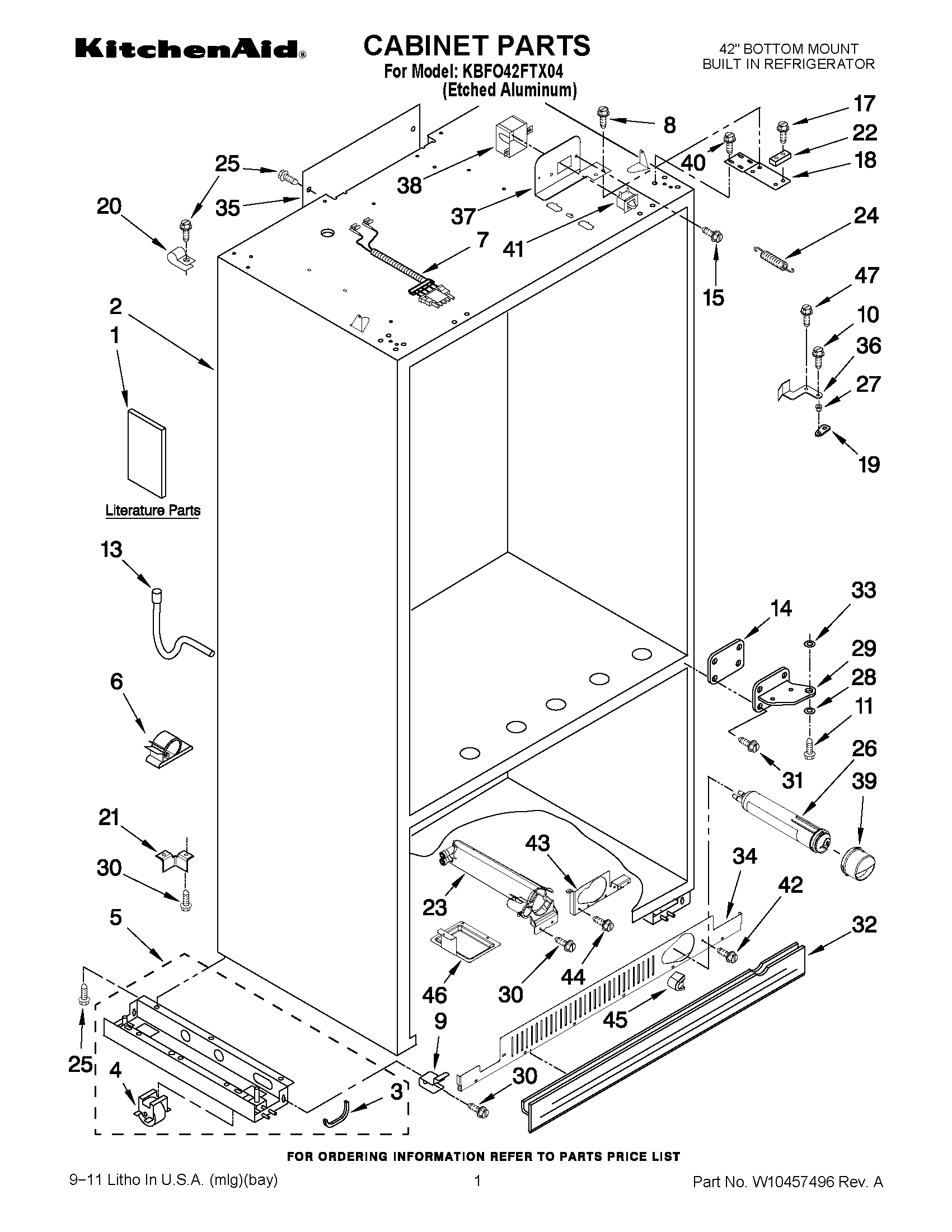

KBFO42FTX04 01 – CABINET PARTS

Products

Position	Product
1	Energy Guide
1	Service & Wiring Sheet
1	Main Control Service Sheet
1	INSTALLATION INSTRUCTIONS
1	USE & CARE GUIDE
1	Modular Icemaker Service Sheet
2	CABINET (NOT A SERVICEABLE PART)
3	2307584 Whirlpool Refrigerator Grommet
4	WPW10138054 Whirlpool Refrigerator Cabinet Roller
5	W10860448 Whirlpool Refrigerator Support
5	W10860229 Whirlpool Refrigerator Support
6	Clamp
7	2187946 Whirlpool Refrigerator Wire Jumper
8	WP8281164 Whirlpool Refrigerator Screw
9	W10839844 Whirlpool Refrigerator Bracket
10	SCREW
11	WP488234 Whirlpool Air Conditioner Screw
13	2314064 Whirlpool Refrigerator Drain Tube
14	2207470 Whirlpool Refrigerator Hinge Shim
15	WP965173 Whirlpool Dishwasher Screw
17	Screw, Door Stop
18	W11218690 Whirlpool Refrigerator Door Hinge
19	WP2320509 Whirlpool Refrigerator Door Cam
20	CLAMP, TUBE
21	2006617 Whirlpool Refrigerator Bracket
22	W11403572 Whirlpool Refrigerator Bracket
23	WPW10121140 Whirlpool Refrigerator Housing
24	WP2004517 Whirlpool Refrigerator Spring
25	W11624204 Whirlpool Screw
26	FILTER 3-SINGLE TEAL
27	WP2316859 Whirlpool Refrigerator Bushing
28	WP2004994 Whirlpool Refrigerator Hinge Bushing
29	W10337505 Whirlpool Refrigerator Door Hinge
30	WP489464 Whirlpool Refrigerator Screw
31	W11474472 Whirlpool Screw
32	SKIRT, GRILLE (BOTTOM)
33	2314023 Whirlpool Bushing
34	Grille Base, Front
35	W10426957 Whirlpool Duct Cover
36	W10847927 Whirlpool Refrigerator Extension
36	W11298172 Whirlpool Refrigerator Extension
37	2221096 Whirlpool Refrigerator Bracket
37	2221097 Whirlpool Refrigerator Bracket
38	2215938 Whirlpool Refrigerator Switch Cover
39	WP2260518B Whirlpool Water Filter Cap
40	W11189635 Whirlpool Refrigerator Screw
41	W11384469 Whirlpool Door Switch
43	W10674648 Whirlpool Refrigerator Bracket
44	WP8281163 Whirlpool Refrigerator Screw
45	WP2260503B Whirlpool Refrigerator Button
46	2318189 Whirlpool Refrigerator Drip Pan
47	WP8533980 Whirlpool Refrigerator Screw
