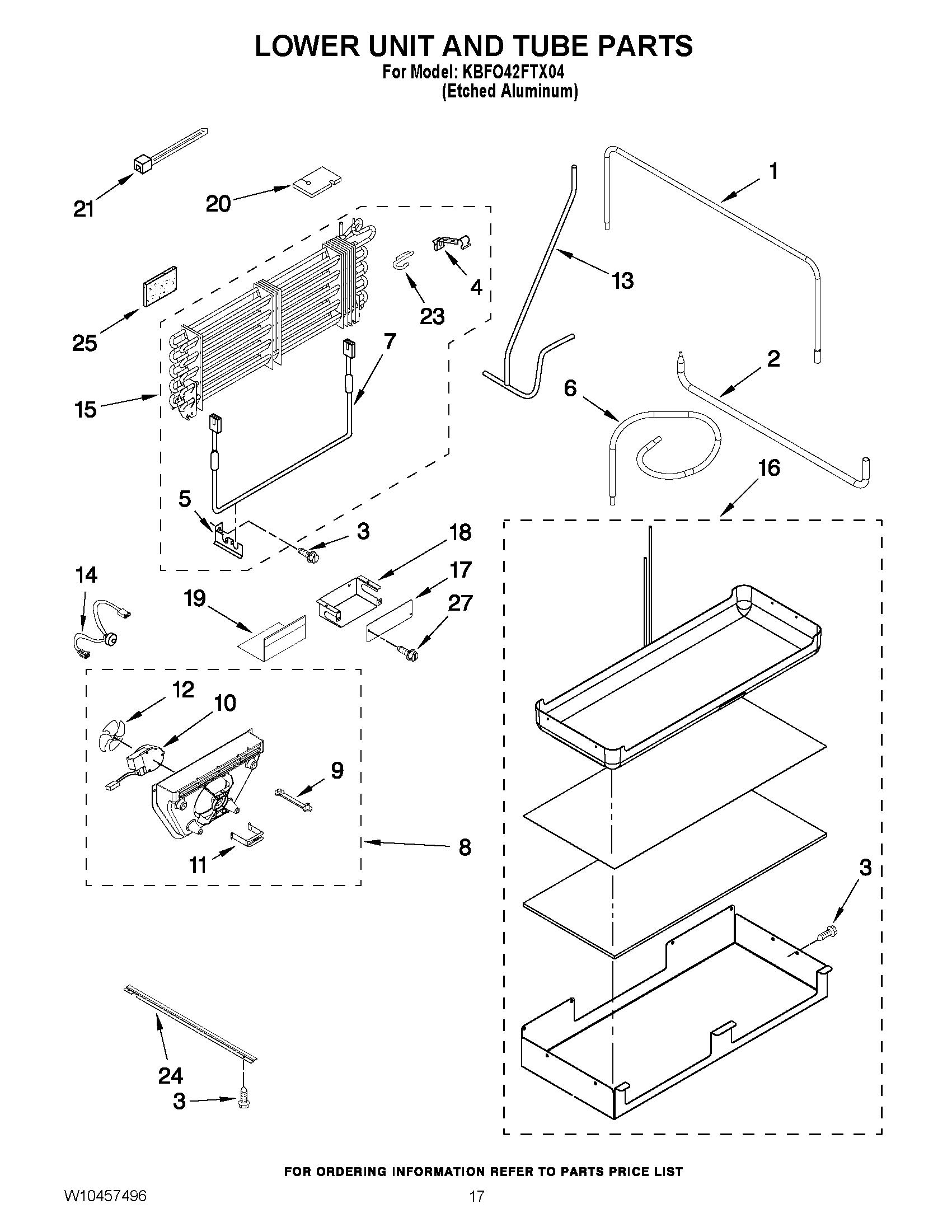

KBFO42FTX04 10 – LOWER UNIT AND TUBE PARTS

Products

PositionProduct
1Tube, Transition (Condenser)
2W10388653 Whirlpool Refrigerator Tube
3W11624204 Whirlpool Screw
42307944 Whirlpool Clip
5Bracket, Mounting
6W10306442 Whirlpool Refrigerator Tube
7W10219166 Whirlpool Refrigerator Heater
8Scroll Assembly
9W11669856 Whirlpool Grommet
10Motor, Fan
118201663 Whirlpool Refrigerator Primary Fan Blade
12WP2169142 Whirlpool Fan Blade
13W10404239 Whirlpool Refrigerator Tube
14W10139165 Whirlpool Refrigerator Wire Harness
15W10195924 Whirlpool Refrigerator Evaporator
16WPW10281063 Whirlpool Refrigerator Heater Pan
17WIRE BOX COVER
18WIRE COVER BOTTOM
19W10321050 Whirlpool Refrigerator Shield
20Block, Evaporator
21WPW10339879 Whirlpool Wire Tie
23Clip, Heater
242320554 Whirlpool Bracket
25W11553819 Whirlpool Refrigerator Insulation
27WP489069 Whirlpool Compactor Screw
