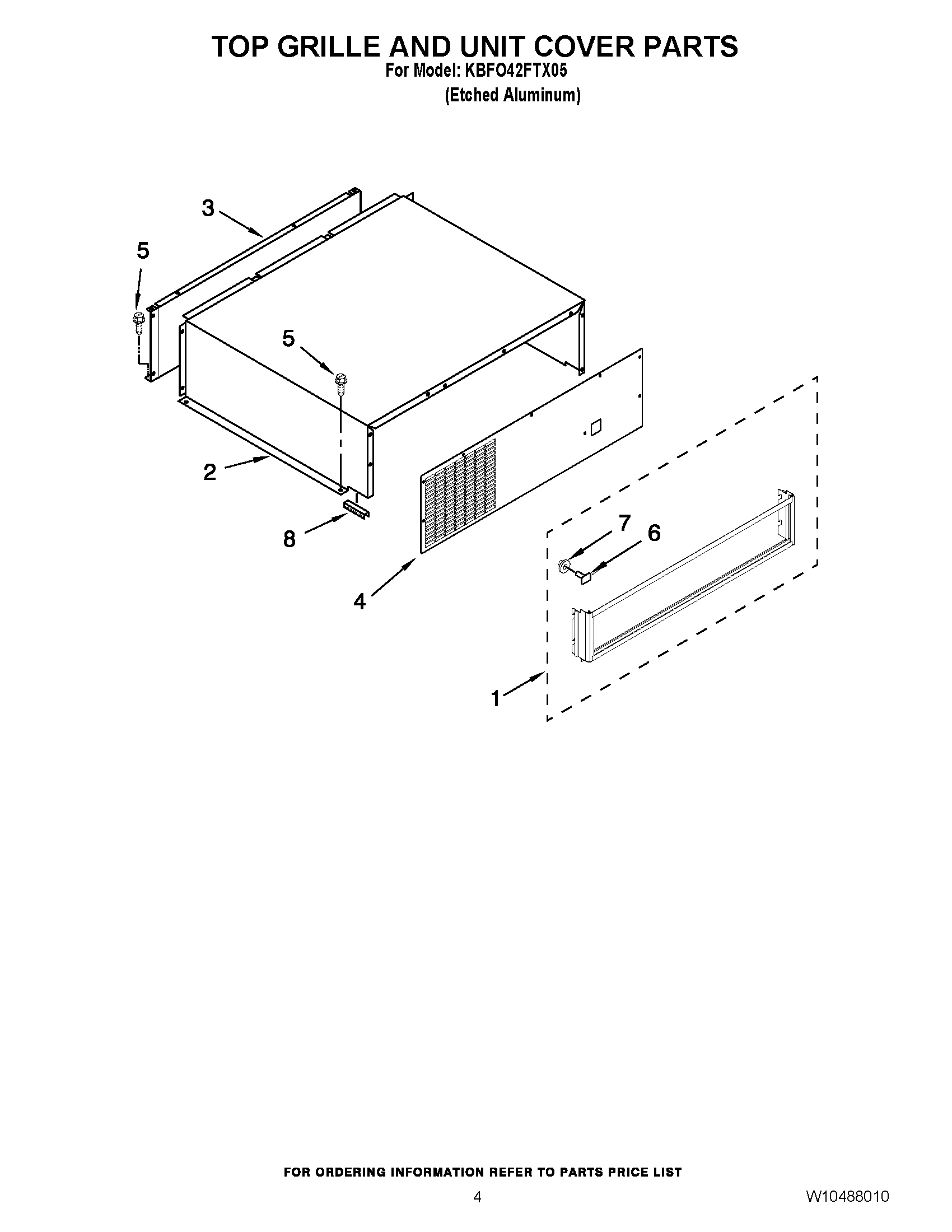

KBFO42FTX05 03 – TOP GRILLE AND UNIT COVER PARTS

Written by

Products

Position	Product
1	WP2317080S Whirlpool Upper Grille
2	COVER, UNIT
3	2256466 Whirlpool Refrigerator Unit Cover
4	FRONT, UNIT COVER
5	WP489069 Whirlpool Compactor Screw
6	2003347 Whirlpool Screw
7	WP488130 Whirlpool Air Conditioner Nut
8	2215910 Whirlpool Refrigerator Grommet
