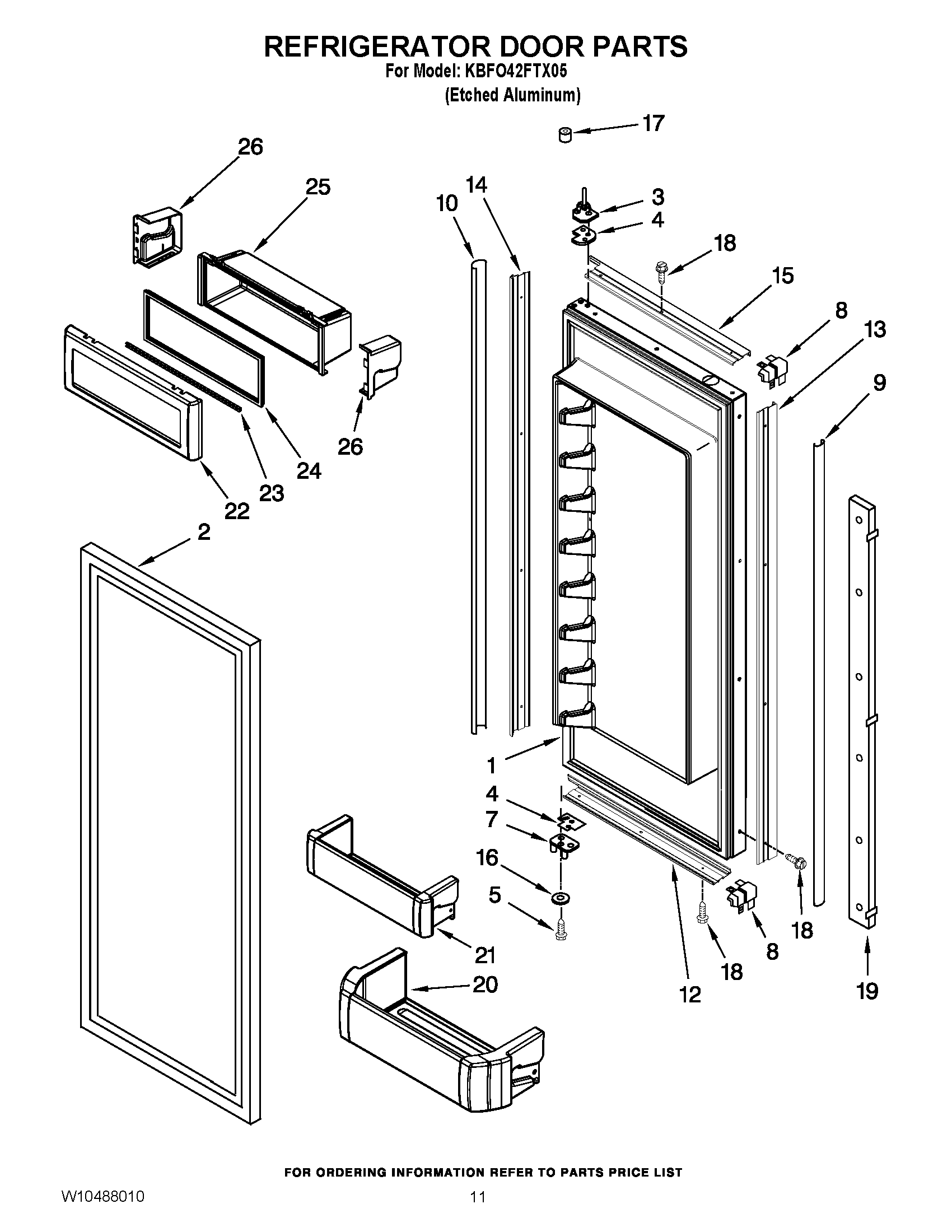

KBFO42FTX05 07 – REFRIGERATOR DOOR PARTS

KBFO42FTX05 07 – REFRIGERATOR DOOR PARTS

Written by

in

KBFO42FTX05 07 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1Door, Refrigerator (Includes Item 2) (Right Side)
1Door, Refrigerator (Includes Item 2) (Left Side)
28201809 Whirlpool Refrigerator Door Gasket
4W11673500 Whirlpool Door Hinge
5W11474472 Whirlpool Screw
7W10273367 Whirlpool Refrigerator Door Hinge
7W10273369 Whirlpool Refrigerator Door Hinge
82207457 Whirlpool Refrigerator Door Trim
92309021S Whirlpool Refrigerator Cover Trim
102309022S Whirlpool Refrigerator Trim Cover
122314031S Whirlpool Refrigerator Door Trim
132314030S Whirlpool Refrigerator Door Trim
142309031S Whirlpool Refrigerator Door Trim
152314028S Whirlpool Refrigerator Door Trim
16WP2006346 Whirlpool Refrigerator Washer
17W11500952 Whirlpool Refrigerator Hinge Bushing
18WP8281250 Whirlpool Refrigerator Screw
19Mullion Assembly
20W10323746 Whirlpool Refrigerator Cantilever Bin
21W10323598 Whirlpool Refrigerator Cantilever Bin
22WPW10131132 Whirlpool Refrigerator Door Compressor
232222795 Whirlpool Refrigerator Rail
24WP2222981 Whirlpool Refrigerator Gasket
25WPW10323035 Whirlpool Refrigerator Cantilever Bin
26WPW10323173 Whirlpool Refrigerator Retainer End Cap
26WPW10323172 Whirlpool Refrigerator Retainer End Cap
