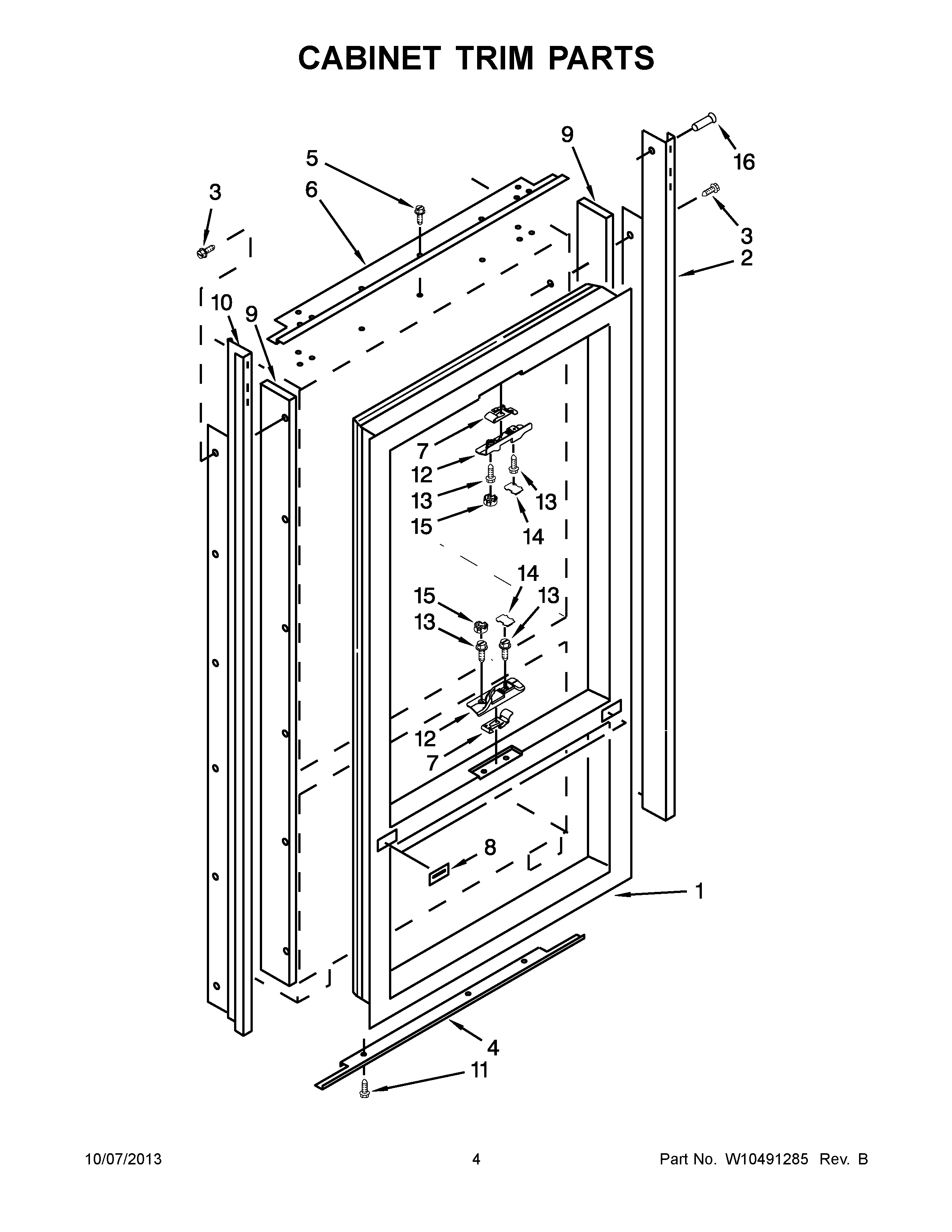

KBFO42FTX06 03 – CABINET TRIM PARTS

KBFO42FTX06 03 – CABINET TRIM PARTS

Written by

in

KBFO42FTX06 03 – CABINET TRIM PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2Cabinet Trim, Right Side
3WP1163283 Whirlpool Air Conditioner Screw
42316687 Whirlpool Refrigerator Cabinet Trim
62313961S Whirlpool Refrigerator Cabinet Trim
72316857 Whirlpool Refrigerator Slide
72316858 Whirlpool Refrigerator Slide
8Cover, Hinge
9Seal, Side Trim
10W10133683 Whirlpool Refrigerator Cabinet Trim
11WP489464 Whirlpool Refrigerator Screw
122309230 Whirlpool Refrigerator Clip
122309231 Whirlpool Refrigerator Clip
13W11624204 Whirlpool Screw
142316899 Whirlpool Refrigerator Cover
152317078 Whirlpool Cover
16WPW10121451 Whirlpool Refrigerator Insert
