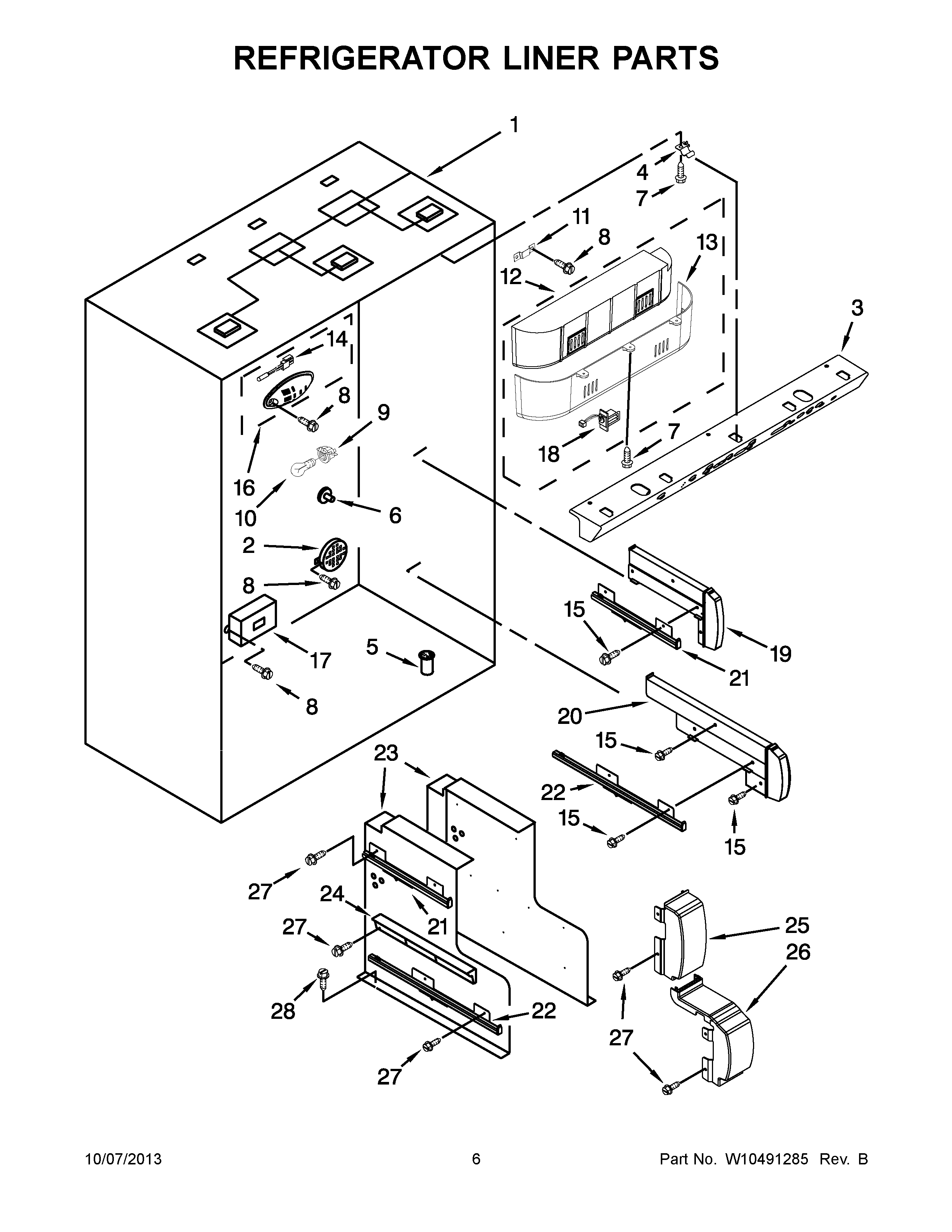

KBFO42FTX06 04 – REFRIGERATOR LINER PARTS

Products

Position	Product
1	CABINET (NOT A SERVICEABLE PART)
2	2317004 Whirlpool Refrigerator Air Cover
3	WPW10468946 Whirlpool Refrigerator Control Box
4	Clip, Control Box
5	WP2210509 Whirlpool Refrigerator Tub Valve
6	W11527119 Whirlpool Refrigerator Shelf Stud
7	WP8281163 Whirlpool Refrigerator Screw
8	WP488729 Whirlpool Refrigerator Door Screw
9	WPW10191429 Whirlpool Refrigerator Socket
10	WPA3073101 Whirlpool Light Bulb
11	Clip, Diffuser Cover
12	Diffuser Assembly
13	2320519 Whirlpool Refrigerator Cover
14	WP2188820 Whirlpool Refrigerator Thermistor
15	WP488163 Whirlpool Refrigerator Screw
16	WP2317844 Whirlpool Refrigerator Cover
17	DIFFUSER, CRISPER (COMPLETE)(2)
18	WP2221296 Whirlpool Air Baffle
19	Spacer, Crisper (Right)
19	Spacer, Crisper (Left)
20	Spacer, Deli (Left)
20	Spacer, Deli (Right)
21	2302953 Whirlpool Refrigerator Slide
21	2302952 Whirlpool Refrigerator Slide
22	2302957 Whirlpool Refrigerator Slide
22	2302956 Whirlpool Refrigerator Slide
23	Center Support (Left Half)
23	Center Support (Right Half)
24	2314054 Whirlpool Support Assembly
25	2309083 Whirlpool Cover Assembly
26	2318008 Whirlpool Divider
27	WPW10001160 Whirlpool Refrigerator Screw
28	WP8533928 Whirlpool Refrigerator Screw
