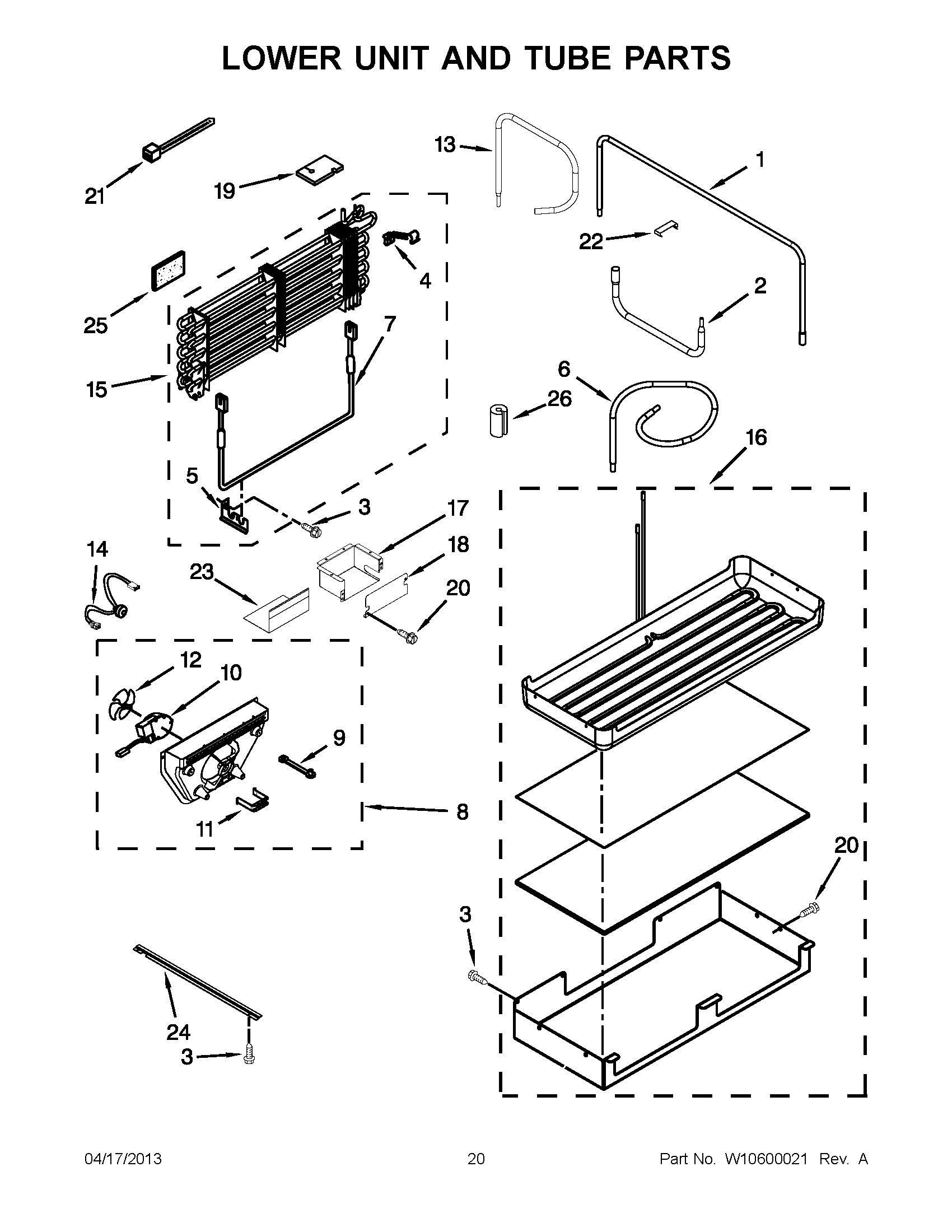

KBFO42FTX07 10 – LOWER UNIT AND TUBE PARTS

KBFO42FTX07 10 – LOWER UNIT AND TUBE PARTS

Written by

in

KBFO42FTX07 10 – LOWER UNIT AND TUBE PARTS

Products

PositionProduct
1Tube, Transition (Condenser)
2W10388653 Whirlpool Refrigerator Tube
3W11624204 Whirlpool Screw
4Clip, Heater
5Bracket, Mounting
6W10306442 Whirlpool Refrigerator Tube
7W10219166 Whirlpool Refrigerator Heater
8SCROLL ASSEMBLY
9GROMMET, MOTOR
10W11671461 Whirlpool Evaporator Motor
11W11671527 Whirlpool Retainer Assembly
12WP2169142 Whirlpool Fan Blade
13W10404239 Whirlpool Refrigerator Tube
14W10139165 Whirlpool Refrigerator Wire Harness
15W10195924 Whirlpool Refrigerator Evaporator
16WPW10281063 Whirlpool Refrigerator Heater Pan
17WIRE COVER BOTTOM
18WIRE BOX COVER
19Block, Evaporator
20WP489069 Whirlpool Compactor Screw
21WPW10339879 Whirlpool Wire Tie
22W10169509 Whirlpool Refrigerator Clip
23W10321050 Whirlpool Refrigerator Shield
242320554 Whirlpool Bracket
25W11553819 Whirlpool Refrigerator Insulation
26W11715935 Whirlpool Dampener
