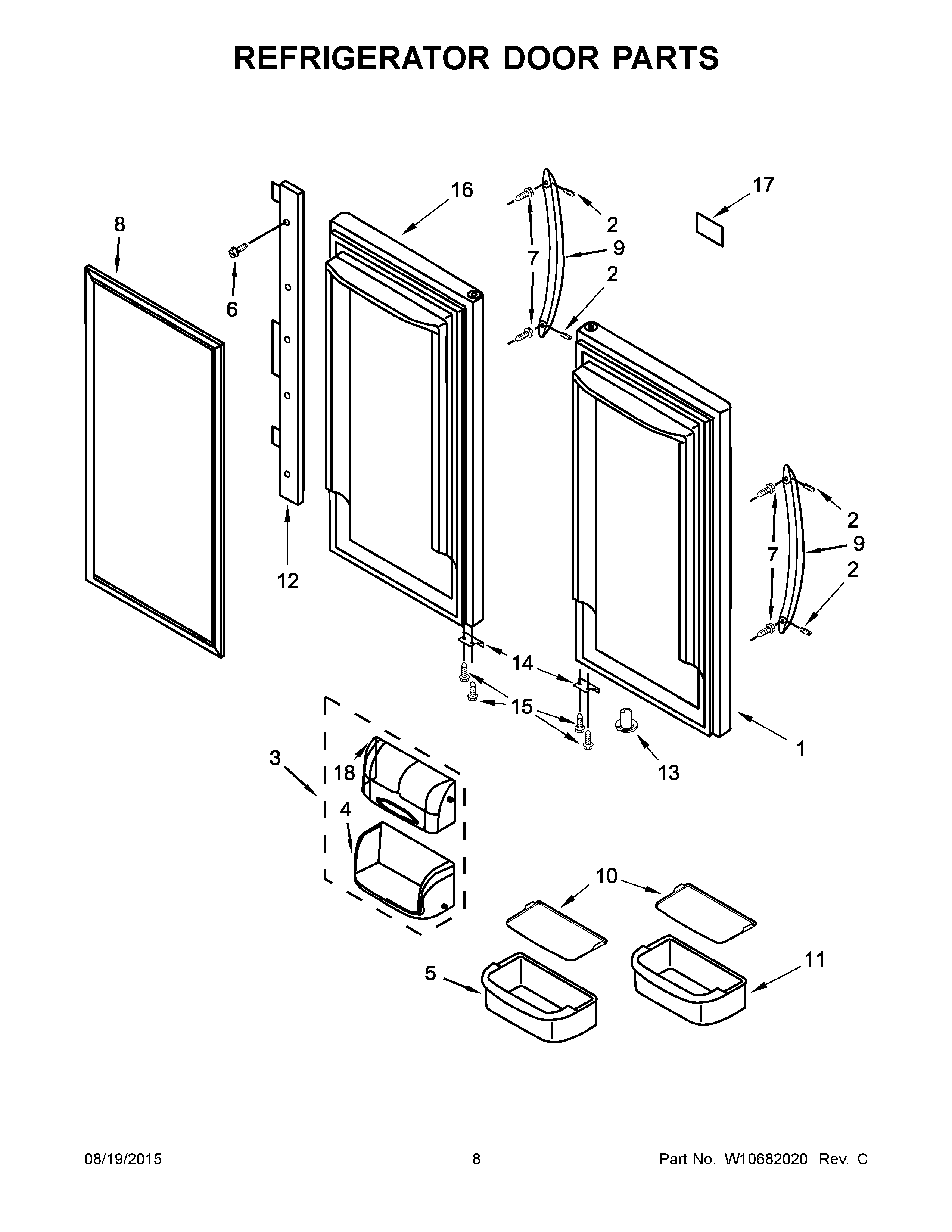

KBFS20ECBL00 05 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	13107881WQ Whirlpool Refrigerator DOR-FIP White
1B	13107881SQ Whirlpool Refrigerator DOR-FIP SS
1A	13107881BQ Whirlpool Refrigerator DOR Foam In Place Black
2	WP3400203 Whirlpool Screw
3	WP12744905 Whirlpool Refrigerator Compressor Door
4	WP67001279 Whirlpool Refrigerator Dairy Tray
5	WPW10371194 Whirlpool Refrigerator Door Shelf Bin Basket Bucket
6	W11311945 Whirlpool Refrigerator Screw
7	WPW10661886 Whirlpool Refrigerator Door Handle Screw
8B	GASKET-FIP
8A	GASKET-FIP
8	W10830189 Whirlpool Refrigerator Door Gasket
9B	WPW10586526 Whirlpool Refrigerator Handle
9	HANDLE, DOOR (WHITE)
9A	HANDLE, DOOR (BLACK)
10A	W11402028 Whirlpool Refrigerator Mat
10	WPW10450021 Whirlpool Refrigerator Mat
11	WPW10289497 Whirlpool Refrigerator Shelf Bin Basket Door
12	RAIL-MULLN WHITE
12B	WP12722803AP Whirlpool Refrigerator Mullion Rail
12A	WP12722803B Whirlpool Door Guide
13	WP67003638 Whirlpool Closing Cam
13A	WP67003639 Whirlpool Refrigerator Closer
13B	WP12028505AP Whirlpool Closing Cam
14A	W11708403 Whirlpool Door Stop
14B	W11703060 Whirlpool Door Stop
14	12968202W Whirlpool Refrigerator Door Stop
15	WP98165 Whirlpool Screw
16A	13107855BQ Whirlpool Refrigerator Black Foam In Place Doorack
16B	13107855SQ Whirlpool Refrigerator Door – FIP Stainless Steel
16	13107855WQ Whirlpool Refrigerator White FIP Door
17B	WPW10243391 Whirlpool Refrigerator Nameplate
17A	WPW10243392 Whirlpool Dishwasher Nameplate
17	WPW10243393 Whirlpool Dishwasher Nameplate
18	WP67003637 Whirlpool Dairy Door
