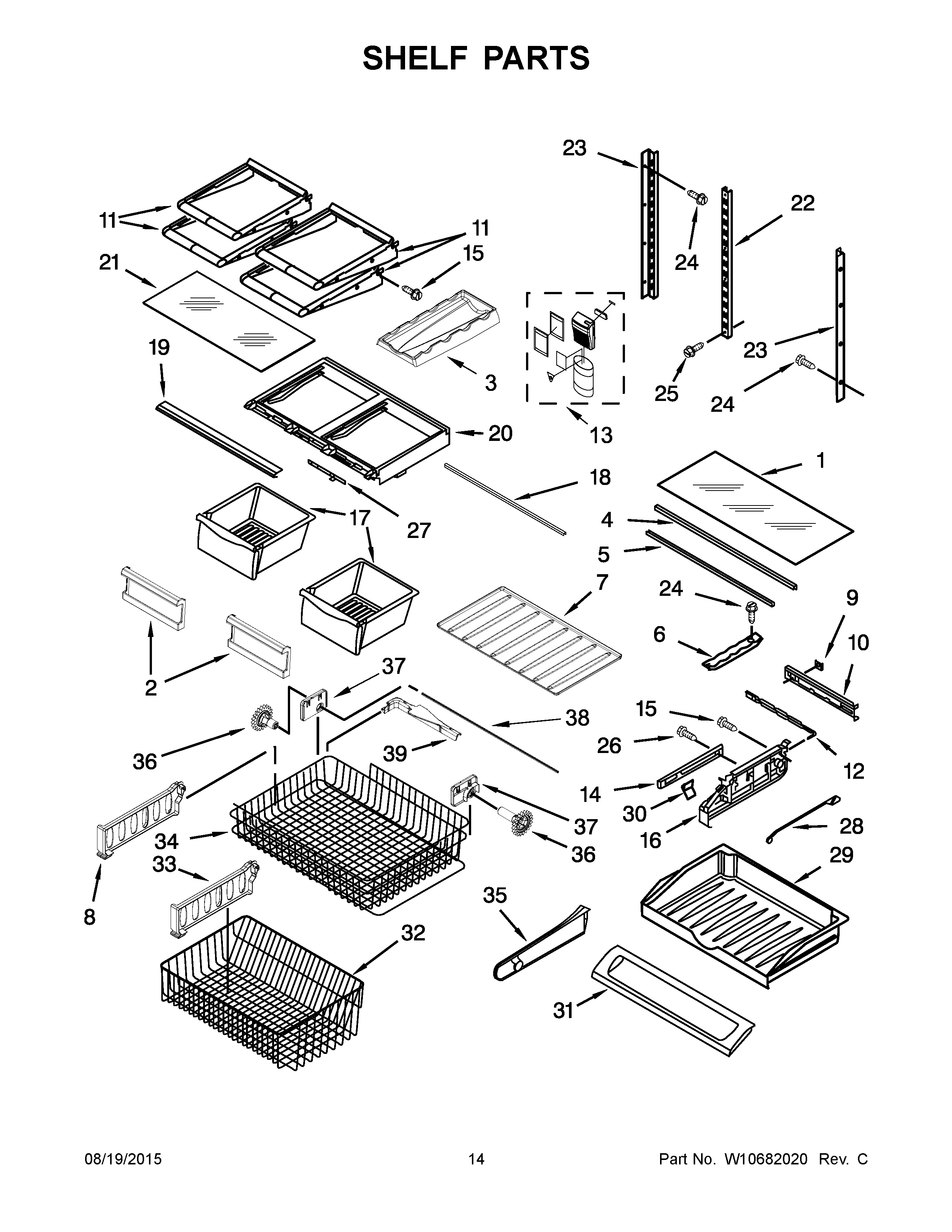

KBFS20ECBL00 08 – SHELF PARTS

KBFS20ECBL00 08 – SHELF PARTS

Written by

in

KBFS20ECBL00 08 – SHELF PARTS

Products

PositionProduct
1W11125512 Whirlpool Refrigerator Glass Shelf
2WP67005923 Whirlpool Refrigerator Front Cover
367001656 Whirlpool Refrigerator Bottle Trivet
4W11210956 Whirlpool Refrigerator Shelf Trim
5WP12227305WD Whirlpool Drawer Support
6WP67001719 Whirlpool Refrigerator Track
7WP12727304 Whirlpool Refrigerator Mat
8W10241046 Whirlpool Refrigerator Divider
967002329 Whirlpool Refrigerator Pantry Gasket
1012656202 Whirlpool Refrigerator Housing
11W11026424 Whirlpool Refrigerator Glass Shelf
12WP67003793 Whirlpool Refrigerator Temperature Slide
13ASSEMBLY, PRODUCE PRESERVER
14WPW10235370 Whirlpool Refrigerator Glide
15WP98165 Whirlpool Screw
16AWP12656018 Whirlpool Drawer Support
16WP12656105 Whirlpool Drawer Support
17WP67002659 Whirlpool Crisper Pan
18WP12227304WD Whirlpool Refrigerator Drawer Support
19WPW10231485 Whirlpool Refrigerator Shelf Trim
20WP67006185 Whirlpool Refrigerator Crisper Frame
21WP67006655 Whirlpool Refrigerator Crisper Glass Shelf
22W10273463 Whirlpool Refrigerator Ladder
23WPW10569182 Whirlpool Refrigerator Ladder
2467006425 Whirlpool Refrigerator Screw
25W10215666 Whirlpool Refrigerator Screw
26WP67006415 Whirlpool Refrigerator Screw
27SLIDE
2867003794 Whirlpool Refrigerator Temperature Control Bar
29W11490183 Whirlpool Refrigerator Utility Pan
30W11498983 Whirlpool Refrigerator Knob
31W10827015 Whirlpool Refrigerator Pantry Drawer Door Cover
32W10503185 Whirlpool Dishwasher Cutlery Basket
33W10150061 Whirlpool Refrigerator Divider
34W10348245 Whirlpool Refrigerator Freezer Basket
35WP67002321 Whirlpool Refrigerator Divider Panel
36AWPW10474715 Whirlpool Refrigerator Gear
36WPW10474716 Whirlpool Refrigerator Gear
37W10348259 Whirlpool Refrigerator Bracket Assembly
37AW10348260 Whirlpool Refrigerator Bracket
38W11173556 Whirlpool Refrigerator Shaft
39W10149389 Whirlpool Refrigerator Handle
