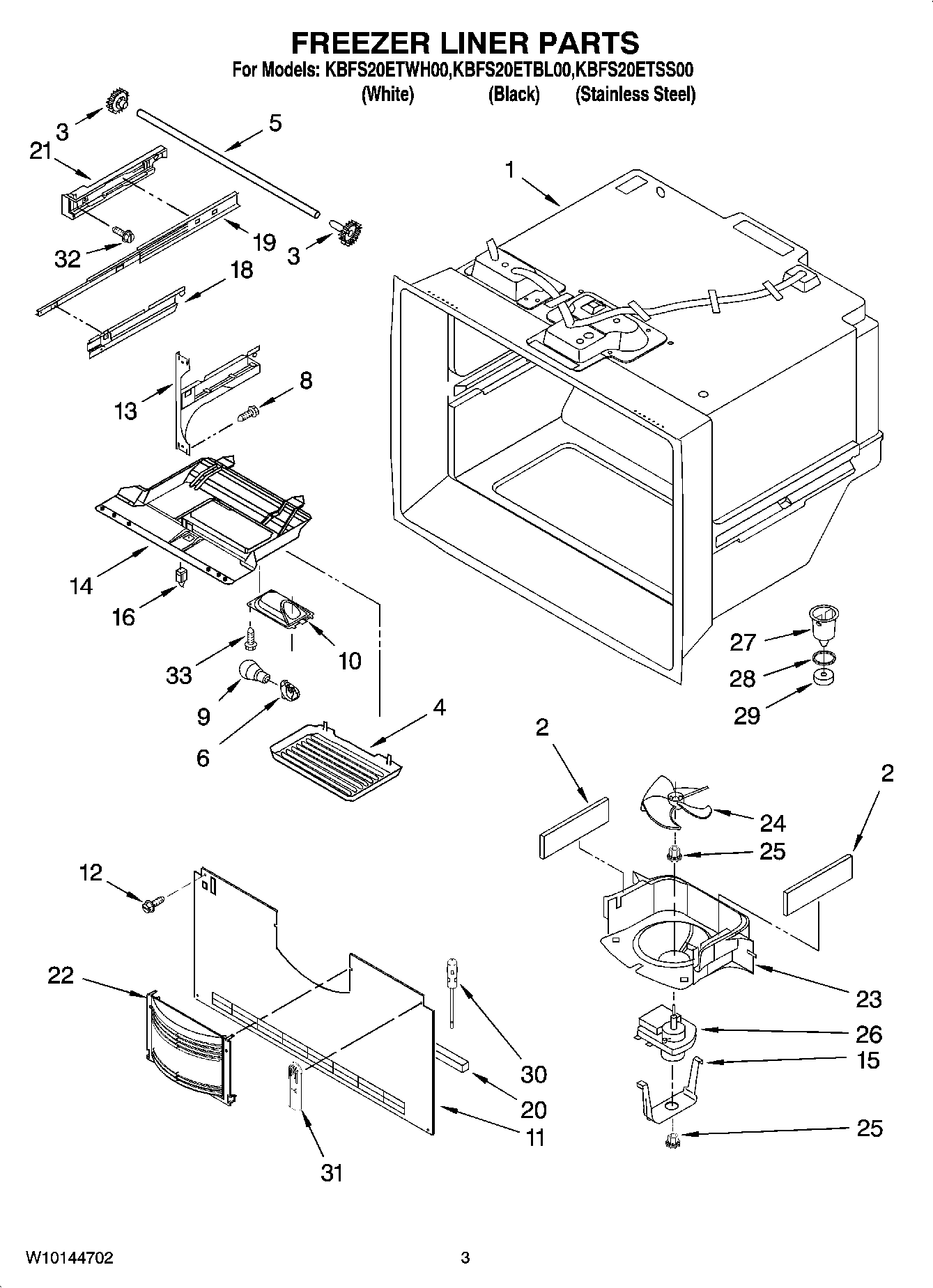

KBFS20ETBL00 02 – FREEZER LINER PARTS

Products

PositionProduct
1Liner (Not A Seviceable Part)
2W10856123 Whirlpool Refrigerator Gasket
312002497 Whirlpool Refrigerator Drawer Gear Kit
4Cover, Light
5W11028221 Whirlpool Refrigerator Shaft
6W11447232 Whirlpool Refrigerator Socket
8WP98165 Whirlpool Screw
9W11679940 Whirlpool Refrigerator Light Bulb Assembly
10Housing, Light
11W11727809 Whirlpool Evaporator Cover
1267006425 Whirlpool Refrigerator Screw
13WPW10330991 Whirlpool Refrigerator Bracket
13WPW10330993 Whirlpool Refrigerator Bracket
1467003906 Whirlpool Refrigerator Control Module
15WP67005633 Whirlpool Refrigerator Bracket
16W11396033 Whirlpool Refrigerator Rocker Switch
18W10251557 Whirlpool Refrigerator Bracket
19Slide, Drawer (2)
20W11451451 Whirlpool Refrigerator Gasket
21W10284690 Whirlpool Refrigerator Bracket
21Adapter, Slide (Right)
22WPW10175909 Whirlpool Grille Assembly
23Shroud, Evap.Fan
24WP2169142 Whirlpool Fan Blade
25WP67002780 Whirlpool Refrigerator Grommet
26WPW10128551 Whirlpool Evaporator Fan Motor
27W10815413 Whirlpool Refrigerator Funnel
28WPM0500703 Whirlpool Refrigerator O-Ring Seal
29WPB8381501 Whirlpool Refrigerator Door Gasket
3012002355 Whirlpool Refrigerator Thermistor Kit
31WP67003924 Whirlpool Refrigerator Cover
32WP489474 Whirlpool Refrigerator Screw
33Harness, Damper Control
33W10709797 Whirlpool Refrigerator Screw
33Following Parts Not Illustrated
