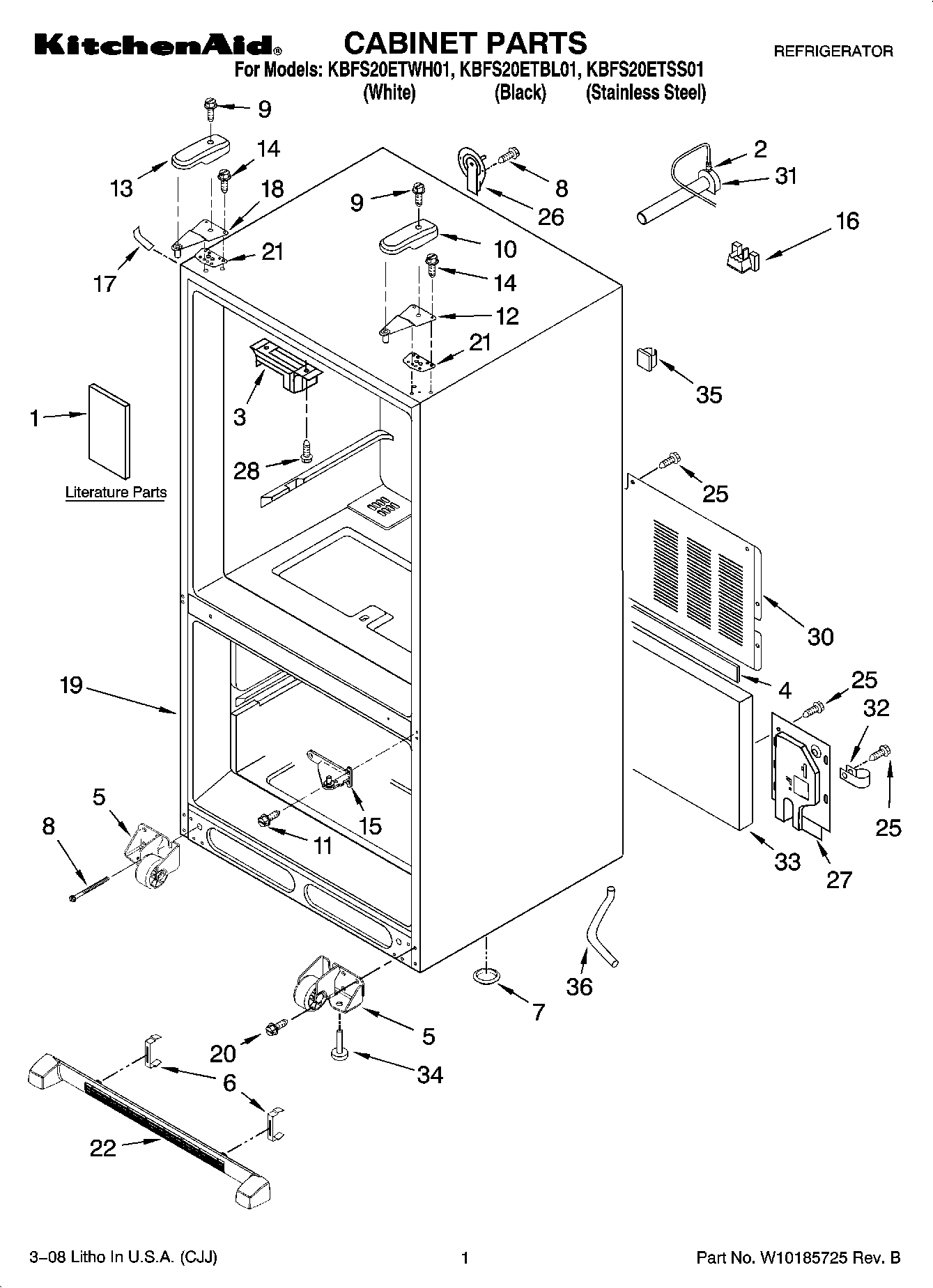

KBFS20ETWH01 01 – CABINET PARTS

KBFS20ETWH01 01 – CABINET PARTS

Written by

in

KBFS20ETWH01 01 – CABINET PARTS

Products

PositionProduct
1Tech Sheet
1Owners Manual
1Tag, Energy
2WPM0114003 Whirlpool Microwave Speed Clip Clamp
3WP67003405 Whirlpool Pivot Block
4Gasket
5WPW10515763 Whirlpool Refrigerator Cabinet Roller
5WPW10515762 Whirlpool Refrigerator Cabinet Roller
6Clip, Grille
7A3076901 Whirlpool Refrigerator Plug
871003131 Whirlpool Oven Screw
9WP8281196 Whirlpool Screw
10Cover, Right Hinge (White)
10Cover, Right Hinge (Black)
11WP67006380 Whirlpool Screw
12WP12566606ED Whirlpool Refrigerator Door Hinge
13Cover, Left Hinge (White)
13Cover, Left Hinge (Black)
14WP489349 Whirlpool Refrigerator Screw
15HINGE, CENTER RIGHT HAND (WHITE)
15W10918113 Whirlpool Refrigerator Door Hinge
1567006442 Whirlpool Refrigerator Center Hinge (LT-BLK)
15W10918164 Whirlpool Refrigerator Door Hinge
16WP12777701 Whirlpool Refrigerator Filler Block
1767003484 Whirlpool Refrigerator White Corner Cover
1767003485 Whirlpool Refrigerator Corner Cover (Black)
18WP12566607ED Whirlpool Refrigerator Door Hinge
19Cabinet, (Not A Serviceable Part)
2067006564 Whirlpool Refrigerator Screw
21Shim, Hinge
22Grille Assembly (Includes Clips) (White)
22WPW10131134 Whirlpool Refrigerator Front Grille
2567006425 Whirlpool Refrigerator Screw
2612726003 Whirlpool Refrigerator Water Cover
27Cover, Water Valve
28WP7101P126-60 Whirlpool Screw
30Cover, Unit
31W11176463 Whirlpool Refrigerator Water Tube
3267001067 Whirlpool Refrigerator Drain Tube Clip
3367003796 Whirlpool Refrigerator Fiber Acoustic
34WPW10141622 Whirlpool Leveler
35WPM0104106 Whirlpool Refrigerator Clip
36W10164397 Whirlpool Refrigerator Drain Tube
