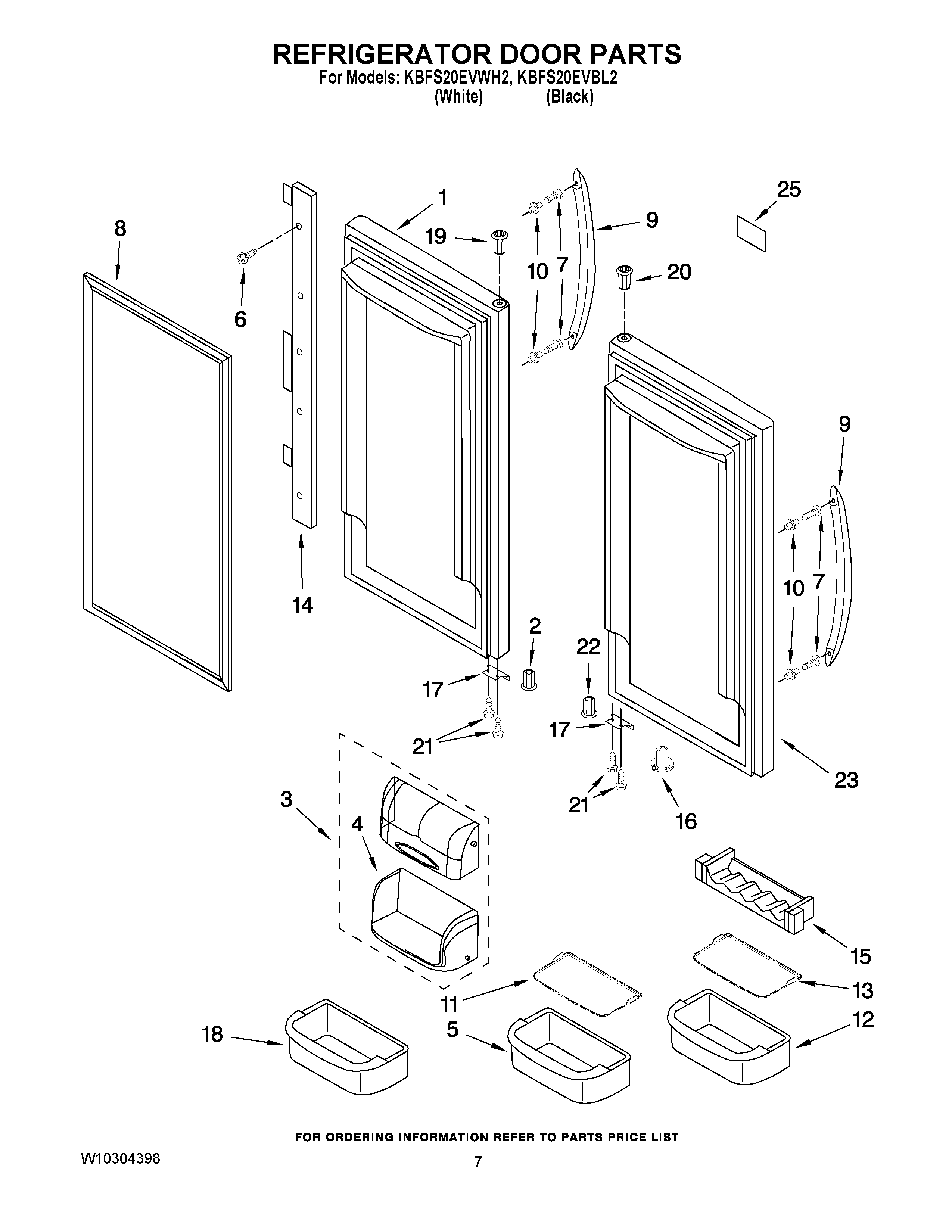

KBFS20EVBL2 04 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	Door, Refrigerator (Black)
1	Door, Refrigerator (White)
3	WP12744905 Whirlpool Refrigerator Compressor Door
4	WP67001279 Whirlpool Refrigerator Dairy Tray
6	W11311945 Whirlpool Refrigerator Screw
7	WP3387230 Whirlpool Screw
8	W10830189 Whirlpool Refrigerator Door Gasket
8	GASKET-FIP
9	Handle, Door (Black)
9	WPW10314515 Whirlpool Refrigerator Handle
10	MOUNT, HANDLE
11	WPW10450021 Whirlpool Refrigerator Mat
12	WPW10289498 Whirlpool Refrigerator Cantilever Bin
13	W11402028 Whirlpool Refrigerator Mat
14	RAIL-MULLN WHITE
14	WP12722803B Whirlpool Door Guide
15	WP67005626 Whirlpool Refrigerator Can Caddy
16	WP67003639 Whirlpool Refrigerator Closer
16	WP67003638 Whirlpool Closing Cam
17	W11708403 Whirlpool Door Stop
17	12968202W Whirlpool Refrigerator Door Stop
18	WPW10371195 Whirlpool Refrigerator Cantilever Bin
19	WP67002721 Whirlpool Refrigerator Door Bushing
19	67002722 Whirlpool Refrigerator White Door Bushing
20	WP67004977 Whirlpool Refrigerator Door Hinge Bushing
20	67004978 Whirlpool Refrigerator Black Door Bushing
21	WP98165 Whirlpool Screw
22	12028601W Whirlpool Refrigerator Hinge Bushing
22	WP67002731 Whirlpool Refrigerator Door Bushing
23	WPL 13024047BQ
23	WPL 13024047WQ
25	WPW10243393 Whirlpool Dishwasher Nameplate
25	WPW10243392 Whirlpool Dishwasher Nameplate
