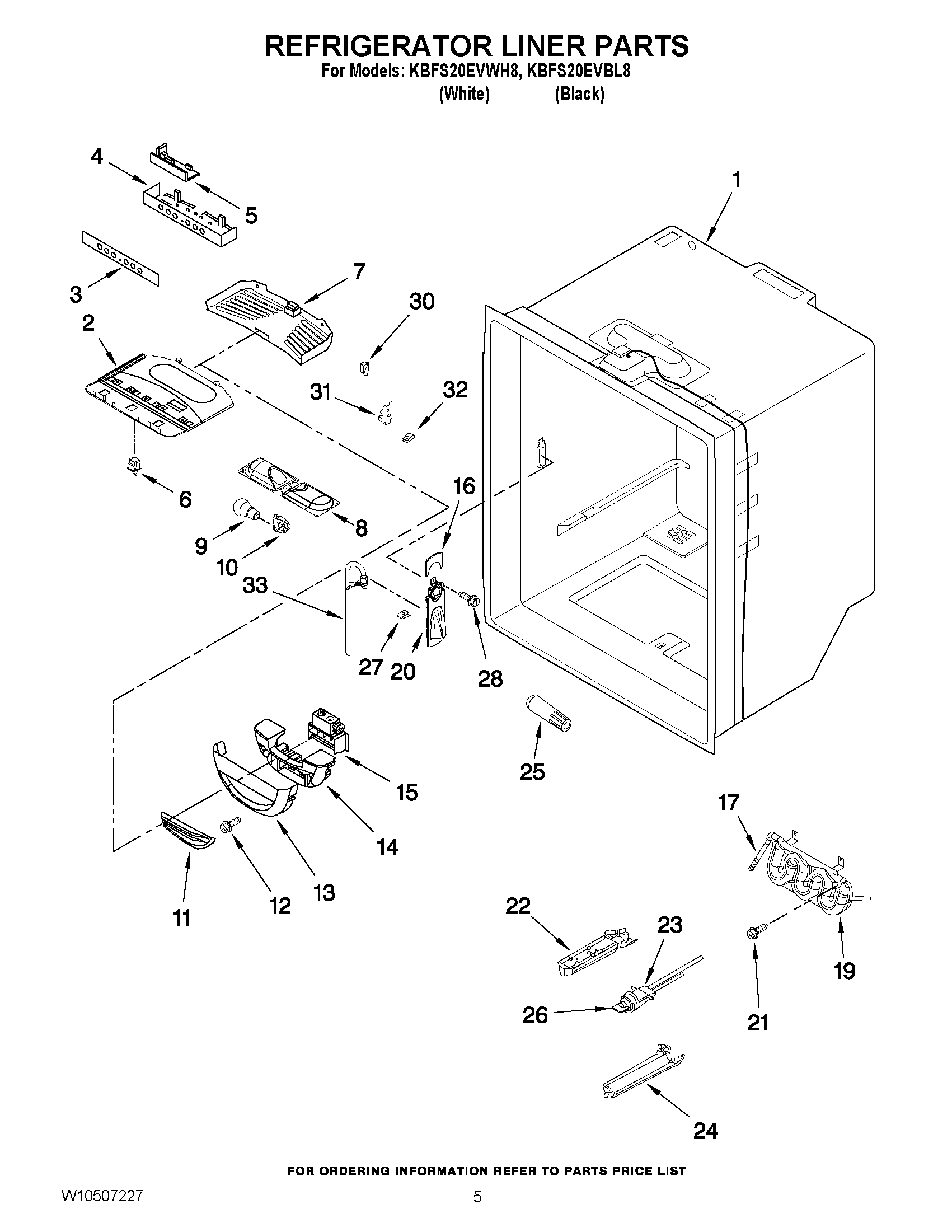

KBFS20EVBL8 03 – REFRIGERATOR LINER PARTS

Products

Position	Product
NI	WPW10224292 Whirlpool Refrigerator Wire Harness
1	CABINET (NOT A SERVICEABLE PART)
2	MODULE, LIGHT
3	WPW10317125 Whirlpool Refrigerator Overlay
4	W11416469 Whirlpool Refrigerator Housing
5	WPW10428901-includeCORE Whirlpool WPW10428901 Refrigerator Electronic Control Board + Core
6	W11384469 Whirlpool Door Switch
7	W11284721 Whirlpool Refrigerator Cover
8	W10443023 Whirlpool Refrigerator Housing
9	W11679940 Whirlpool Refrigerator Light Bulb Assembly
10	W11447232 Whirlpool Refrigerator Socket
11	67003900 Whirlpool Refrigerator Insert Damper Cover
12	WP400021-1 Whirlpool Screw
13	WP12806701 Whirlpool Refrigerator Box Cover
14	INSULATION
15	CONTROL DAMPER
16	W11519867 Whirlpool Refrigerator Cover
17	WP2300868 Whirlpool Refrigerator Fitting
19	W11229977 Whirlpool Refrigerator Reservoir
20	FACADE, DISP.
21	WP67006415 Whirlpool Refrigerator Screw
22	PLATE-FIL
23	W11346623 Whirlpool Refrigerator Water Filter Head
24	WP12568001 Whirlpool Filter Cover
25	everydropÂ® Filter 4 EDR4RXD1 Whirlpool Refrigerator Water
26	W11395888 Whirlpool Refrigerator Bypass Filter Cap
27	W10819546 Whirlpool Refrigerator Clip
28	67006425 Whirlpool Refrigerator Screw
30	WP12575501 Whirlpool Refrigerator Micro Switch
31	12707303SP Whirlpool Refrigerator Plate
32	67002816 Whirlpool Refrigerator Waterline Clip
33	W11677725 Whirlpool Refrigerator Guide
