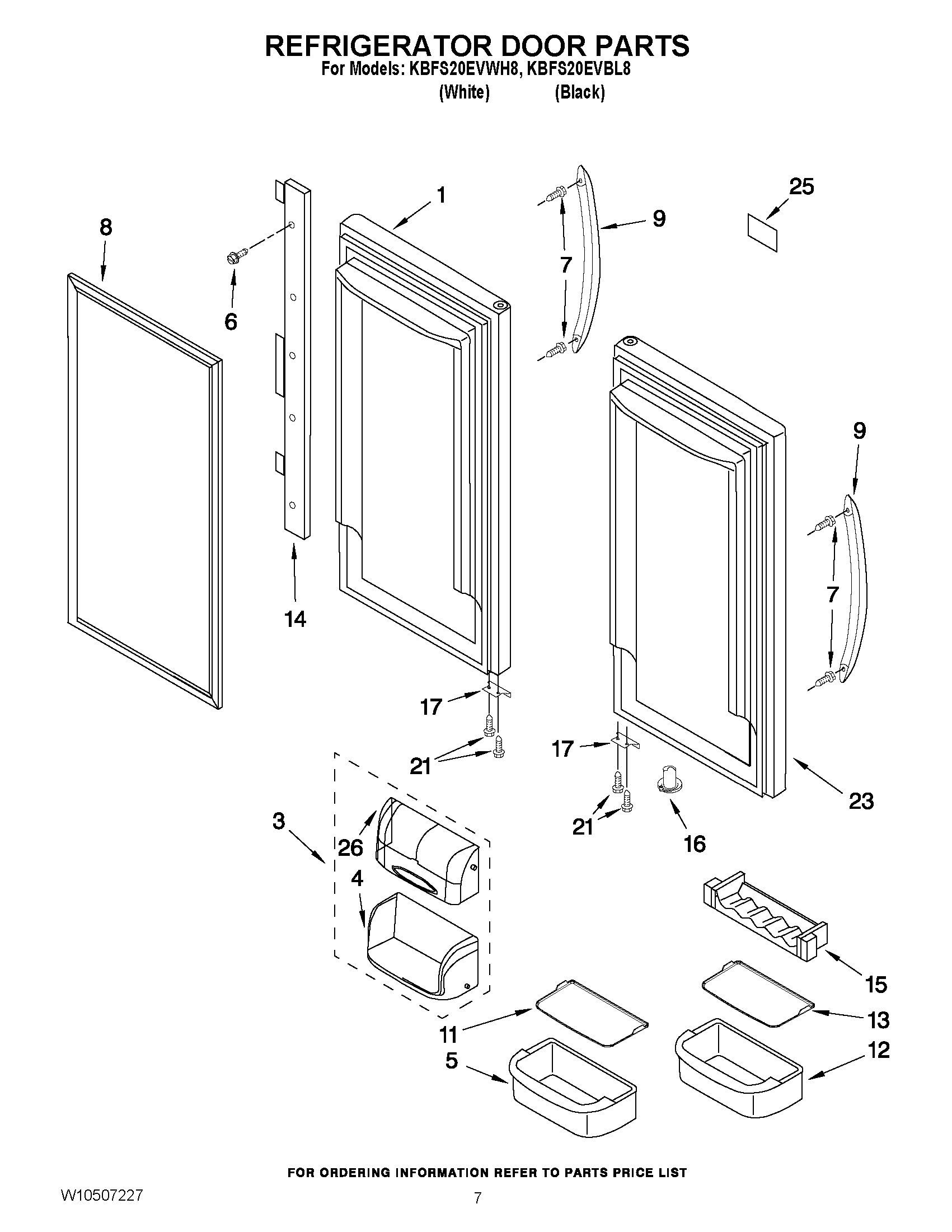

KBFS20EVBL8 04 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	DOOR, LEFT (WHITE)
1	DOOR, LEFT (BLACK)
3	WP12744905 Whirlpool Refrigerator Compressor Door
4	WP67001279 Whirlpool Refrigerator Dairy Tray
5	WPW10371195 Whirlpool Refrigerator Cantilever Bin
6	W11311945 Whirlpool Refrigerator Screw
7	WPW10661886 Whirlpool Refrigerator Door Handle Screw
8	GASKET-FIP
8	W10830189 Whirlpool Refrigerator Door Gasket
9	WPW10314515 Whirlpool Refrigerator Handle
9	HANDLE, DOOR (BLACK)
11	WPW10450021 Whirlpool Refrigerator Mat
12	WPW10289498 Whirlpool Refrigerator Cantilever Bin
13	W11402028 Whirlpool Refrigerator Mat
14	RAIL-MULLN WHITE
14	WP12722803B Whirlpool Door Guide
15	WP67005626 Whirlpool Refrigerator Can Caddy
16	WP67003638 Whirlpool Closing Cam
16	WP67003639 Whirlpool Refrigerator Closer
17	12968202W Whirlpool Refrigerator Door Stop
17	W11708403 Whirlpool Door Stop
21	WP98165 Whirlpool Screw
23	DOOR, RIGHT (BLACK)
23	DOOR, RIGHT (WHITE)
25	WPW10243392 Whirlpool Dishwasher Nameplate
25	WPW10243393 Whirlpool Dishwasher Nameplate
26	WP67003637 Whirlpool Dairy Door
