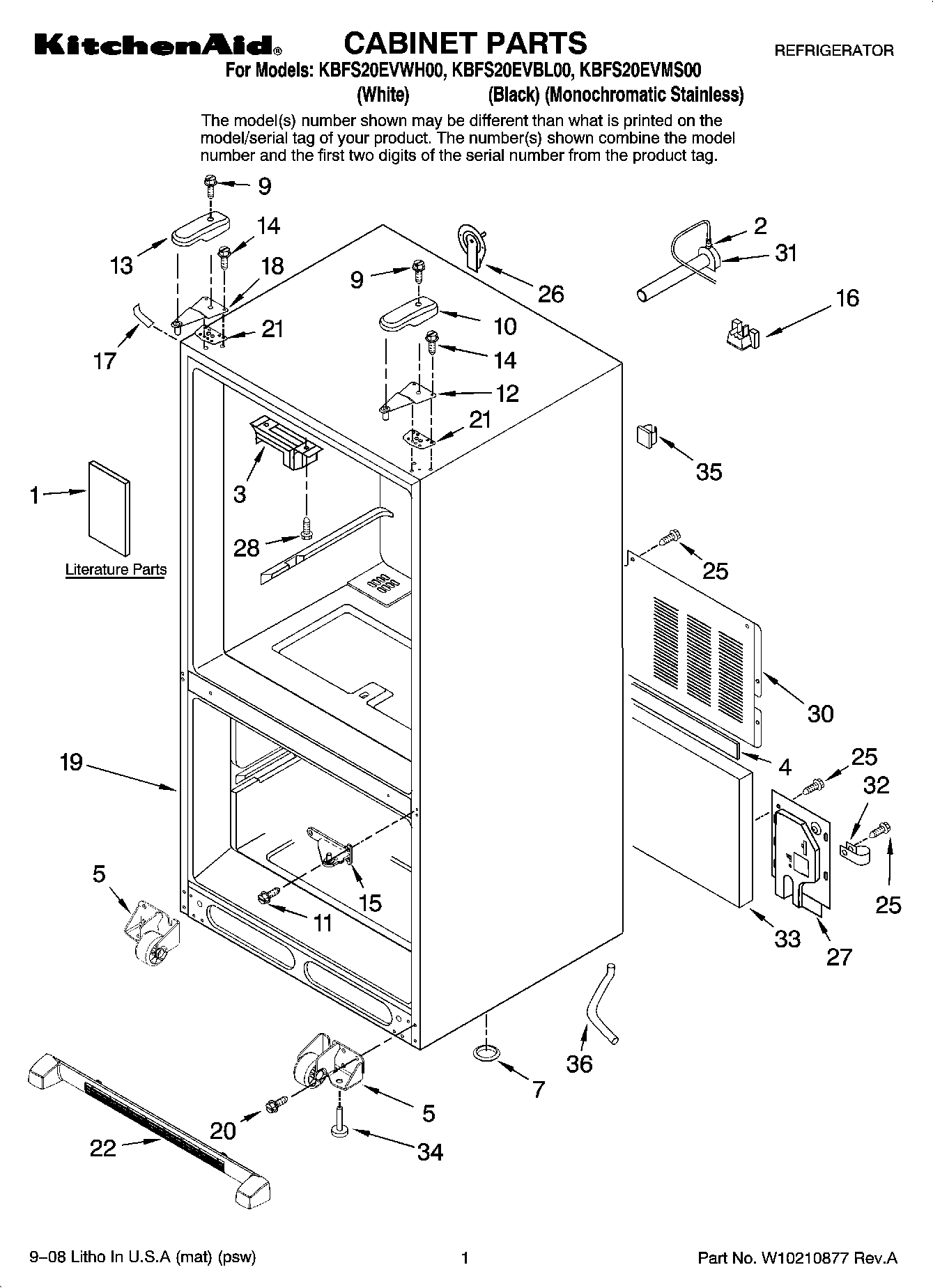

KBFS20EVMS00 01 – CABINET PARTS

KBFS20EVMS00 01 – CABINET PARTS

Written by

in

KBFS20EVMS00 01 – CABINET PARTS

Products

PositionProduct
1Tech Sheet
1Energy Guide
1Owners Manual
2WPM0114003 Whirlpool Microwave Speed Clip Clamp
3WP67003405 Whirlpool Pivot Block
4Gasket
5WPW10515763 Whirlpool Refrigerator Cabinet Roller
5WPW10515762 Whirlpool Refrigerator Cabinet Roller
7A3076901 Whirlpool Refrigerator Plug
9WP8281196 Whirlpool Screw
10Cover, Hinge (RC) (White)
10Cover, Hinge (RC) (Black)
10COVER, RIGHT HINGE
11WP67006380 Whirlpool Screw
1212626910ED Whirlpool Refrigerator Door Hinge
13W10217487 Whirlpool Refrigerator Cover
13W10217485 Whirlpool Refrigerator Cover
13Cover, Left Hinge (White)
14WP489349 Whirlpool Refrigerator Screw
1512655102AP Whirlpool Refrigerator Door Hinge
1512655103ED Whirlpool Door Hinge
16WP12777701 Whirlpool Refrigerator Filler Block
17WP12587703AP Whirlpool Refrigerator Filler
1767003485 Whirlpool Refrigerator Corner Cover (Black)
1767003484 Whirlpool Refrigerator White Corner Cover
1812626911ED Whirlpool Refrigerator Door Hinge
19Cabinet, (Not A Serviceable Part)
2067006564 Whirlpool Refrigerator Screw
21Shim, Hinge
22WPW10131134 Whirlpool Refrigerator Front Grille
22Grille Assembly (Includes Clips) (White)
22WPW10534155 Whirlpool Refrigerator Kickplate Grille Gray
2567006425 Whirlpool Refrigerator Screw
2612726003 Whirlpool Refrigerator Water Cover
27Cover, Water Valve
28WP7101P126-60 Whirlpool Screw
30Cover, Unit
31W11176463 Whirlpool Refrigerator Water Tube
32Clip, Drain Tube
3367003796 Whirlpool Refrigerator Fiber Acoustic
34WPW10141622 Whirlpool Leveler
35WPM0104106 Whirlpool Refrigerator Clip
36W10164397 Whirlpool Refrigerator Drain Tube
