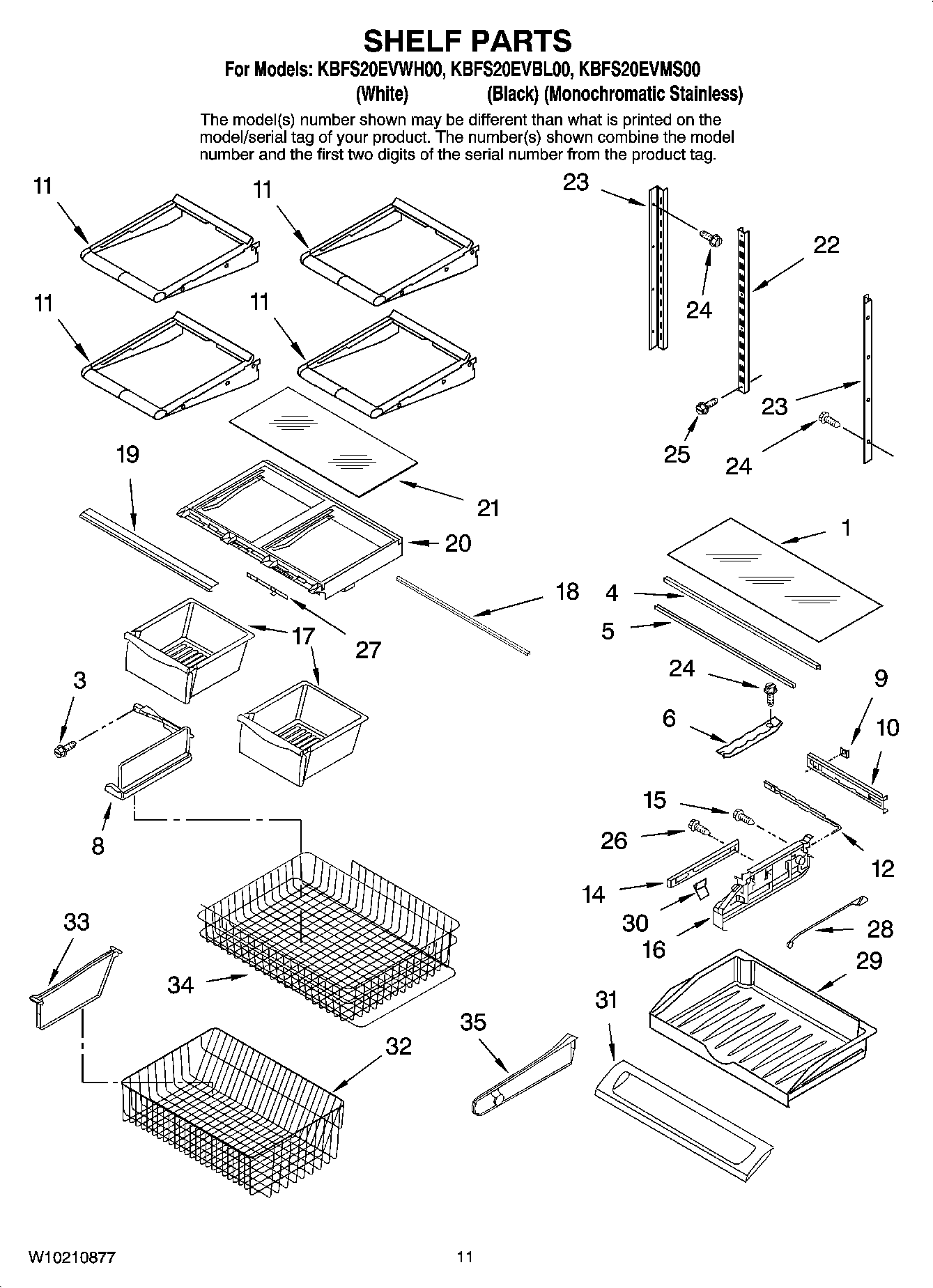

KBFS20EVMS00 06 – SHELF PARTS

KBFS20EVMS00 06 – SHELF PARTS

Written by

in

KBFS20EVMS00 06 – SHELF PARTS

Products

PositionProduct
1WP67002332 Whirlpool Refrigerator Glass Pan
3Screw
4WP67006010 Whirlpool Refrigerator Shelf Trim
5WP12227305WD Whirlpool Drawer Support
6WP67001719 Whirlpool Refrigerator Track
8Divider, Upper Basket
967002329 Whirlpool Refrigerator Pantry Gasket
1012656202 Whirlpool Refrigerator Housing
11WP12463911 Whirlpool Refrigerator Glass Shelf
12WP67003793 Whirlpool Refrigerator Temperature Slide
14WPW10235370 Whirlpool Refrigerator Glide
15WP98165 Whirlpool Screw
16WP12656018 Whirlpool Drawer Support
16WP12656105 Whirlpool Drawer Support
17WPW10143396 Whirlpool Refrigerator Crisper Pan
18WP12227304WD Whirlpool Refrigerator Drawer Support
19Trim, Crisper
20WP67006185 Whirlpool Refrigerator Crisper Frame
21WP67006655 Whirlpool Refrigerator Crisper Glass Shelf
2267001073 Whirlpool Refrigerator Center Ladder
2367002489 Whirlpool Refrigerator Ladder L/R Side
2467006425 Whirlpool Refrigerator Screw
25W10709795 Whirlpool Refrigerator Screw
26WP67006415 Whirlpool Refrigerator Screw
27SLIDE
2867003794 Whirlpool Refrigerator Temperature Control Bar
29W11490183 Whirlpool Refrigerator Utility Pan
30W11498983 Whirlpool Refrigerator Knob
31WP67005930 Whirlpool Refrigerator Pantry Drawer Front Lid
32W10503185 Whirlpool Dishwasher Cutlery Basket
33W10150061 Whirlpool Refrigerator Divider
34W10348245 Whirlpool Refrigerator Freezer Basket
35WP67002321 Whirlpool Refrigerator Divider Panel
