KBFS20EVMS11 04 – REFRIGERATOR DOOR PARTS

KBFS20EVMS11 04 – REFRIGERATOR DOOR PARTS

Written by

in

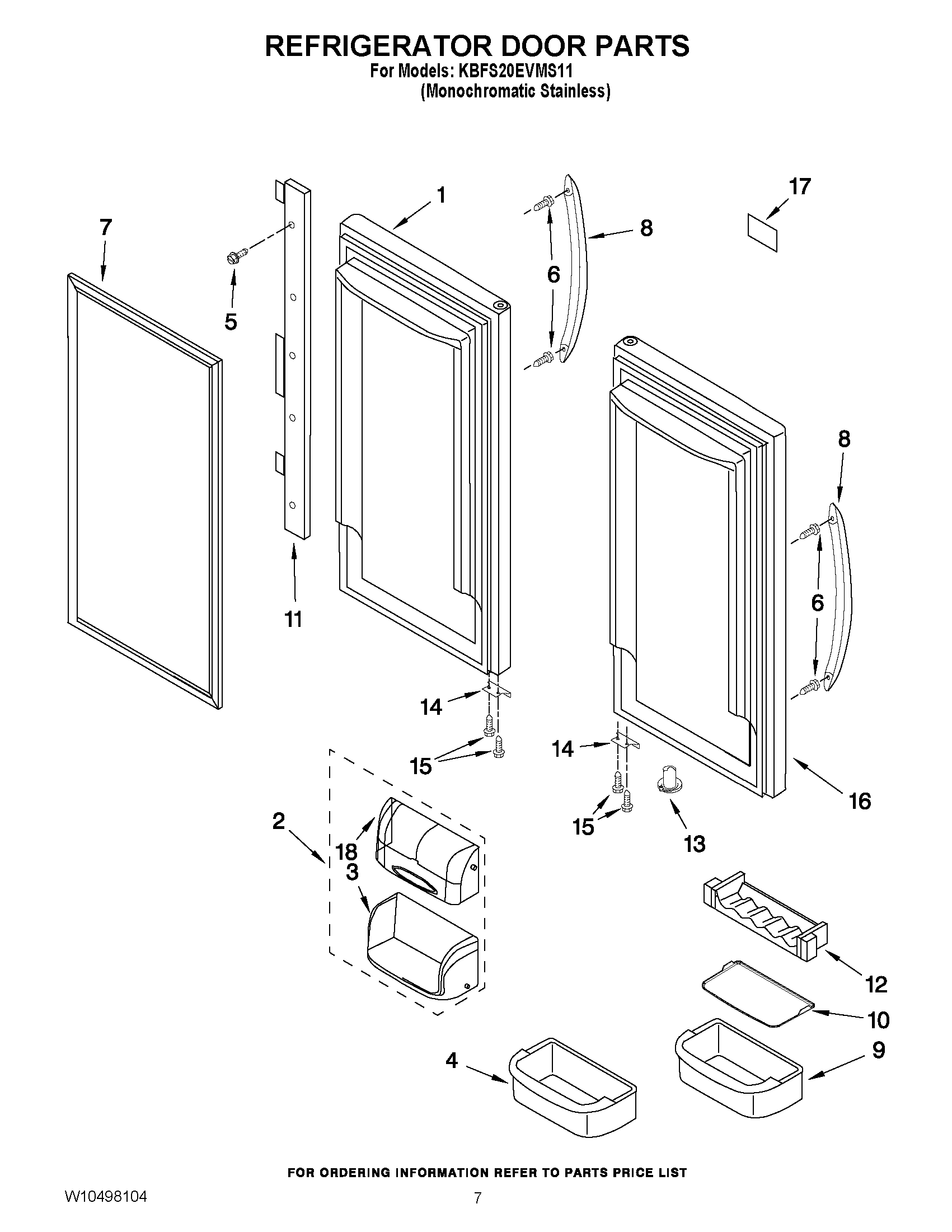

KBFS20EVMS11 04 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1DOOR, REFRIGERATOR (LEFT) (STAINLESS)
2WP12744905 Whirlpool Refrigerator Compressor Door
3WP67001279 Whirlpool Refrigerator Dairy Tray
4WPW10371195 Whirlpool Refrigerator Cantilever Bin
5W11311945 Whirlpool Refrigerator Screw
6WPW10661886 Whirlpool Refrigerator Door Handle Screw
7GASKET-FIP
8WPW10314517K Whirlpool Refrigerator Handle
9WPW10289498 Whirlpool Refrigerator Cantilever Bin
10W11402028 Whirlpool Refrigerator Mat
11WP12722803AP Whirlpool Refrigerator Mullion Rail
12WP67005626 Whirlpool Refrigerator Can Caddy
13WP12028505AP Whirlpool Closing Cam
14W11401472 Whirlpool Refrigerator Door Stop
15WP98165 Whirlpool Screw
16DOOR, RIGHT (STAINLESS)
17WPW10243391 Whirlpool Refrigerator Nameplate
18WP67003637 Whirlpool Dairy Door
