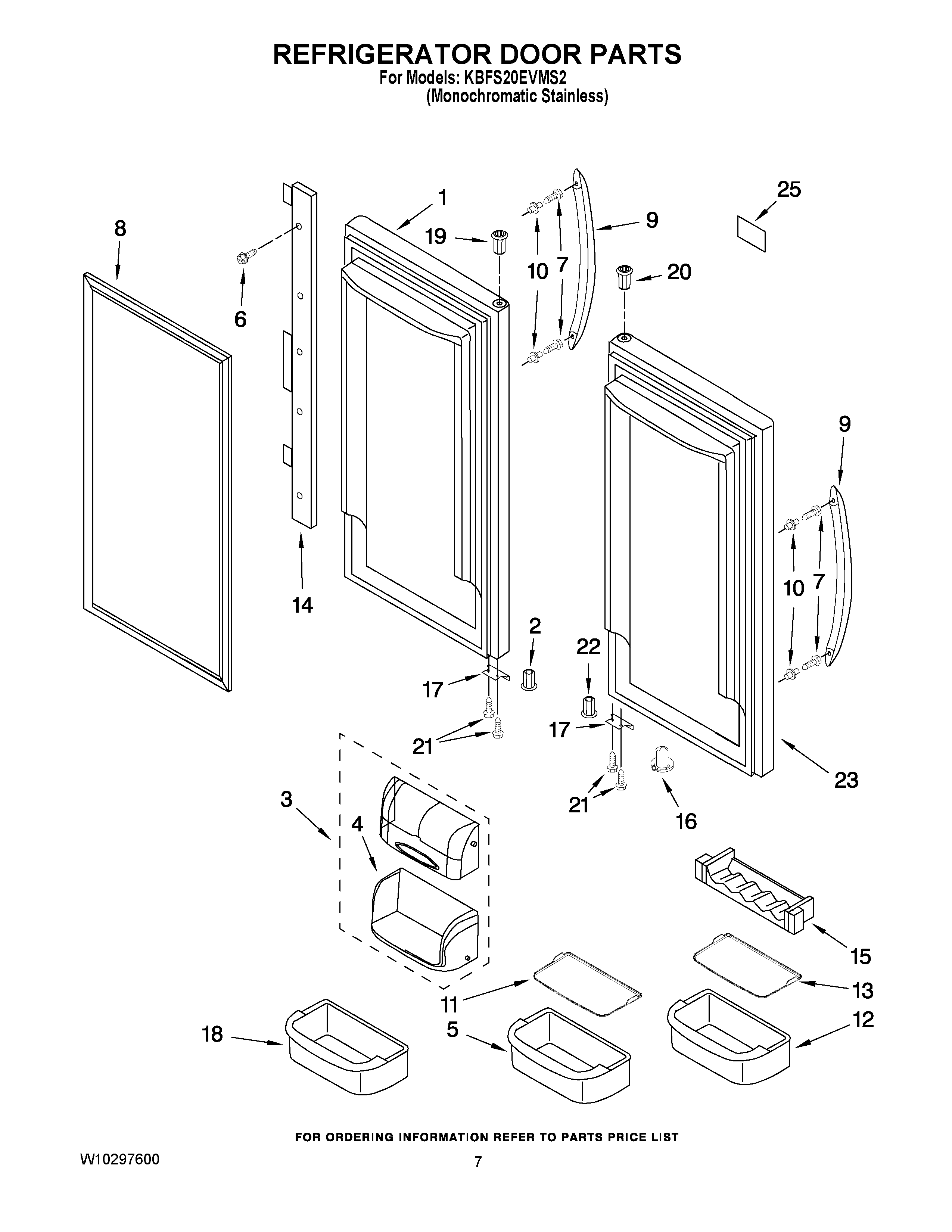

KBFS20EVMS2 04 – REFRIGERATOR DOOR PARTS

KBFS20EVMS2 04 – REFRIGERATOR DOOR PARTS

Written by

in

KBFS20EVMS2 04 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1DOOR, REFRIGERATOR (LEFT) (STAINLESS)
3WP12744905 Whirlpool Refrigerator Compressor Door
4WP67001279 Whirlpool Refrigerator Dairy Tray
6W11311945 Whirlpool Refrigerator Screw
7WP3387230 Whirlpool Screw
8GASKET-FIP
9WPW10314517K Whirlpool Refrigerator Handle
10MOUNT, HANDLE
11WPW10450021 Whirlpool Refrigerator Mat
12WPW10289498 Whirlpool Refrigerator Cantilever Bin
13W11402028 Whirlpool Refrigerator Mat
14WP12722803AP Whirlpool Refrigerator Mullion Rail
15WP67005626 Whirlpool Refrigerator Can Caddy
16WP12028505AP Whirlpool Closing Cam
17W11401472 Whirlpool Refrigerator Door Stop
18WPW10371195 Whirlpool Refrigerator Cantilever Bin
19BUSHING, DOOR (BOTTOM LEFT)
2010961006AP Whirlpool Refrigerator Hinge Bushing
21WP98165 Whirlpool Screw
22W10853652 Whirlpool Refrigerator Hinge Bushing
23DOOR, RIGHT (STAINLESS)
25NAMEPLATE
