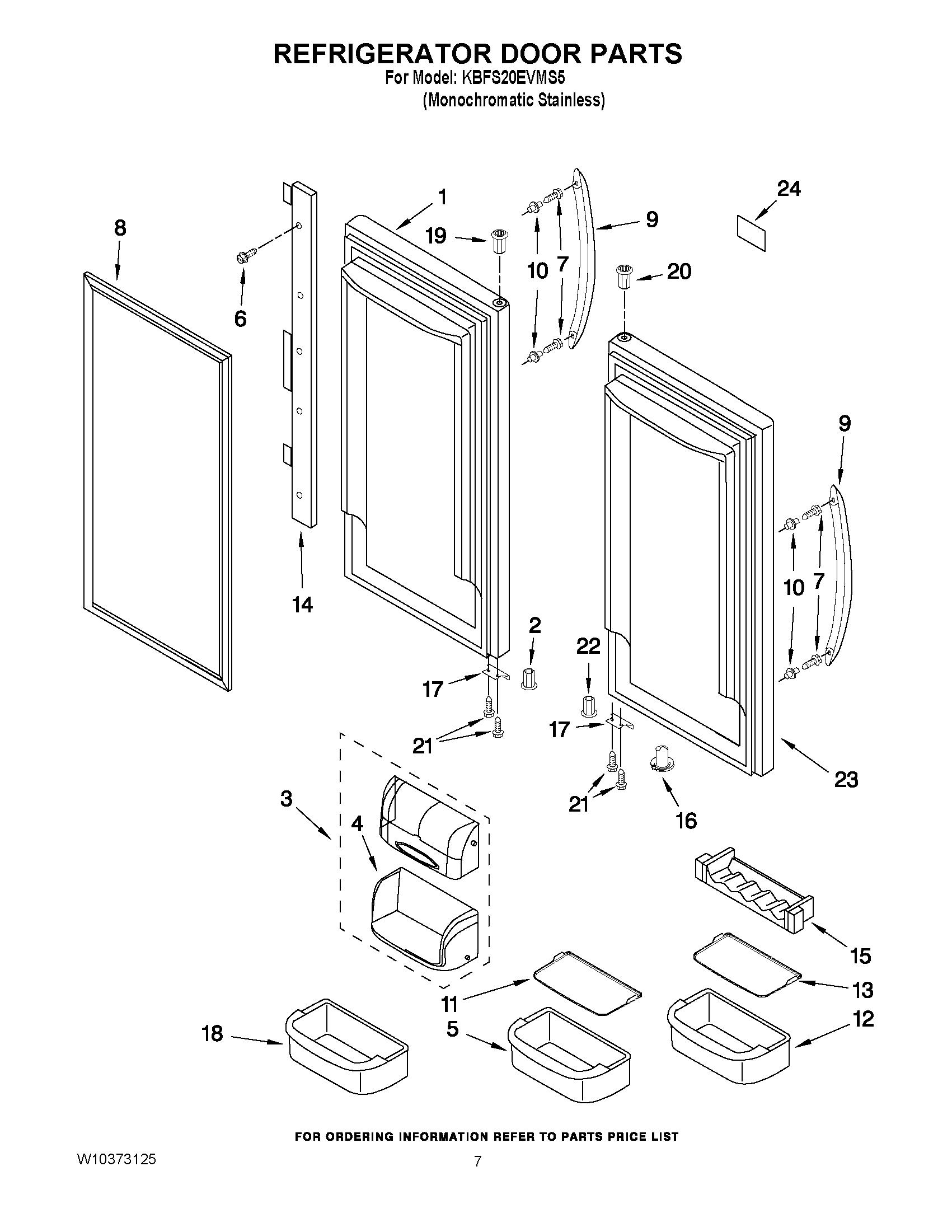

KBFS20EVMS5 04 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1DOOR, REFRIGERATOR (LEFT) (STAINLESS)
2BUSHING, DOOR (BOTTOM LEFT)
3WP12744905 Whirlpool Refrigerator Compressor Door
4WP67001279 Whirlpool Refrigerator Dairy Tray
6W11311945 Whirlpool Refrigerator Screw
7SCREW
8GASKET-FIP
9WPW10314517K Whirlpool Refrigerator Handle
10WP67006113 Whirlpool Stud Bolt
11WPW10450021 Whirlpool Refrigerator Mat
12WPW10289498 Whirlpool Refrigerator Cantilever Bin
13W11402028 Whirlpool Refrigerator Mat
14WP12722803AP Whirlpool Refrigerator Mullion Rail
15WP67005626 Whirlpool Refrigerator Can Caddy
16WP12028505AP Whirlpool Closing Cam
17W11401472 Whirlpool Refrigerator Door Stop
18WPW10371195 Whirlpool Refrigerator Cantilever Bin
19BUSHING, DOOR UPPER LEFT (APOLLO GREY)
2010961006AP Whirlpool Refrigerator Hinge Bushing
21WP98165 Whirlpool Screw
22W10853652 Whirlpool Refrigerator Hinge Bushing
23DOOR, RIGHT STAINLESS
24WPW10243391 Whirlpool Refrigerator Nameplate
