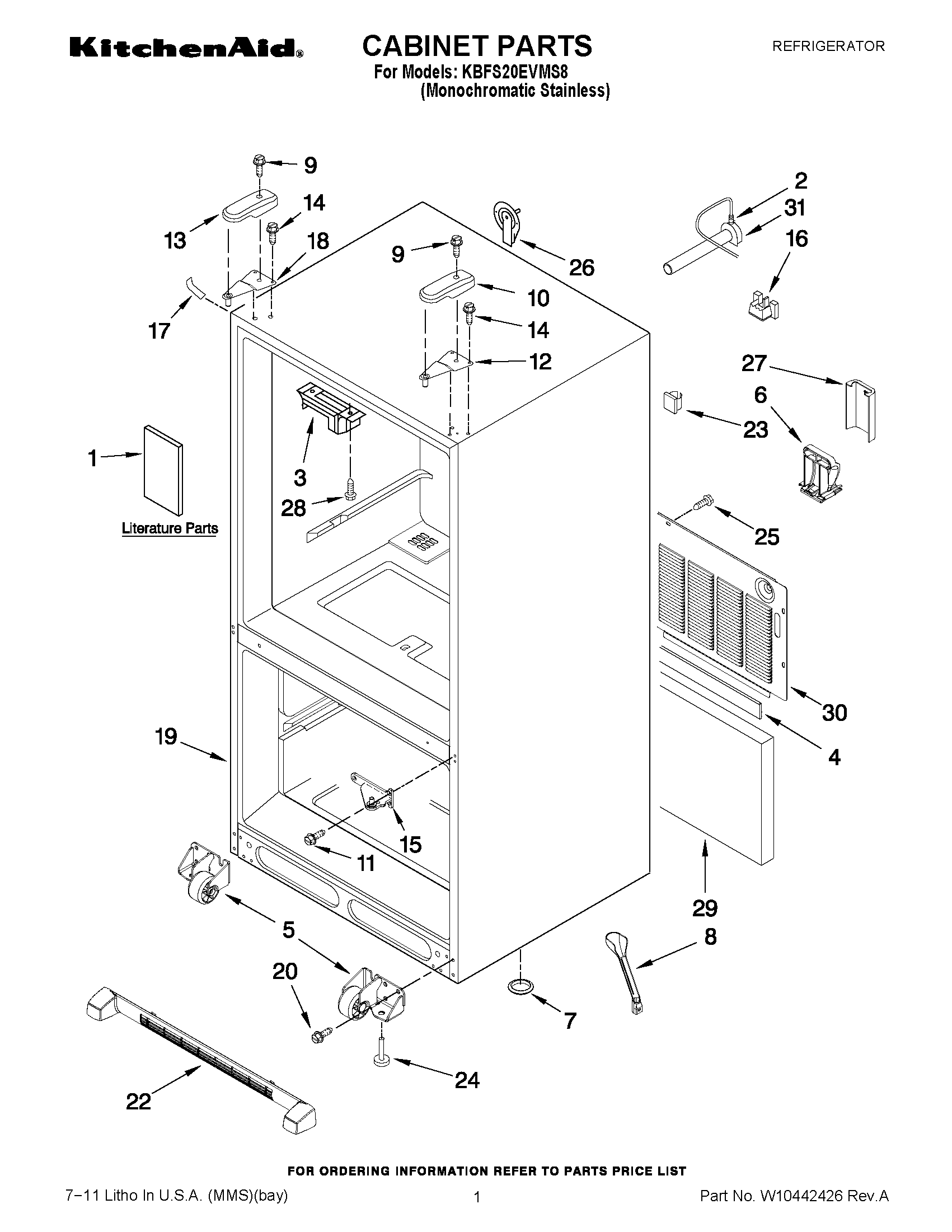

KBFS20EVMS8 01 – CABINET PARTS

KBFS20EVMS8 01 – CABINET PARTS

Written by

in

KBFS20EVMS8 01 – CABINET PARTS

Products

PositionProduct
1TECH SHEET
1USE & CARE GUIDE
1Energy Guide
2WPM0114003 Whirlpool Microwave Speed Clip Clamp
3WP67003405 Whirlpool Pivot Block
4B5759655 Whirlpool Refrigerator Gasket
5WPW10515763 Whirlpool Refrigerator Cabinet Roller
5WPW10515762 Whirlpool Refrigerator Cabinet Roller
612831101 Whirlpool Refrigerator Tube Clamp
7A3076901 Whirlpool Refrigerator Plug
8W10619951 Whirlpool Drain Tube with Grommet
9WP8281196 Whirlpool Screw
10COVER, RIGHT HINGE
11WP67006380 Whirlpool Screw
1212626910ED Whirlpool Refrigerator Door Hinge
13W10217487 Whirlpool Refrigerator Cover
14WP489349 Whirlpool Refrigerator Screw
1512655102AP Whirlpool Refrigerator Door Hinge
16WP12777701 Whirlpool Refrigerator Filler Block
17WP12587703AP Whirlpool Refrigerator Filler
1812626911ED Whirlpool Refrigerator Door Hinge
19CABINET (NOT A SERVICEABLE PART)
2067006564 Whirlpool Refrigerator Screw
22WPW10534155 Whirlpool Refrigerator Kickplate Grille Gray
23WPM0104106 Whirlpool Refrigerator Clip
24WPW10141622 Whirlpool Leveler
2567006425 Whirlpool Refrigerator Screw
2612726003 Whirlpool Refrigerator Water Cover
27W10208593 Whirlpool Refrigerator Valve Cover
28WP7101P126-60 Whirlpool Screw
29INSULATION, SOUND
30WPW10211855 Whirlpool Refrigerator Back Cover
31W11176463 Whirlpool Refrigerator Water Tube
