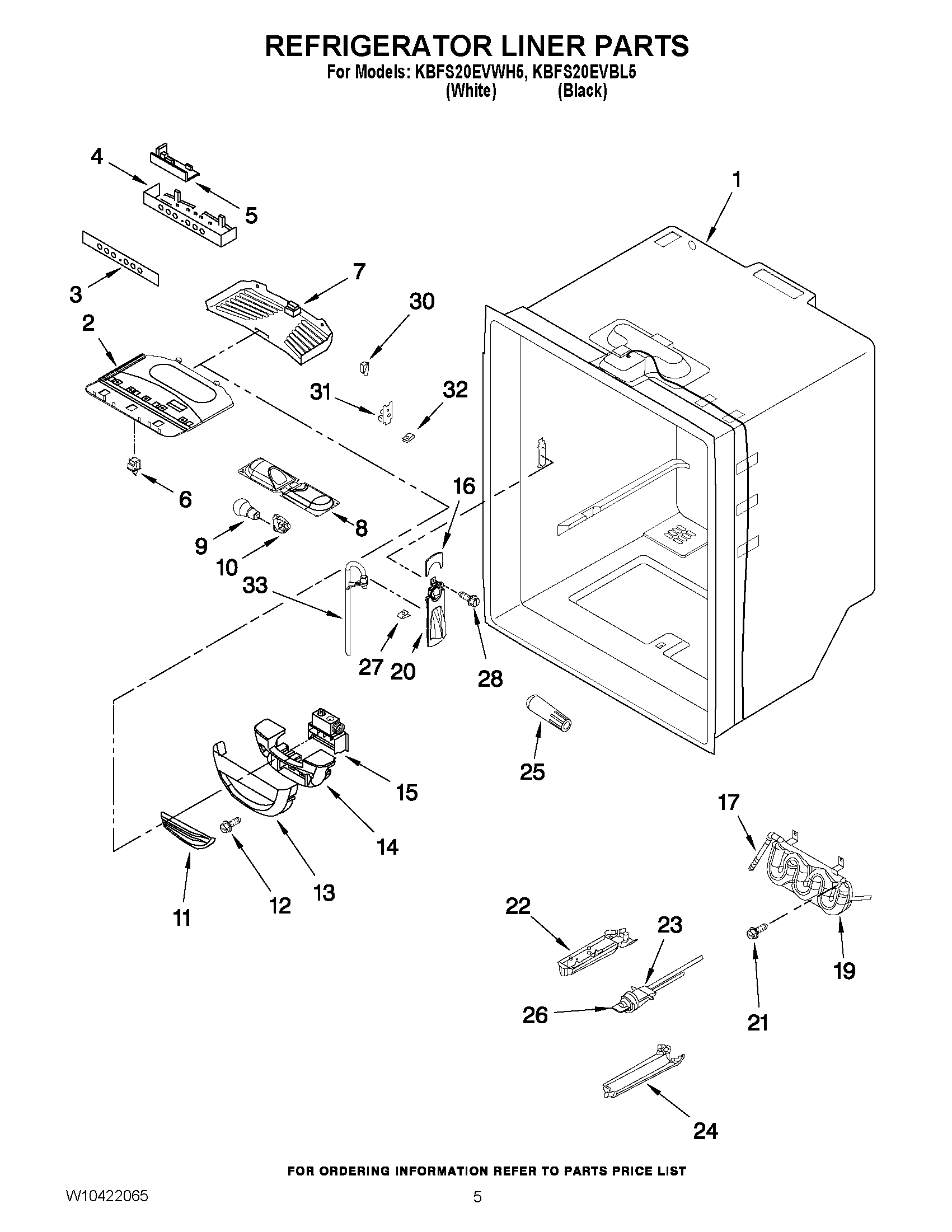

KBFS20EVWH5 03 – REFRIGERATOR LINER PARTS

Products

PositionProduct
NIWPW10224292 Whirlpool Refrigerator Wire Harness
1CABINET (NOT A SERVICEABLE PART)
2MODULE, LIGHT
3WPW10317125 Whirlpool Refrigerator Overlay
4W11416469 Whirlpool Refrigerator Housing
5WPW10319823-includeCORE Whirlpool WPW10319823 Refrigerator Electronic Control Board + Core
6W11384469 Whirlpool Door Switch
7W11284721 Whirlpool Refrigerator Cover
812806601 Whirlpool Refrigerator Light Housing
9W11679940 Whirlpool Refrigerator Light Bulb Assembly
10W11447232 Whirlpool Refrigerator Socket
1167003900 Whirlpool Refrigerator Insert Damper Cover
12WP400021-1 Whirlpool Screw
13WP12806701 Whirlpool Refrigerator Box Cover
14INSULATION
15CONTROL DAMPER
16W11519867 Whirlpool Refrigerator Cover
17WP2300868 Whirlpool Refrigerator Fitting
19W11229977 Whirlpool Refrigerator Reservoir
20FACADE, DISP.
21WP67006415 Whirlpool Refrigerator Screw
22PLATE-FIL
23W11346623 Whirlpool Refrigerator Water Filter Head
24WP12568001 Whirlpool Filter Cover
25everydrop® Filter 4 EDR4RXD1 Whirlpool Refrigerator Water
26W11395888 Whirlpool Refrigerator Bypass Filter Cap
27W10819546 Whirlpool Refrigerator Clip
2867006425 Whirlpool Refrigerator Screw
30WP12575501 Whirlpool Refrigerator Micro Switch
3112707303SP Whirlpool Refrigerator Plate
3267002816 Whirlpool Refrigerator Waterline Clip
33W11677725 Whirlpool Refrigerator Guide
