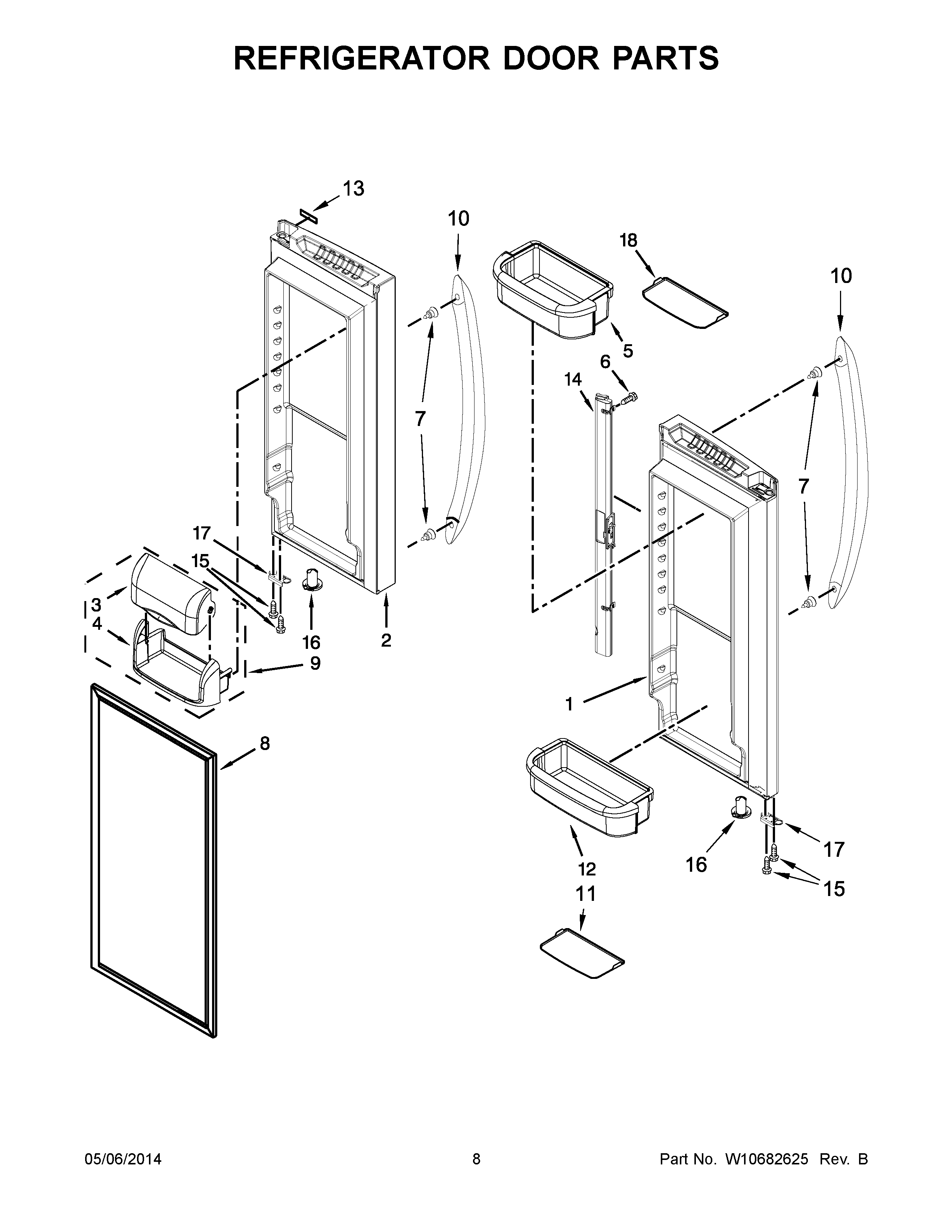

KBFS22ECMS00 05 – REFRIGERATOR DOOR PARTS

KBFS22ECMS00 05 – REFRIGERATOR DOOR PARTS

Written by

in

KBFS22ECMS00 05 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	13107883BQ Whirlpool Refrigerator Black Foam In Place Doorack
1	13107883WQ Whirlpool Refrigerator DOR-FIP
1	13107883SQ Whirlpool Refrigerator Foam Assembly
2	13107856SQ Whirlpool Stainless Steel Door
2	13107856BQ Whirlpool Refrigerator Black Foam In Place Doorack
2	13107856WQ Whirlpool Refrigerator DOR-FIP White
3	WP67003637 Whirlpool Dairy Door
4	WP67001279 Whirlpool Refrigerator Dairy Tray
5	WPW10351081 Whirlpool Refrigerator Cantilever Bin
5	WPW10371194 Whirlpool Refrigerator Door Shelf Bin Basket Bucket
6	W11311945 Whirlpool Refrigerator Screw
7	WPW10661886 Whirlpool Refrigerator Door Handle Screw
8	W10830287 Whirlpool Refrigerator FIP Gasket
8	W10830283 Whirlpool Refrigerator Door Gasket
8	GASKET-FIP
8	W10830289 Whirlpool Refrigerator Gasket FIP
8	W10830189 Whirlpool Refrigerator Door Gasket
8	GASKET-FIP
9	WP12744905 Whirlpool Refrigerator Compressor Door
10	HANDLE, DOOR (BLACK)
10	HANDLE, DOOR (WHITE)
10	WPW10586526 Whirlpool Refrigerator Handle
11	W10450029 Whirlpool Refrigerator Mat
11	W11402028 Whirlpool Refrigerator Mat
12	WPW10289497 Whirlpool Refrigerator Shelf Bin Basket Door
12	W11238396 Whirlpool Refrigerator Cantilever Bin
13	WPW10243392 Whirlpool Dishwasher Nameplate
13	WPW10243393 Whirlpool Dishwasher Nameplate
13	WPW10243391 Whirlpool Refrigerator Nameplate
14	WP12722803AP Whirlpool Refrigerator Mullion Rail
14	WP12722803B Whirlpool Door Guide
14	RAIL-MULLN WHITE
15	WP98165 Whirlpool Screw
16	WP12028505AP Whirlpool Closing Cam
16	WP67003639 Whirlpool Refrigerator Closer
16	WP67003638 Whirlpool Closing Cam
17	12968202W Whirlpool Refrigerator Door Stop
17	W11708403 Whirlpool Door Stop
17	W11703060 Whirlpool Door Stop
18	W11408990 Whirlpool Refrigerator Mat
18	WPW10450021 Whirlpool Refrigerator Mat
