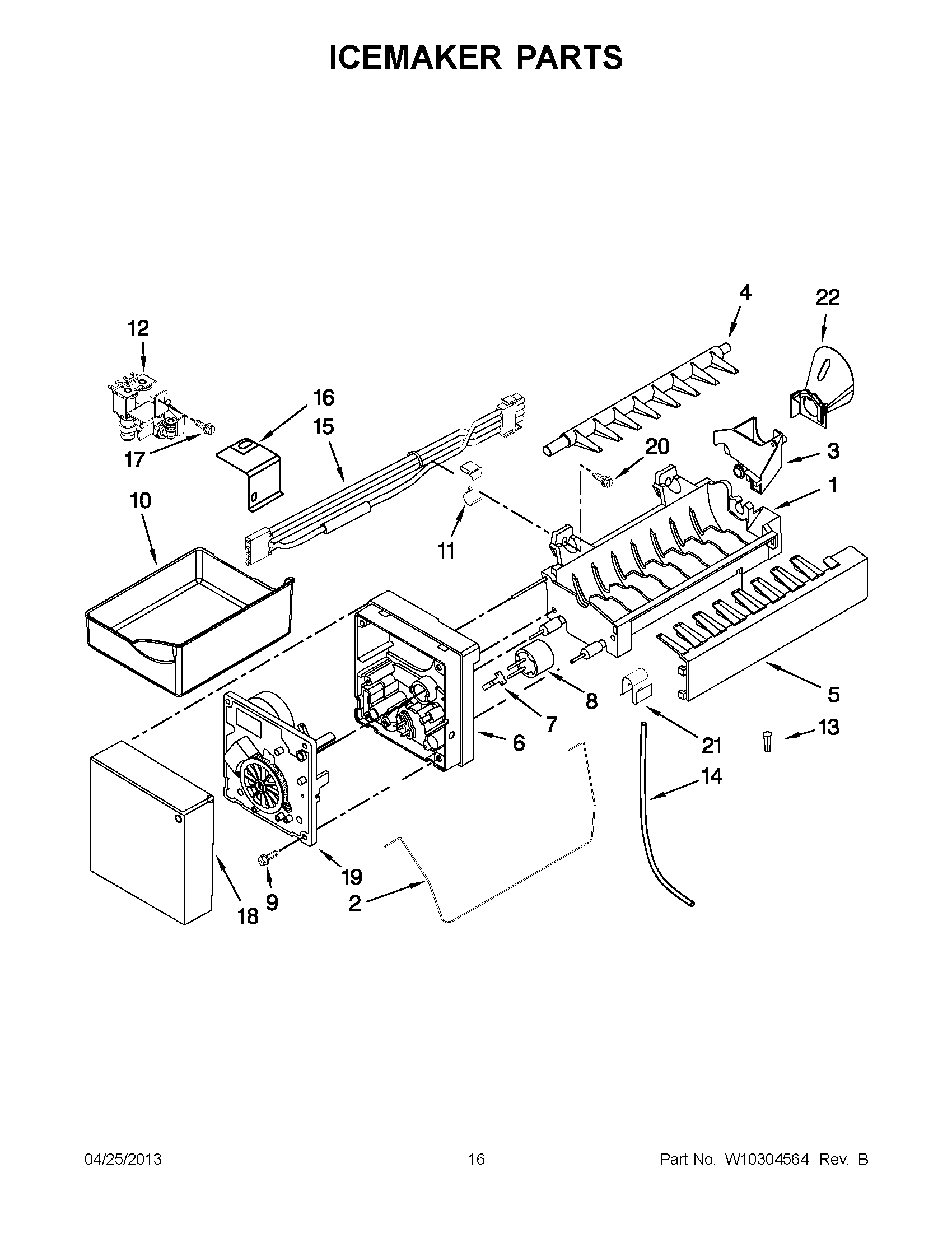

KBFS22EWBL1 08 – ICEMAKER PARTS

KBFS22EWBL1 08 – ICEMAKER PARTS

Written by

in

KBFS22EWBL1 08 – ICEMAKER PARTS

Products

PositionProduct
1WPW10190929 Whirlpool Refrigerator Ice Maker Mold
2W11285509 Whirlpool Refrigerator Shut-Off Arm
3W10122561 Whirlpool Refrigerator Cup Fill
4WP627843 Whirlpool Refrigerator Ejector Arm
5WP2182124 Whirlpool Refrigerator Stripper Arm
6WP2195914 Whirlpool Refrigerator Ice Maker Housing
7WP2315522 Whirlpool Refrigerator Clip
8WP627985 Whirlpool Icemaker Cycling Thermostat
9WP489464 Whirlpool Refrigerator Screw
10WPW10171529 Whirlpool Refrigerator Ice Pan
11Clamp
12WP12544124 Whirlpool Refrigerator Valve
13WPA3223101 Whirlpool Refrigerator Insert PL
14W11120581 Whirlpool Refrigerator Water Tube
15WPD7813010 Whirlpool Refrigerator Wire Harness
16WP2256087 Whirlpool Refrigerator Bracket
17WP489128 Whirlpool Refrigerator Screw
18WPW10289690 Whirlpool Ice Maker Cover
198201515 Whirlpool Refrigerator Motor and Gear Module Kit
20WP681249 Whirlpool Screw Assembly
21WP628379 Whirlpool Refrigerator Clip
2212918001 Whirlpool Refrigerator Funnel
100D7824706Q Whirlpool Refrigerator Ice Maker Assembly
