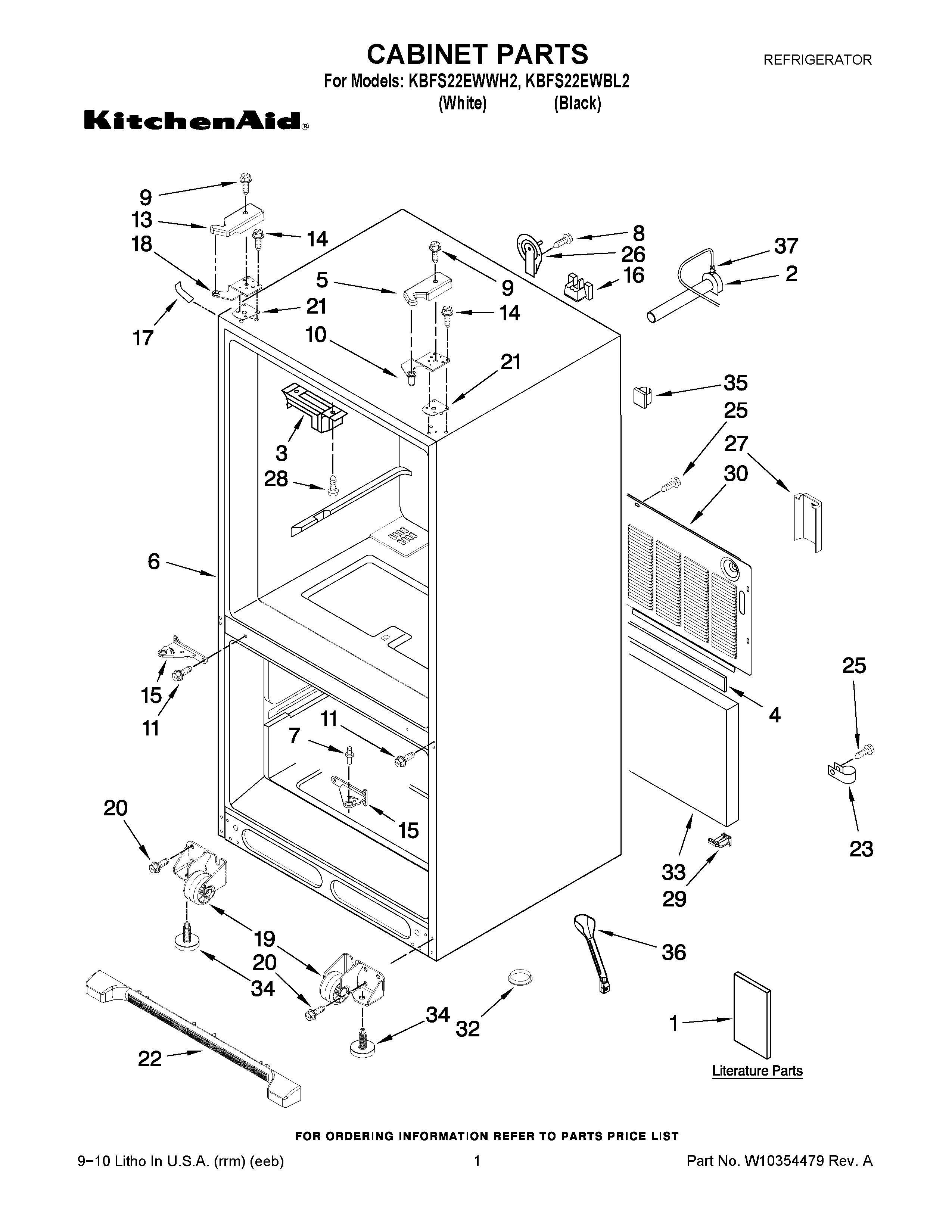

KBFS22EWBL2 01 – CABINET PARTSadmin2025-04-26T12:06:15+00:00KBFS22EWBL2 01 – CABINET PARTS ProductsPositionProduct1ENERGY GUIDE1TECH SHEET1Owners Manual2W11176463 Whirlpool Refrigerator Water Tube3WP67003405 Whirlpool Pivot Block4B5759655 Whirlpool Refrigerator Gasket5WP67005956 Whirlpool Refrigerator Cover567005958 Whirlpool Refrigerator Top Hinge Cover (RT-WHT)6CABINET (NOT A SERVICEABLE PART)7WP67006642 Whirlpool Refrigerator Pin8WP98165 Whirlpool Screw9WP8281196 Whirlpool Screw10W11592374 Whirlpool Refrigerator Top Door Hinge11WP67006380 Whirlpool Screw13W10337647 Whirlpool Refrigerator Cover13WPW10337634 Whirlpool Refrigerator Cover14WP489349 Whirlpool Refrigerator Screw1513000002WD Whirlpool Refrigerator Door Hinge15W10918113 Whirlpool Refrigerator Door Hinge15W10918168 Whirlpool Refrigerator Door Hinge15W10918164 Whirlpool Refrigerator Door Hinge16WP12777701 Whirlpool Refrigerator Filler Block1767003485 Whirlpool Refrigerator Corner Cover (Black)1712587703W Whirlpool Refrigerator Cover18W11592375 Whirlpool Door Hinge19WPW10515763 Whirlpool Refrigerator Cabinet Roller19WPW10515762 Whirlpool Refrigerator Cabinet Roller2067006564 Whirlpool Refrigerator Screw2112999502 Whirlpool Refrigerator Hinge Shim2112999501 Whirlpool Refrigerator Hinge Shim22WPW10534161 Whirlpool Refrigerator Front Grille22WPW10534162 Whirlpool Refrigerator Front Grille23W11456069 Whirlpool Refrigerator Clamp2567006425 Whirlpool Refrigerator Screw2612726003 Whirlpool Refrigerator Water Cover27W10208593 Whirlpool Refrigerator Valve Cover28W10854958 Whirlpool Refrigerator Screw2912831101 Whirlpool Refrigerator Tube Clamp30W10210980 Whirlpool Refrigerator Back Cover32A3076901 Whirlpool Refrigerator Plug33INSULATION, SOUND34WPW10141622 Whirlpool Leveler35WPM0104106 Whirlpool Refrigerator Clip36W10619951 Whirlpool Drain Tube with Grommet37WPM0114003 Whirlpool Microwave Speed Clip Clamp
