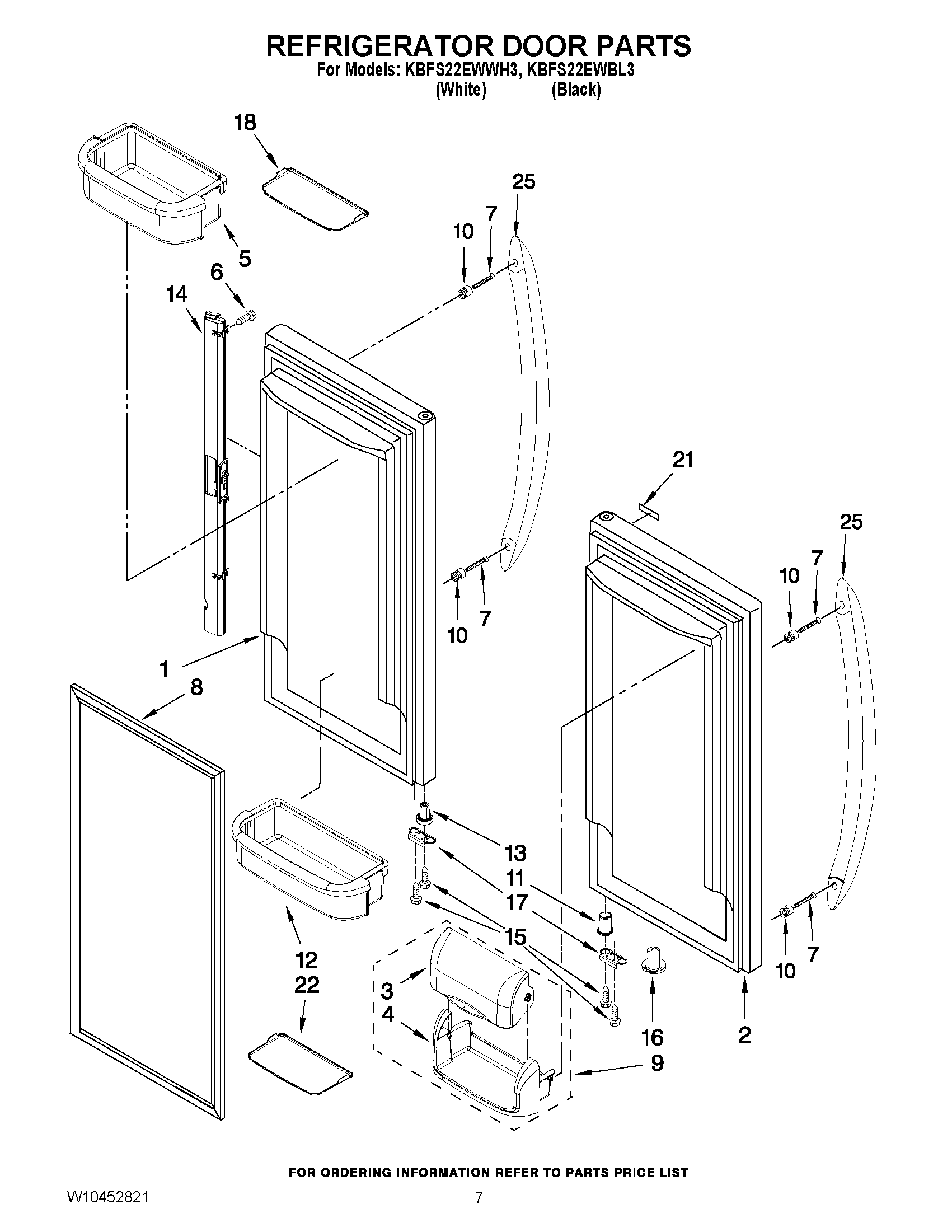

KBFS22EWBL3 04 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	DOOR, LEFT (BLACK)
1	DOOR, LEFT (WHITE)
2	DOOR, RIGHT (BLACK)
2	DOOR, RIGHT (WHITE)
3	WP67003637 Whirlpool Dairy Door
4	WP67001279 Whirlpool Refrigerator Dairy Tray
5	BUCKET, SMALL
5	WPW10371193 Whirlpool Refrigerator Door Bin
6	W11311945 Whirlpool Refrigerator Screw
7	SCREW
8	GASKET-FIP
8	W10830189 Whirlpool Refrigerator Door Gasket
8	W10830287 Whirlpool Refrigerator FIP Gasket
8	W10830289 Whirlpool Refrigerator Gasket FIP
9	WP12744905 Whirlpool Refrigerator Compressor Door
10	WP67006113 Whirlpool Stud Bolt
11	12028601W Whirlpool Refrigerator Hinge Bushing
11	WP67002731 Whirlpool Refrigerator Door Bushing
12	BUCKET, LARGE
12	WPW10289489 Whirlpool Door Shelf Bin
13	WP67002721 Whirlpool Refrigerator Door Bushing
13	67002722 Whirlpool Refrigerator White Door Bushing
14	WP12722803B Whirlpool Door Guide
14	RAIL-MULLN WHITE
15	WP98165 Whirlpool Screw
16	WP67003639 Whirlpool Refrigerator Closer
16	WP67003638 Whirlpool Closing Cam
17	W11708403 Whirlpool Door Stop
17	12968202W Whirlpool Refrigerator Door Stop
18	WPW10450021 Whirlpool Refrigerator Mat
18	W11408990 Whirlpool Refrigerator Mat
21	WPW10243393 Whirlpool Dishwasher Nameplate
21	WPW10243392 Whirlpool Dishwasher Nameplate
22	W10450004 Whirlpool Refrigerator Mat
22	W10450029 Whirlpool Refrigerator Mat
25	WPW10314515 Whirlpool Refrigerator Handle
25	HANDLE, DOOR (BLACK)
