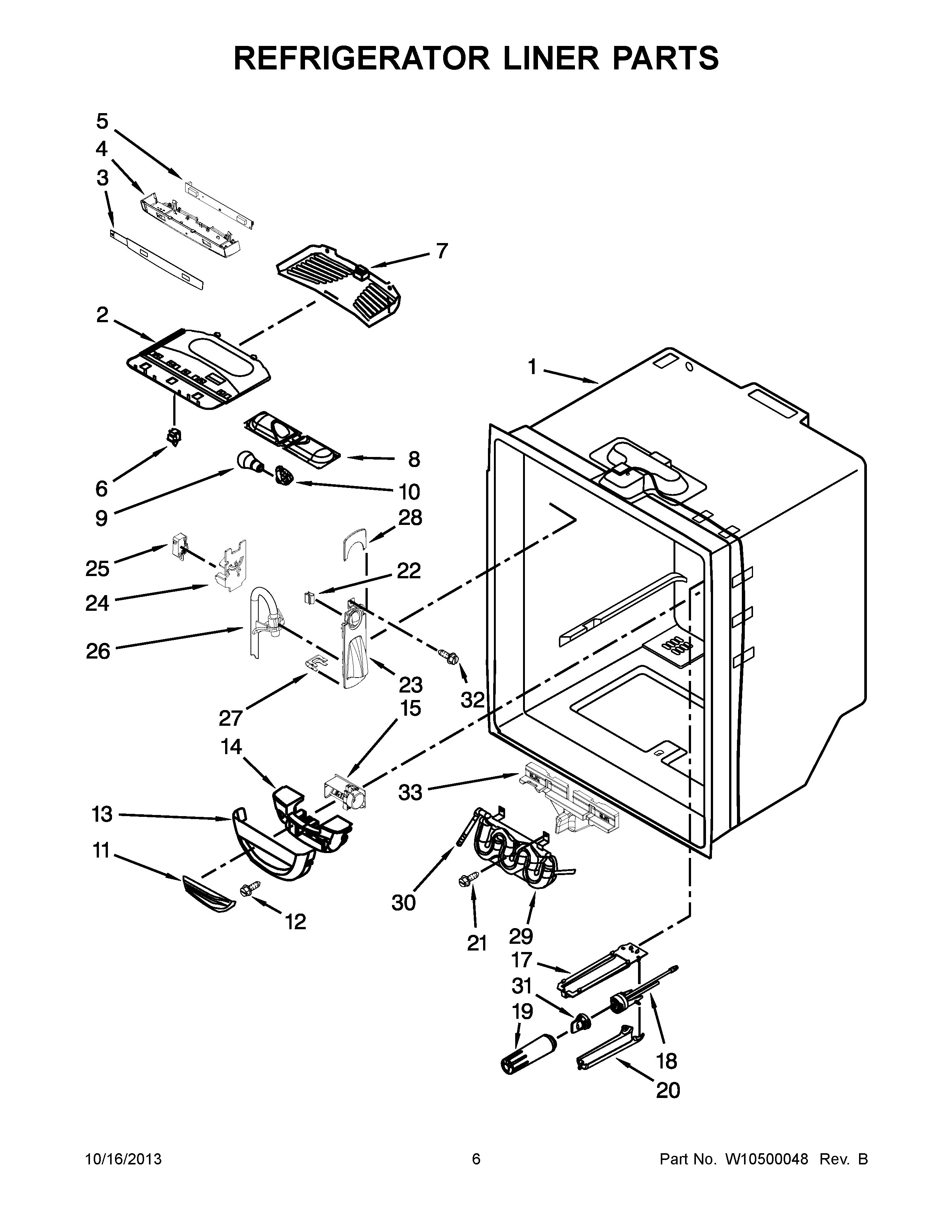

KBFS22EWBL5 04 – REFRIGERATOR LINER PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	WPW10273869 Whirlpool Refrigerator Wire Harness
2	Module, Light
3	WPW10317125 Whirlpool Refrigerator Overlay
4	W11416469 Whirlpool Refrigerator Housing
5	WPW10428901-includeCORE Whirlpool WPW10428901 Refrigerator Electronic Control Board + Core
6	W11291138 Whirlpool Refrigerator Door Switch
7	W11284721 Whirlpool Refrigerator Cover
8	HOUSING, LIGHT
9	W11679940 Whirlpool Refrigerator Light Bulb Assembly
10	W11447232 Whirlpool Refrigerator Socket
11	67003900 Whirlpool Refrigerator Insert Damper Cover
12	WP400021-1 Whirlpool Screw
13	WP12806701 Whirlpool Refrigerator Box Cover
14	INSULATION
15	CONTROL DAMPER
17	PLATE-FIL
18	W11346623 Whirlpool Refrigerator Water Filter Head
19	everydropÂ® Filter 4 EDR4RXD1 Whirlpool Refrigerator Water
20	WP12568001 Whirlpool Filter Cover
21	WP67006415 Whirlpool Refrigerator Screw
22	W10819546 Whirlpool Refrigerator Clip
23	FACADE, DISP.
24	12707303SP Whirlpool Refrigerator Plate
25	WP12575501 Whirlpool Refrigerator Micro Switch
26	W11677725 Whirlpool Refrigerator Guide
27	67002816 Whirlpool Refrigerator Waterline Clip
28	W11519867 Whirlpool Refrigerator Cover
29	TANK, WATER
30	WP2300868 Whirlpool Refrigerator Fitting
31	W11395888 Whirlpool Refrigerator Bypass Filter Cap
32	67006425 Whirlpool Refrigerator Screw
33	W10833346 Whirlpool Refrigerator Insulation
