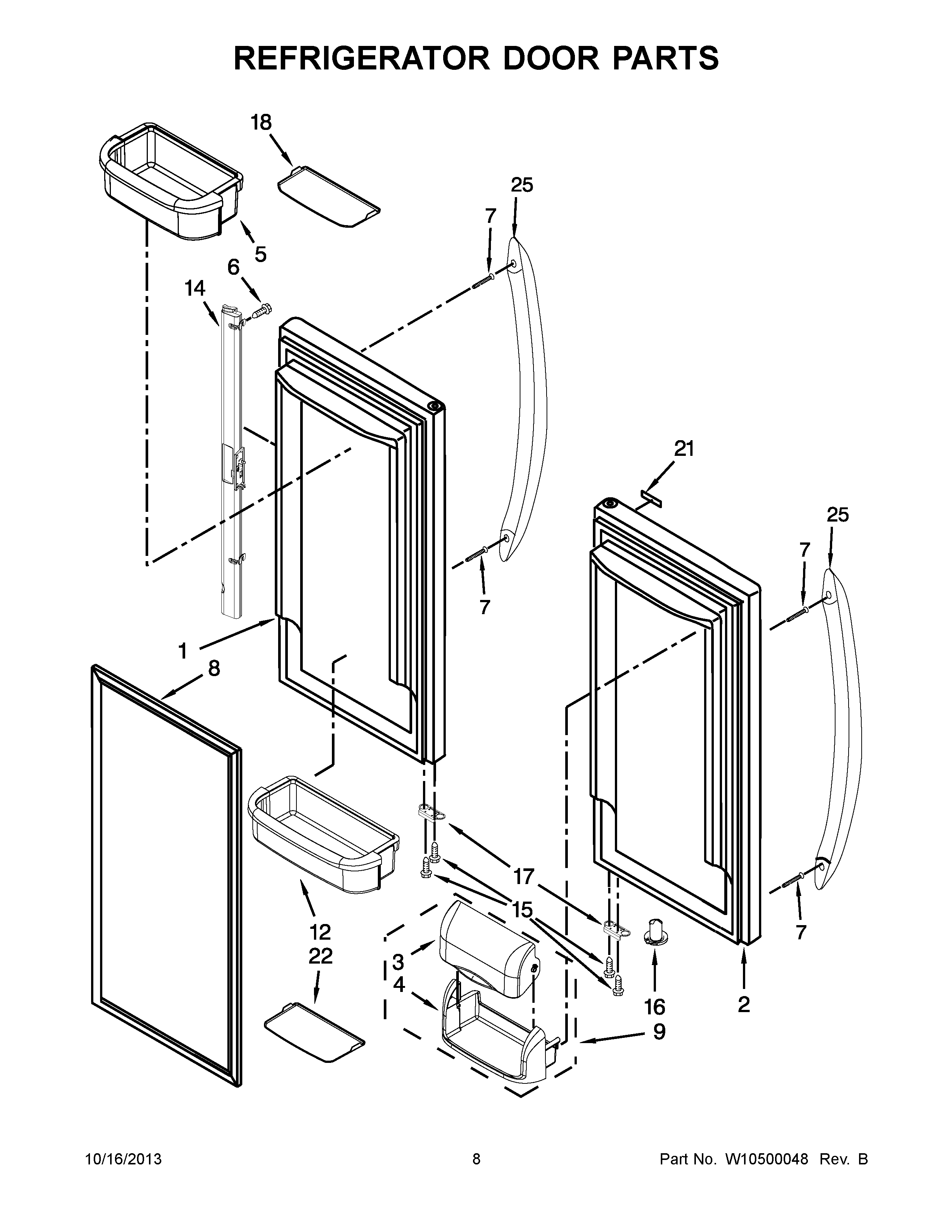

KBFS22EWBL5 05 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	DOOR, LEFT (WHITE)
1	DOOR, LEFT (BLACK)
2	13107856BQ Whirlpool Refrigerator Black Foam In Place Doorack
2	13107856WQ Whirlpool Refrigerator DOR-FIP White
3	WP67003637 Whirlpool Dairy Door
4	WP67001279 Whirlpool Refrigerator Dairy Tray
5	BUCKET, SMALL
5	WPW10371193 Whirlpool Refrigerator Door Bin
6	W11311945 Whirlpool Refrigerator Screw
7	WPW10661886 Whirlpool Refrigerator Door Handle Screw
8	GASKET-FIP
8	W10830289 Whirlpool Refrigerator Gasket FIP
8	W10830287 Whirlpool Refrigerator FIP Gasket
8	W10830189 Whirlpool Refrigerator Door Gasket
9	WP12744905 Whirlpool Refrigerator Compressor Door
12	BUCKET, LARGE
12	WPW10289489 Whirlpool Door Shelf Bin
14	WP12722803B Whirlpool Door Guide
14	RAIL-MULLN WHITE
15	WP98165 Whirlpool Screw
16	WP67003639 Whirlpool Refrigerator Closer
16	WP67003638 Whirlpool Closing Cam
17	12968202W Whirlpool Refrigerator Door Stop
17	W11708403 Whirlpool Door Stop
18	W11408990 Whirlpool Refrigerator Mat
18	WPW10450021 Whirlpool Refrigerator Mat
21	WPW10243392 Whirlpool Dishwasher Nameplate
21	WPW10243393 Whirlpool Dishwasher Nameplate
22	W10450004 Whirlpool Refrigerator Mat
22	W10450029 Whirlpool Refrigerator Mat
25	HANDLE, DOOR (BLACK)
25	WPW10314515 Whirlpool Refrigerator Handle
