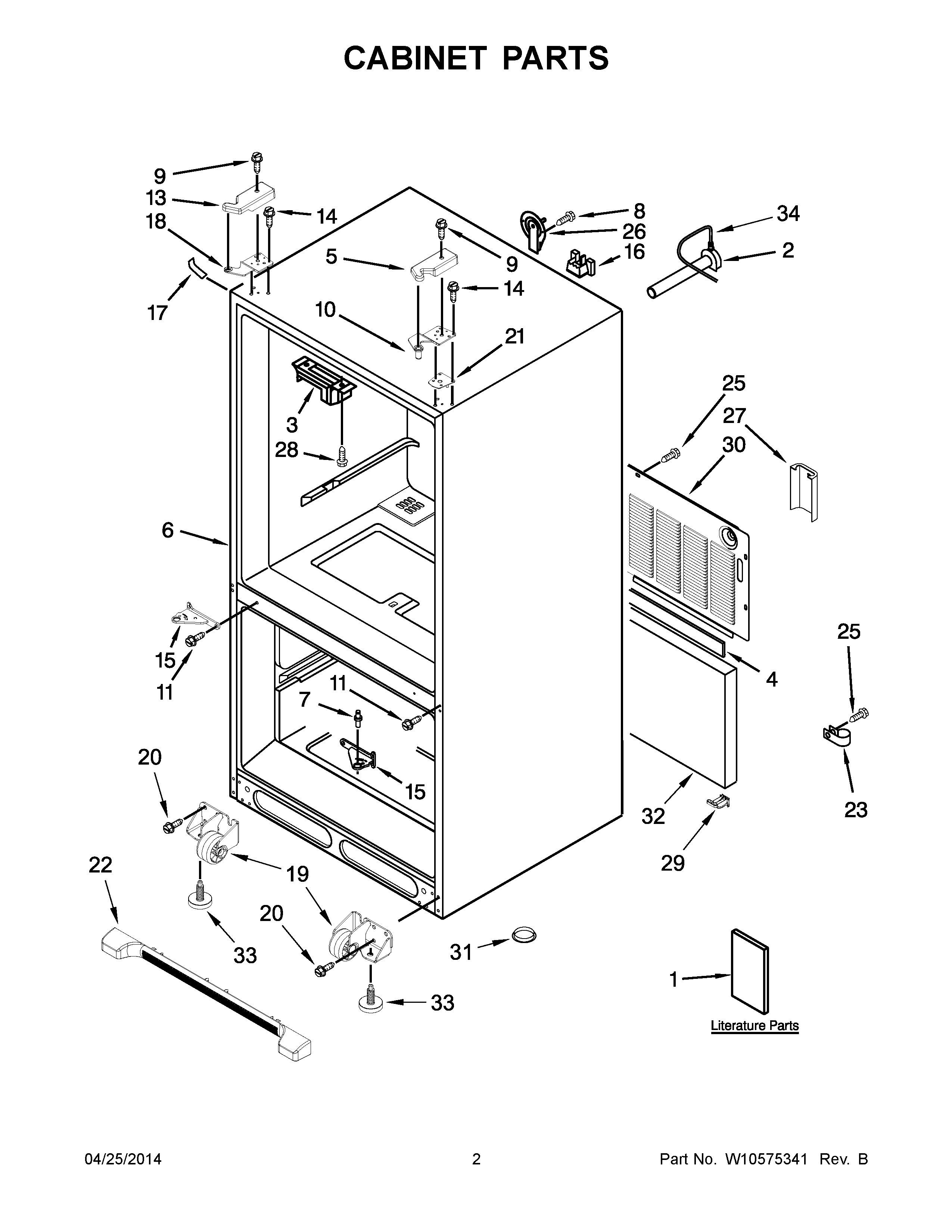

KBFS22EWBL7 02 – CABINET PARTS

Products

PositionProduct
1ENERGY GUIDE
1USE & CARE GUIDE
1TECH SHEET
2W11176463 Whirlpool Refrigerator Water Tube
3WP67003405 Whirlpool Pivot Block
4B5759655 Whirlpool Refrigerator Gasket
567005958 Whirlpool Refrigerator Top Hinge Cover (RT-WHT)
5WP67005956 Whirlpool Refrigerator Cover
6CABINET (NOT A SERVICEABLE PART)
7WP67006642 Whirlpool Refrigerator Pin
8WP98165 Whirlpool Screw
9WP8281196 Whirlpool Screw
10W11592374 Whirlpool Refrigerator Top Door Hinge
11WP67006380 Whirlpool Screw
13WPW10337634 Whirlpool Refrigerator Cover
13W10337647 Whirlpool Refrigerator Cover
14WP489349 Whirlpool Refrigerator Screw
1513000002WD Whirlpool Refrigerator Door Hinge
15W10918113 Whirlpool Refrigerator Door Hinge
15W10918168 Whirlpool Refrigerator Door Hinge
15W10918164 Whirlpool Refrigerator Door Hinge
16W11686793 Whirlpool Block
1712587703W Whirlpool Refrigerator Cover
1767003485 Whirlpool Refrigerator Corner Cover (Black)
18W11592375 Whirlpool Door Hinge
19WPW10515763 Whirlpool Refrigerator Cabinet Roller
19WPW10515762 Whirlpool Refrigerator Cabinet Roller
2067006564 Whirlpool Refrigerator Screw
2112999502 Whirlpool Refrigerator Hinge Shim
22WPW10534161 Whirlpool Refrigerator Front Grille
22WPW10534162 Whirlpool Refrigerator Front Grille
23W11456069 Whirlpool Refrigerator Clamp
2567006425 Whirlpool Refrigerator Screw
2612726003 Whirlpool Refrigerator Water Cover
27W10208593 Whirlpool Refrigerator Valve Cover
28W10854958 Whirlpool Refrigerator Screw
29W10528513 Whirlpool Tube Clamp
30W10210980 Whirlpool Refrigerator Back Cover
31A3076901 Whirlpool Refrigerator Plug
32INSULATION, SOUND
33WPW10141622 Whirlpool Leveler
34WPM0114003 Whirlpool Microwave Speed Clip Clamp
