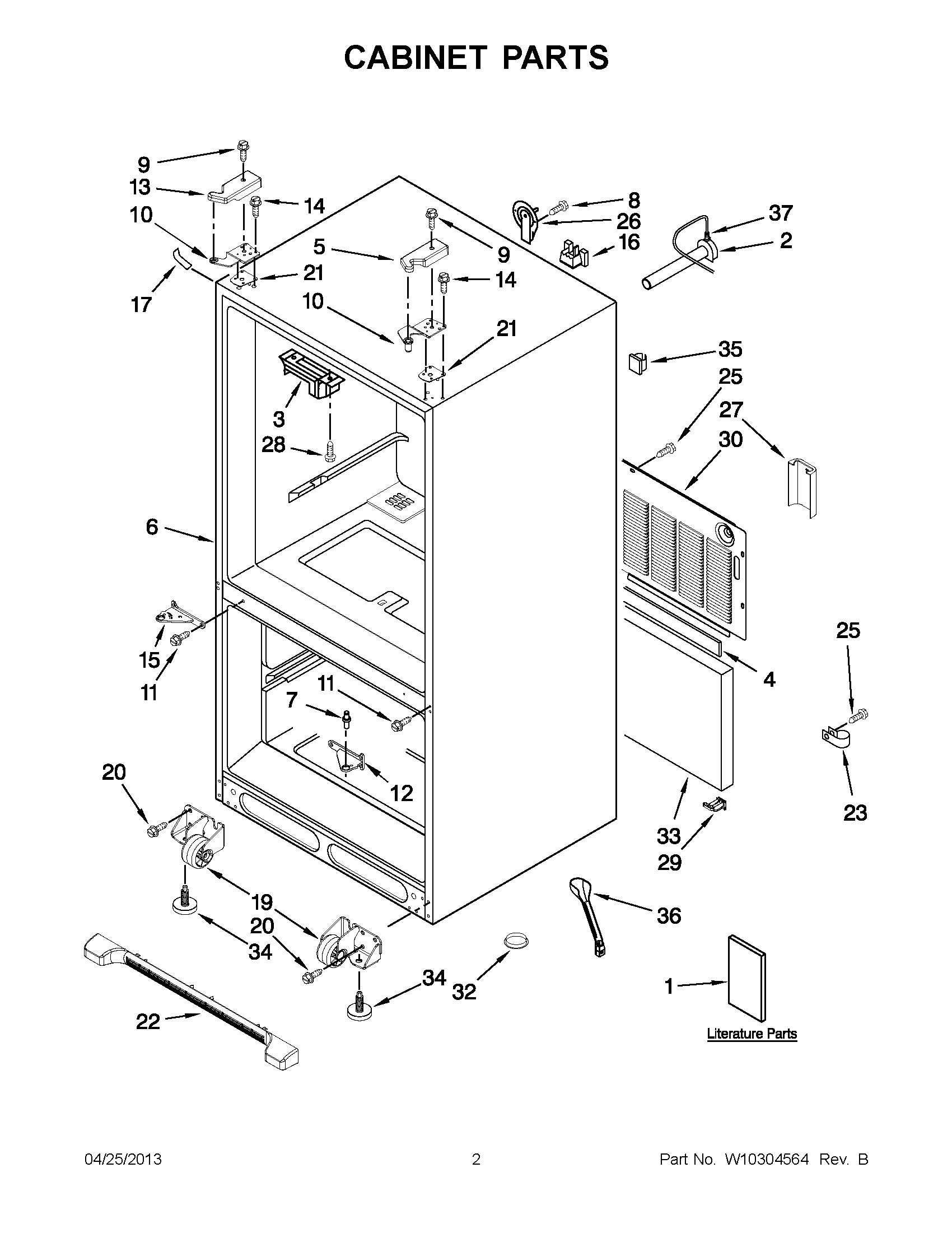

KBFS22EWMS1 01 – CABINET PARTS
Written by
in
KBFS22EWMS1 01 – CABINET PARTS
Products
Position
Product
1
ENERGY GUIDE
1
Owners Manual
1
TECH SHEET
2
W11176463 Whirlpool Refrigerator Water Tube
3
WP67003405 Whirlpool Pivot Block
4
B5759655 Whirlpool Refrigerator Gasket
5
WP67005956 Whirlpool Refrigerator Cover
5
67005958 Whirlpool Refrigerator Top Hinge Cover (RT-WHT)
5
WPW10191117 Whirlpool Refrigerator Cover
6
CABINET (NOT A SERVICEABLE PART)
7
WP67006642 Whirlpool Refrigerator Pin
8
WP98165 Whirlpool Screw
9
WP8281196 Whirlpool Screw
10
W11592374 Whirlpool Refrigerator Top Door Hinge
10
W11592375 Whirlpool Door Hinge
11
WP67006380 Whirlpool Screw
12
W10918168 Whirlpool Refrigerator Door Hinge
12
13000002WD Whirlpool Refrigerator Door Hinge
13
W10337647 Whirlpool Refrigerator Cover
13
WPW10337648 Whirlpool Refrigerator Cover
13
WPW10337634 Whirlpool Refrigerator Cover
14
WP489349 Whirlpool Refrigerator Screw
15
W10917988 Whirlpool Refrigerator Door Hinge
15
W10918164 Whirlpool Refrigerator Door Hinge
15
W10918113 Whirlpool Refrigerator Door Hinge
16
WP12777701 Whirlpool Refrigerator Filler Block
17
67003485 Whirlpool Refrigerator Corner Cover (Black)
17
12587703W Whirlpool Refrigerator Cover
17
WP12587703AP Whirlpool Refrigerator Filler
19
WPW10515762 Whirlpool Refrigerator Cabinet Roller
19
WPW10515763 Whirlpool Refrigerator Cabinet Roller
20
67006564 Whirlpool Refrigerator Screw
21
12999502 Whirlpool Refrigerator Hinge Shim
21
12999501 Whirlpool Refrigerator Hinge Shim
22
WPW10534160 Whirlpool Refrigerator Front Grille
22
WPW10534162 Whirlpool Refrigerator Front Grille
22
WPW10534161 Whirlpool Refrigerator Front Grille
23
W11456069 Whirlpool Refrigerator Clamp
25
67006425 Whirlpool Refrigerator Screw
26
12726003 Whirlpool Refrigerator Water Cover
27
W10208593 Whirlpool Refrigerator Valve Cover
28
WP7101P126-60 Whirlpool Screw
29
12831101 Whirlpool Refrigerator Tube Clamp
30
W10210980 Whirlpool Refrigerator Back Cover
32
A3076901 Whirlpool Refrigerator Plug
33
INSULATION, SOUND
34
WPW10141622 Whirlpool Leveler
35
WPM0104106 Whirlpool Refrigerator Clip
36
W10619951 Whirlpool Drain Tube with Grommet
37
WPM0114003 Whirlpool Microwave Speed Clip Clamp
←
