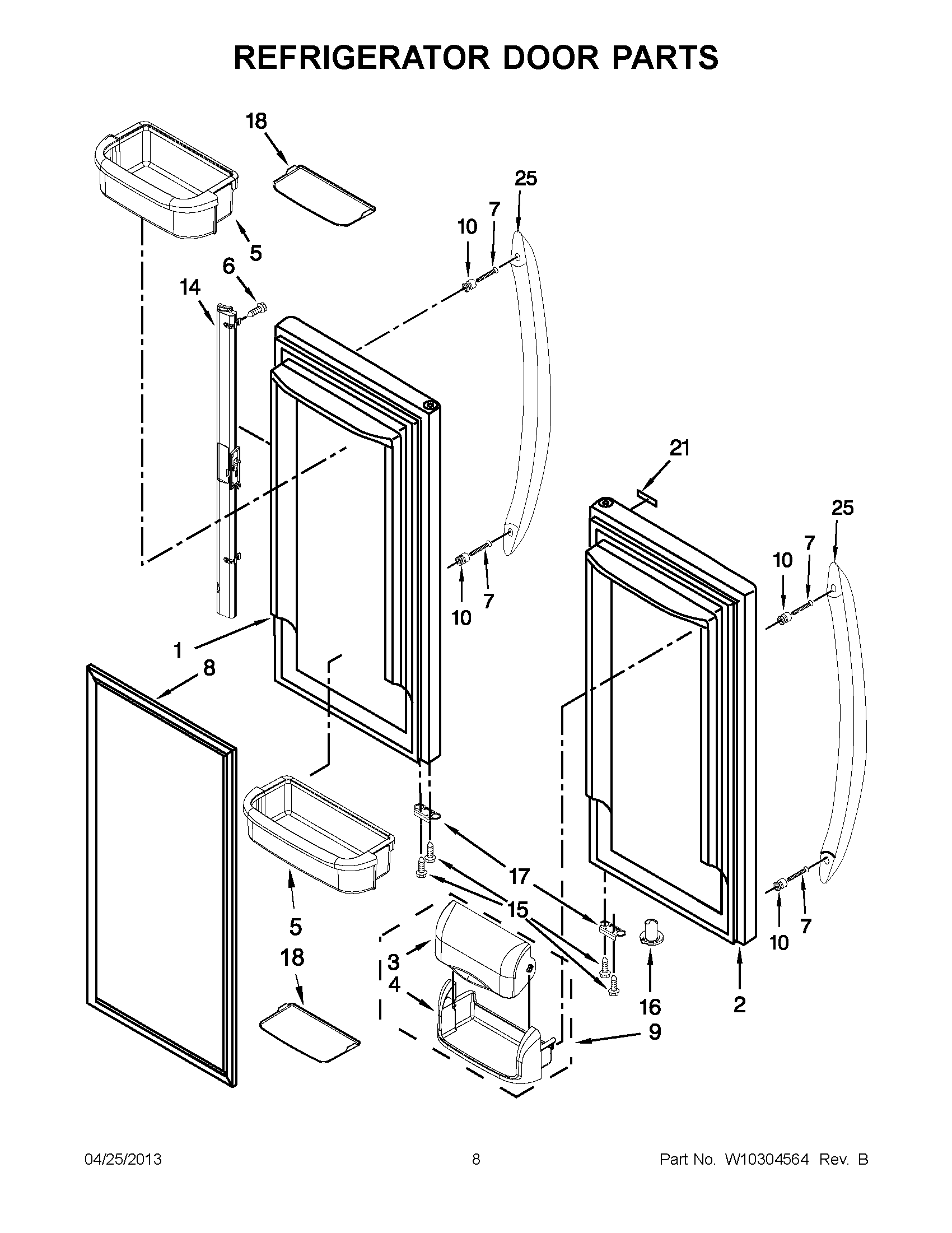

KBFS22EWMS1 04 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	DOOR, LEFT (WHITE)
1	DOOR, LEFT (BLACK)
1	DOOR, LEFT (STAINLESS)
2	DOOR, RIGHT (BLACK)
2	DOOR, RIGHT (WHITE)
2	DOOR, RIGHT (STAINLESS)
3	WP67003637 Whirlpool Dairy Door
4	WP67001279 Whirlpool Refrigerator Dairy Tray
5	WPW10371193 Whirlpool Refrigerator Door Bin
5	BUCKET (SMALL)
5	WPW10289489 Whirlpool Door Shelf Bin
5	BUCKET, LARGE
6	W11311945 Whirlpool Refrigerator Screw
7	SCREW
8	GASKET-FIP
8	W10830289 Whirlpool Refrigerator Gasket FIP
8	W10830189 Whirlpool Refrigerator Door Gasket
8	W10830287 Whirlpool Refrigerator FIP Gasket
8	W10830283 Whirlpool Refrigerator Door Gasket
8	GASKET-FIP
9	WP12744905 Whirlpool Refrigerator Compressor Door
10	WP67006113 Whirlpool Stud Bolt
14	WP12722803AP Whirlpool Refrigerator Mullion Rail
14	WP12722803B Whirlpool Door Guide
14	RAIL-MULLN WHITE
15	WP98165 Whirlpool Screw
16	WP67003639 Whirlpool Refrigerator Closer
16	WP12028505AP Whirlpool Closing Cam
16	WP67003638 Whirlpool Closing Cam
17	W11708403 Whirlpool Door Stop
17	12968202W Whirlpool Refrigerator Door Stop
17	W11703060 Whirlpool Door Stop
18	WPW10450021 Whirlpool Refrigerator Mat
18	W11408990 Whirlpool Refrigerator Mat
18	W10450004 Whirlpool Refrigerator Mat
18	W10450029 Whirlpool Refrigerator Mat
21	WPW10243392 Whirlpool Dishwasher Nameplate
21	WPW10243393 Whirlpool Dishwasher Nameplate
21	NAMEPLATE
25	WPW10314515 Whirlpool Refrigerator Handle
25	WPW10314517K Whirlpool Refrigerator Handle
25	HANDLE, DOOR (BLACK)
