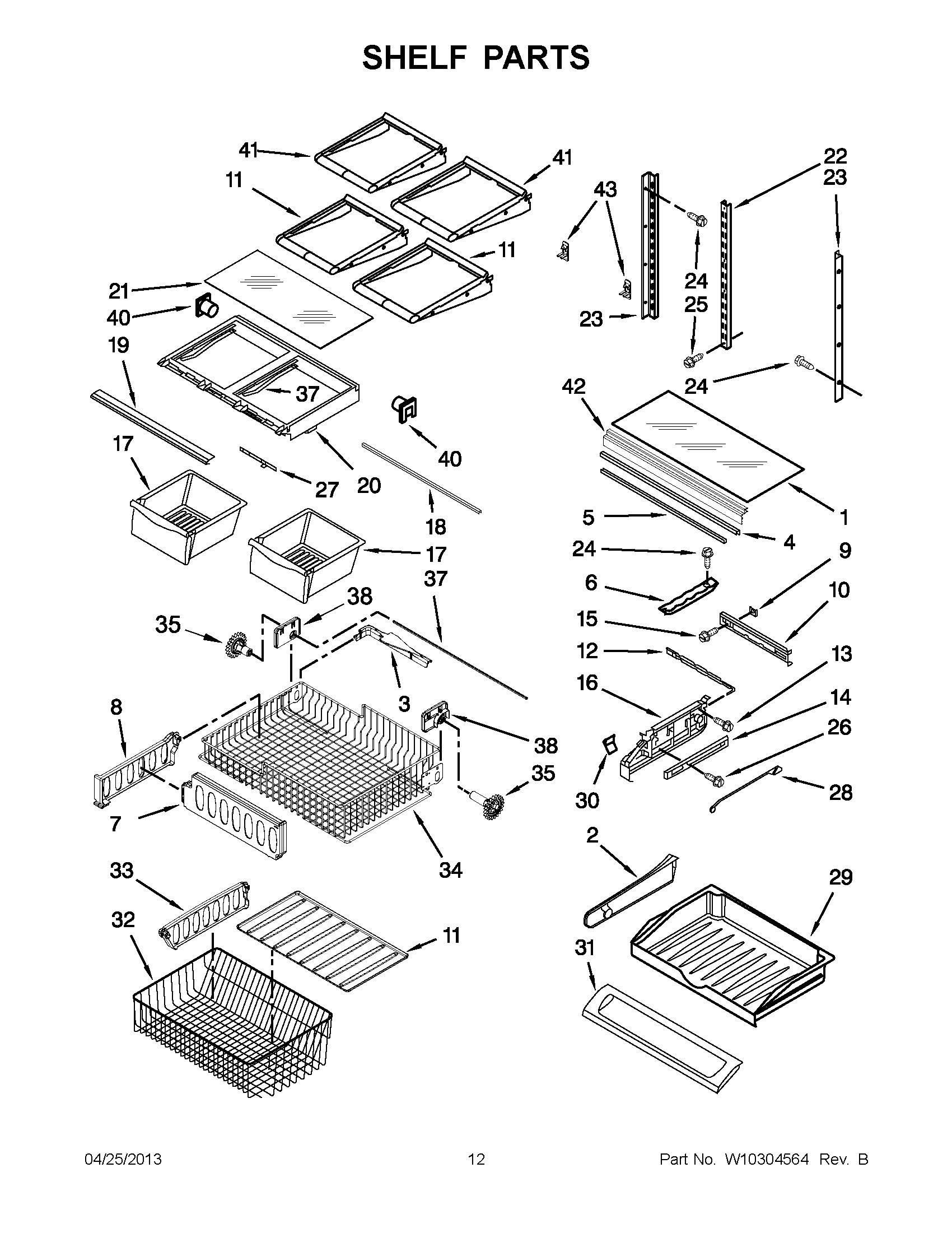

KBFS22EWMS1 06 – SHELF PARTS

KBFS22EWMS1 06 – SHELF PARTS

Written by

in

KBFS22EWMS1 06 – SHELF PARTS

Products

PositionProduct
1WPW10165870 Whirlpool Refrigerator Glass Shelf
2WPW10165967 Whirlpool Divider Assembly
3W10149389 Whirlpool Refrigerator Handle
4W10166785 Whirlpool Refrigerator Trim
5Whirlpool Refrigerator Shelf Support Liner
6WP67001719 Whirlpool Refrigerator Track
7W10311695 Whirlpool Refrigerator Divider
8W10241046 Whirlpool Refrigerator Divider
9GASKET, PANTRY
10W10165876 Whirlpool Refrigerator Housing
11W11402521 Whirlpool Refrigerator Glass Shelf
12W10165882 Whirlpool Refrigerator Slide
13WP67006415 Whirlpool Refrigerator Screw
14WPW10235370 Whirlpool Refrigerator Glide
16W11197396 Whirlpool Refrigerator Drawer Slide Rail Endcap Kit
17WP67002633 Whirlpool Crisper Pan
18WP12227303WD Whirlpool Refrigerator Crisper Brace
19W10231483 Whirlpool Refrigerator Trim Shelf
20WPW10568041 Whirlpool Refrigerator Crisper Shelf Drawer Cover
21WP67006878 Whirlpool Refrigerator Crisper Glass
22W10273463 Whirlpool Refrigerator Ladder
23W10251969 Whirlpool Refrigerator Ladder
2467006425 Whirlpool Refrigerator Screw
25WP489474 Whirlpool Refrigerator Screw
26WP98165 Whirlpool Screw
27SLIDE
28W10165910 Whirlpool Refrigerator Rod
29W11513151 Whirlpool Refrigerator Utility Pan
30W11498983 Whirlpool Refrigerator Knob
31W10827914 Whirlpool Refrigerator Pantry Drawer Top Front Lid
32WPW10503183 Whirlpool Freezer Basket
33Divider, Basket (Lower)
34W10348238 Whirlpool Refrigerator Freezer Basket
35WPW10474715 Whirlpool Refrigerator Gear
35WPW10474716 Whirlpool Refrigerator Gear
37W10802339 Whirlpool Refrigerator Shaft
38W10348259 Whirlpool Refrigerator Bracket Assembly
38W10348260 Whirlpool Refrigerator Bracket
40WP67001722 Whirlpool Refrigerator Support
40WP67001721 Whirlpool Refrigerator Support
41W11402523 Whirlpool Refrigerator Glass Shelf
42W11245261 Whirlpool Refrigerator Trim
43WP67001716 Whirlpool Refrigerator Shelf Support Clip Ladder Hook
