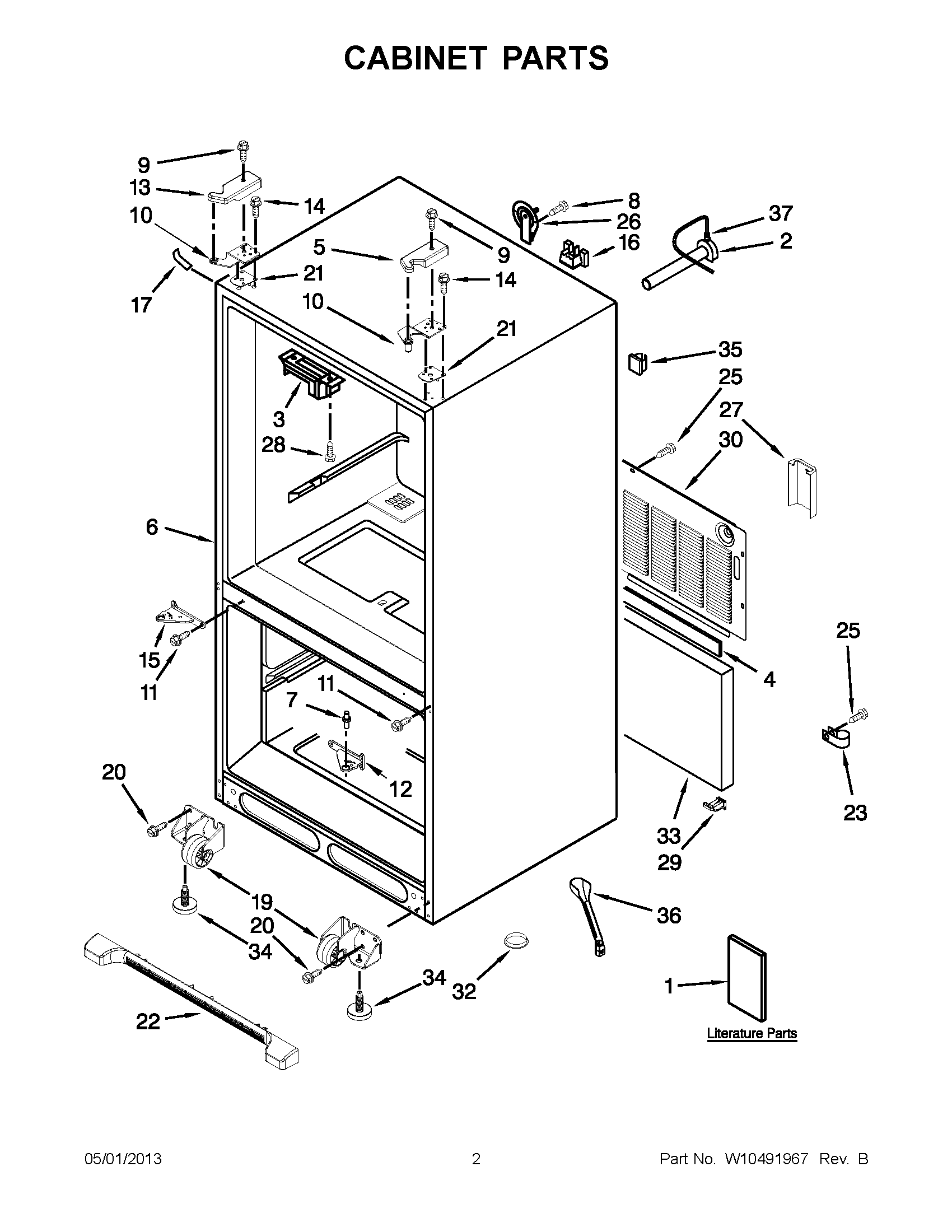

KBFS22EWMS5 01 – CABINET PARTS

Products

Position	Product
1	TECH SHEET
1	ENERGY GUIDE
1	USE & CARE GUIDE
2	W11176463 Whirlpool Refrigerator Water Tube
3	WP67003405 Whirlpool Pivot Block
4	B5759655 Whirlpool Refrigerator Gasket
5	WPW10191117 Whirlpool Refrigerator Cover
6	CABINET (NOT A SERVICEABLE PART)
7	WP67006642 Whirlpool Refrigerator Pin
8	WP98165 Whirlpool Screw
9	WP8281196 Whirlpool Screw
10	W11592375 Whirlpool Door Hinge
10	W11592374 Whirlpool Refrigerator Top Door Hinge
11	WP67006380 Whirlpool Screw
13	WPW10337648 Whirlpool Refrigerator Cover
14	WP489349 Whirlpool Refrigerator Screw
15	W10917988 Whirlpool Refrigerator Door Hinge
16	WP12777701 Whirlpool Refrigerator Filler Block
17	WP12587703AP Whirlpool Refrigerator Filler
19	WPW10515762 Whirlpool Refrigerator Cabinet Roller
19	WPW10515763 Whirlpool Refrigerator Cabinet Roller
20	67006564 Whirlpool Refrigerator Screw
21	12999501 Whirlpool Refrigerator Hinge Shim
21	12999502 Whirlpool Refrigerator Hinge Shim
22	WPW10534160 Whirlpool Refrigerator Front Grille
23	W11456069 Whirlpool Refrigerator Clamp
25	67006425 Whirlpool Refrigerator Screw
26	12726003 Whirlpool Refrigerator Water Cover
27	W10208593 Whirlpool Refrigerator Valve Cover
28	W10854958 Whirlpool Refrigerator Screw
29	12831101 Whirlpool Refrigerator Tube Clamp
30	W10210980 Whirlpool Refrigerator Back Cover
32	A3076901 Whirlpool Refrigerator Plug
33	INSULATION, SOUND
34	WPW10141622 Whirlpool Leveler
35	WPM0104106 Whirlpool Refrigerator Clip
36	W10619951 Whirlpool Drain Tube with Grommet
37	WPM0114003 Whirlpool Microwave Speed Clip Clamp
