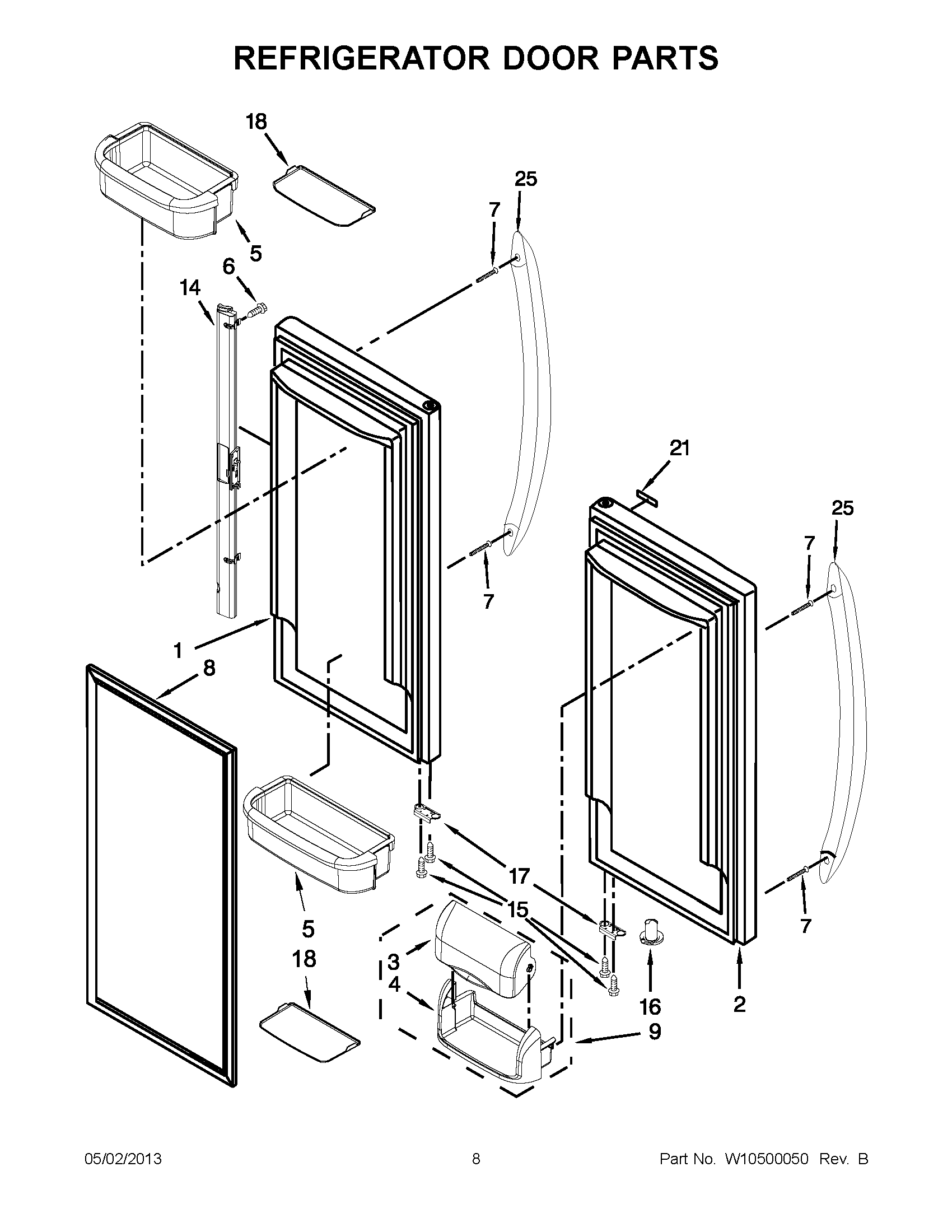

KBFS22EWMS7 04 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	DOOR, LEFT (STAINLESS)
2	13107856SQ Whirlpool Stainless Steel Door
3	WP67003637 Whirlpool Dairy Door
4	WP67001279 Whirlpool Refrigerator Dairy Tray
5	WPW10289489 Whirlpool Door Shelf Bin
5	BUCKET, LARGE
5	WPW10371193 Whirlpool Refrigerator Door Bin
5	BUCKET, SMALL
6	W11214483 Whirlpool Refrigerator Screw
7	WPW10661886 Whirlpool Refrigerator Door Handle Screw
8	W10830283 Whirlpool Refrigerator Door Gasket
8	GASKET-FIP
9	WP12744905 Whirlpool Refrigerator Compressor Door
14	WP12722803AP Whirlpool Refrigerator Mullion Rail
15	WP98165 Whirlpool Screw
16	WP12028505AP Whirlpool Closing Cam
17	W11703060 Whirlpool Door Stop
18	W10450004 Whirlpool Refrigerator Mat
18	W11408990 Whirlpool Refrigerator Mat
18	WPW10450021 Whirlpool Refrigerator Mat
18	W10450029 Whirlpool Refrigerator Mat
21	WPW10243391 Whirlpool Refrigerator Nameplate
25	WPW10314517K Whirlpool Refrigerator Handle
