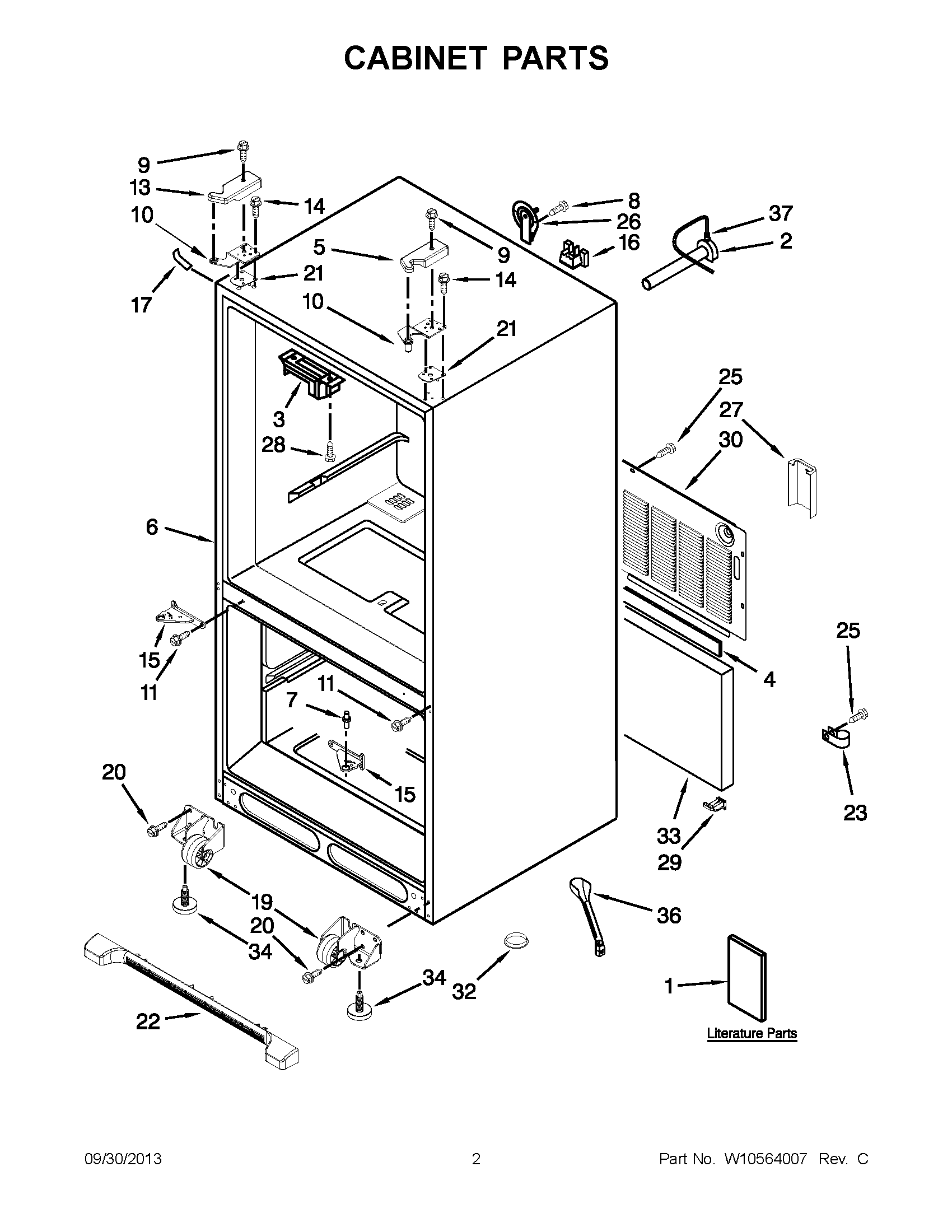

KBFS22EWMS9 02 – CABINET PARTS

KBFS22EWMS9 02 – CABINET PARTS

Written by

in

KBFS22EWMS9 02 – CABINET PARTS

Products

PositionProduct
1TECH SHEET
1ENERGY GUIDE
1USE & CARE GUIDE
2W11176463 Whirlpool Refrigerator Water Tube
3WP67003405 Whirlpool Pivot Block
4B5759655 Whirlpool Refrigerator Gasket
5WPW10191117 Whirlpool Refrigerator Cover
6CABINET (NOT A SERVICEABLE PART)
7WP67006642 Whirlpool Refrigerator Pin
8WP98165 Whirlpool Screw
9WP8281196 Whirlpool Screw
10W11592374 Whirlpool Refrigerator Top Door Hinge
10W11592375 Whirlpool Door Hinge
11WP67006380 Whirlpool Screw
13WPW10337648 Whirlpool Refrigerator Cover
14WP489349 Whirlpool Refrigerator Screw
15W10917988 Whirlpool Refrigerator Door Hinge
16WP12777701 Whirlpool Refrigerator Filler Block
17WP12587703AP Whirlpool Refrigerator Filler
19WPW10515762 Whirlpool Refrigerator Cabinet Roller
19WPW10515763 Whirlpool Refrigerator Cabinet Roller
2067006564 Whirlpool Refrigerator Screw
2112999502 Whirlpool Refrigerator Hinge Shim
2112999501 Whirlpool Refrigerator Hinge Shim
22WPW10534160 Whirlpool Refrigerator Front Grille
23W11456069 Whirlpool Refrigerator Clamp
2567006425 Whirlpool Refrigerator Screw
2612726003 Whirlpool Refrigerator Water Cover
27W10208593 Whirlpool Refrigerator Valve Cover
28W10854958 Whirlpool Refrigerator Screw
29W10528513 Whirlpool Tube Clamp
30W10210980 Whirlpool Refrigerator Back Cover
32A3076901 Whirlpool Refrigerator Plug
33INSULATION, SOUND
34WPW10141622 Whirlpool Leveler
35WPM0104106 Whirlpool Refrigerator Clip
36W10619951 Whirlpool Drain Tube with Grommet
37WPM0114003 Whirlpool Microwave Speed Clip Clamp
