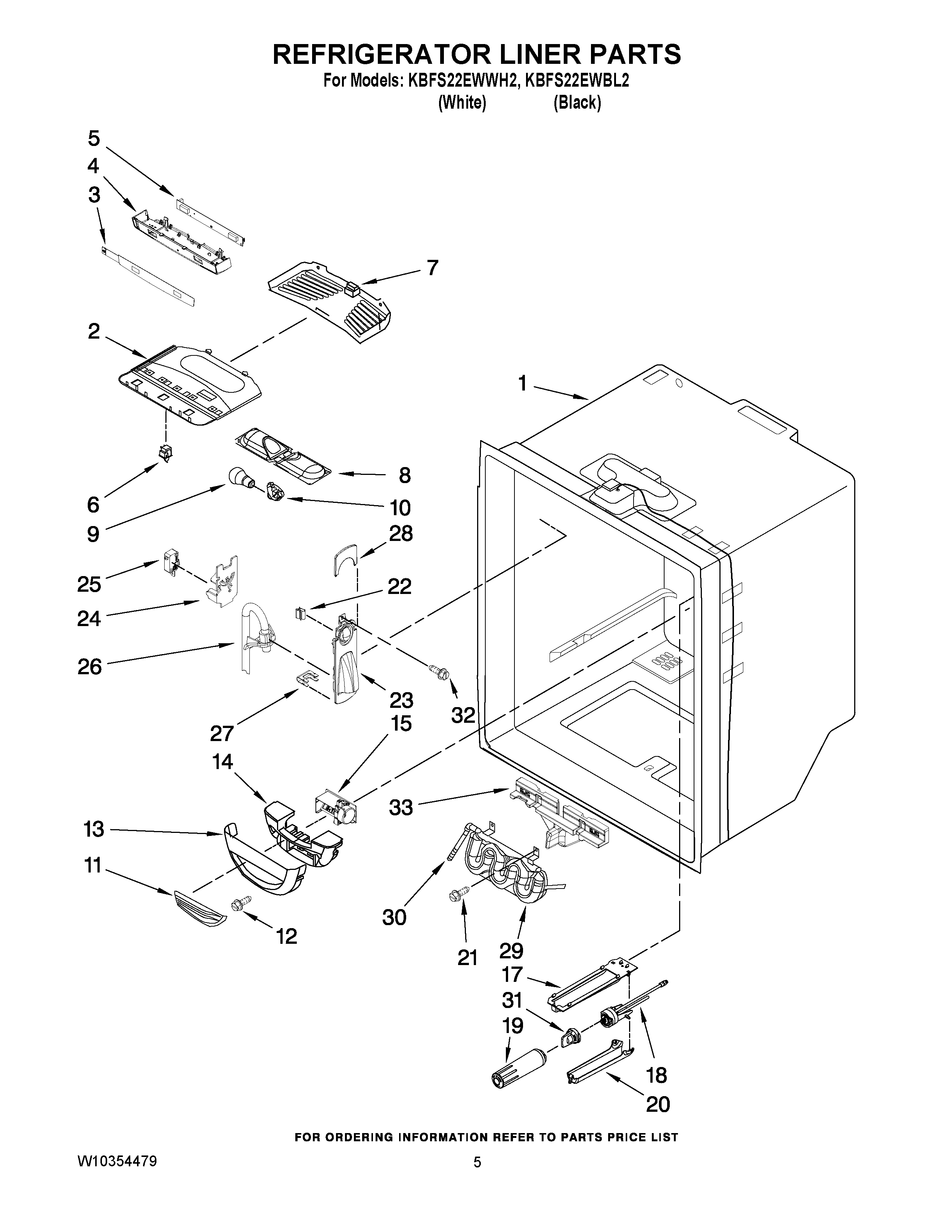

KBFS22EWWH2 03 – REFRIGERATOR LINER PARTS

Products

PositionProduct
NIWPW10273869 Whirlpool Refrigerator Wire Harness
1CABINET (NOT A SERVICEABLE PART)
2Module, Light
3WPW10317125 Whirlpool Refrigerator Overlay
4W11416469 Whirlpool Refrigerator Housing
5WPW10319823-includeCORE Whirlpool WPW10319823 Refrigerator Electronic Control Board + Core
6W11291138 Whirlpool Refrigerator Door Switch
7W11284721 Whirlpool Refrigerator Cover
812806601 Whirlpool Refrigerator Light Housing
9W11679940 Whirlpool Refrigerator Light Bulb Assembly
10W11447232 Whirlpool Refrigerator Socket
1167003900 Whirlpool Refrigerator Insert Damper Cover
12WP400021-1 Whirlpool Screw
13WP12806701 Whirlpool Refrigerator Box Cover
14INSULATION
15CONTROL DAMPER
17PLATE-FIL
18W11346623 Whirlpool Refrigerator Water Filter Head
19everydrop® Filter 4 EDR4RXD1 Whirlpool Refrigerator Water
20WP12568001 Whirlpool Filter Cover
21WP67006415 Whirlpool Refrigerator Screw
22CLIP, FACADE (2)
23FACADE, DISP.
2412707303SP Whirlpool Refrigerator Plate
25WP12575501 Whirlpool Refrigerator Micro Switch
26W11677725 Whirlpool Refrigerator Guide
2767002816 Whirlpool Refrigerator Waterline Clip
28W11519867 Whirlpool Refrigerator Cover
29TANK, WATER
30WP2300868 Whirlpool Refrigerator Fitting
31W11395888 Whirlpool Refrigerator Bypass Filter Cap
3267006425 Whirlpool Refrigerator Screw
33W10833346 Whirlpool Refrigerator Insulation
