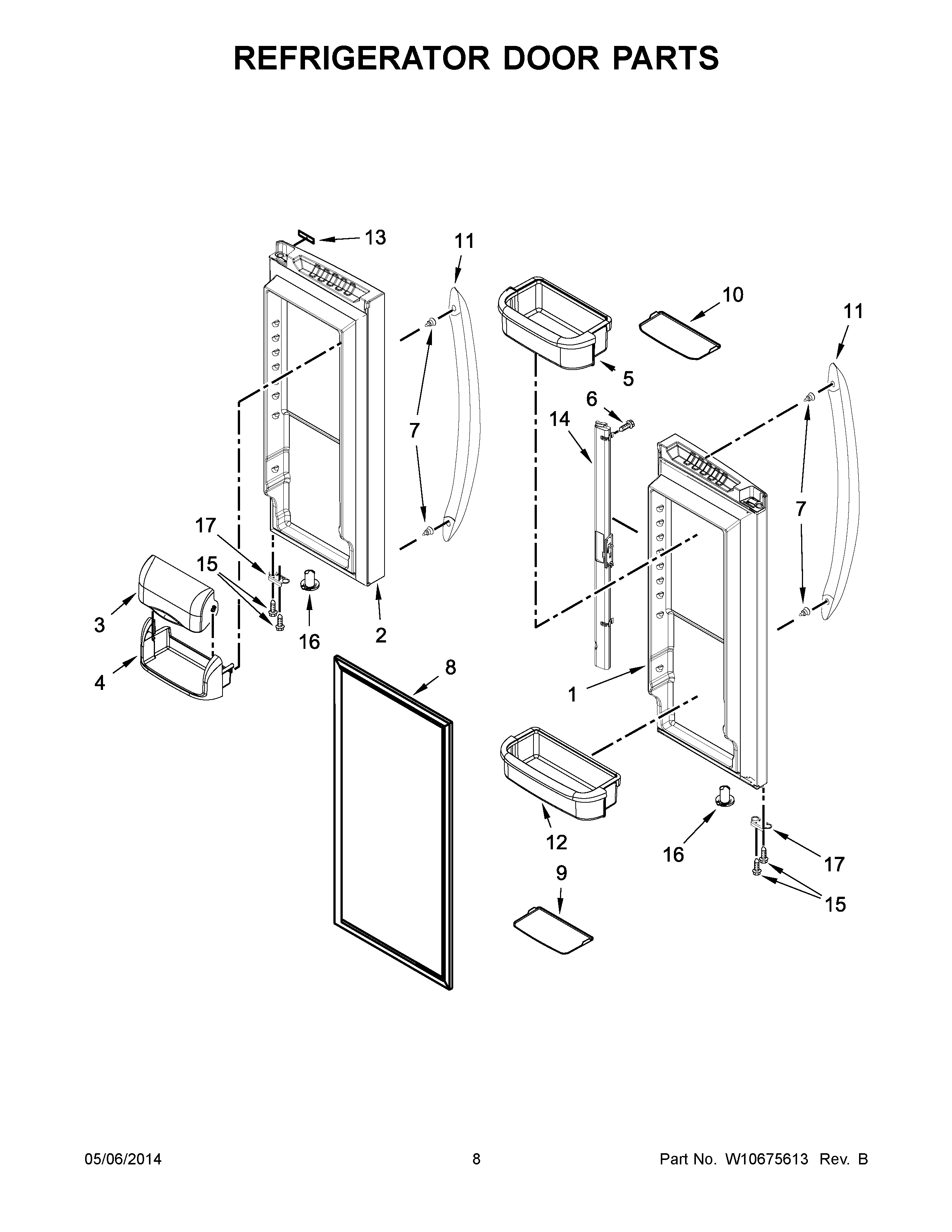

KBFS25ECBL00 05 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	13107881WQ Whirlpool Refrigerator DOR-FIP White
1	13107881BQ Whirlpool Refrigerator DOR Foam In Place Black
1	13107881SQ Whirlpool Refrigerator DOR-FIP SS
2	13107855WQ Whirlpool Refrigerator White FIP Door
2	13107855SQ Whirlpool Refrigerator Door – FIP Stainless Steel
2	13107855BQ Whirlpool Refrigerator Black Foam In Place Doorack
3	WP67003637 Whirlpool Dairy Door
4	WP67001279 Whirlpool Refrigerator Dairy Tray
5	WPW10371194 Whirlpool Refrigerator Door Shelf Bin Basket Bucket
6	W11311945 Whirlpool Refrigerator Screw
7	WPW10661886 Whirlpool Refrigerator Door Handle Screw
8	GASKET-FIP
8	W10830189 Whirlpool Refrigerator Door Gasket
8	GASKET-FIP
9	W11402028 Whirlpool Refrigerator Mat
10	WPW10450021 Whirlpool Refrigerator Mat
11	HANDLE, DOOR (WHITE)
11	WPW10586526 Whirlpool Refrigerator Handle
11	HANDLE, DOOR (BLACK)
12	WPW10289497 Whirlpool Refrigerator Shelf Bin Basket Door
13	WPW10243393 Whirlpool Dishwasher Nameplate
13	WPW10243391 Whirlpool Refrigerator Nameplate
13	WPW10243392 Whirlpool Dishwasher Nameplate
14	WP12722803AP Whirlpool Refrigerator Mullion Rail
14	WP12722803B Whirlpool Door Guide
14	RAIL-MULLN WHITE
15	WP98165 Whirlpool Screw
16	WP67003639 Whirlpool Refrigerator Closer
16	WP67003638 Whirlpool Closing Cam
16	WP12028505AP Whirlpool Closing Cam
17	12968202W Whirlpool Refrigerator Door Stop
17	W11708403 Whirlpool Door Stop
17	W11703060 Whirlpool Door Stop
