KBFS25ECWH00 02 – CABINET PARTS
Written by
in

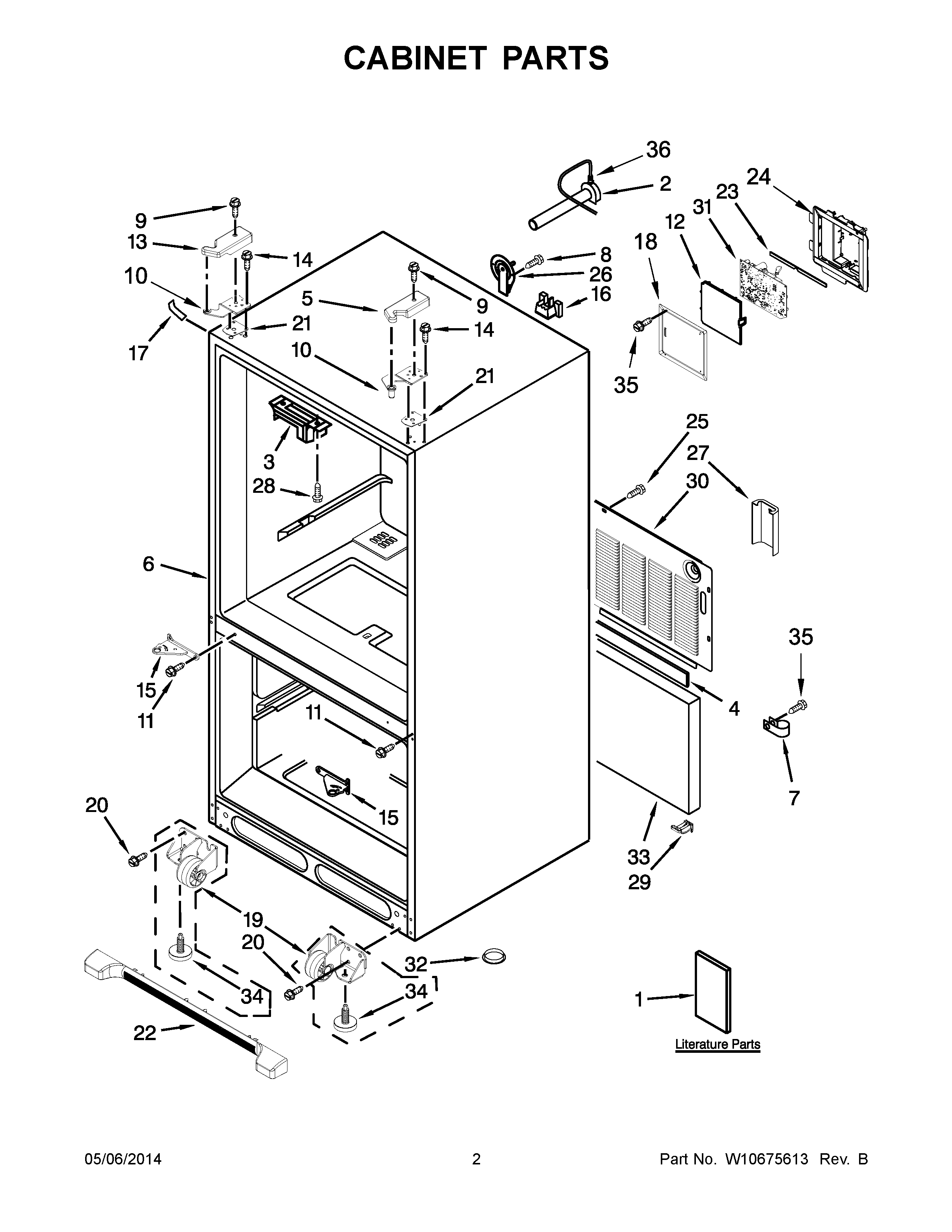

KBFS25ECWH00 02 – CABINET PARTS
Products
Position
Product
1
TECH SHEET
1
USE AND CARE GUIDE
1
ENERGY GUIDE
2
W11176463 Whirlpool Refrigerator Water Tube
3
WP67003405 Whirlpool Pivot Block
4
B5759655 Whirlpool Refrigerator Gasket
5
67005958 Whirlpool Refrigerator Top Hinge Cover (RT-WHT)
5
WPW10191117 Whirlpool Refrigerator Cover
5
WP67005956 Whirlpool Refrigerator Cover
6
CABINET (NOT A SERVICEABLE PART)
7
W11456069 Whirlpool Refrigerator Clamp
8
WP98165 Whirlpool Screw
9
WP8281196 Whirlpool Screw
10
W11592374 Whirlpool Refrigerator Top Door Hinge
10
W11592375 Whirlpool Door Hinge
11
WP67006380 Whirlpool Screw
12
W11226688 Whirlpool Refrigerator Cover
13
WPW10337648 Whirlpool Refrigerator Cover
13
W10337647 Whirlpool Refrigerator Cover
13
WPW10337634 Whirlpool Refrigerator Cover
14
WP489349 Whirlpool Refrigerator Screw
15
W10918168 Whirlpool Refrigerator Door Hinge
15
W10918113 Whirlpool Refrigerator Door Hinge
15
HINGE, CENTER (RIGHT) (WHITE)
15
W10917988 Whirlpool Refrigerator Door Hinge
15
W10918164 Whirlpool Refrigerator Door Hinge
16
W11686793 Whirlpool Block
17
12587703W Whirlpool Refrigerator Cover
17
67003485 Whirlpool Refrigerator Corner Cover (Black)
17
WP12587703AP Whirlpool Refrigerator Filler
18
12961602 Whirlpool Refrigerator Wire Cover
19
WPW10515763 Whirlpool Refrigerator Cabinet Roller
19
WPW10515762 Whirlpool Refrigerator Cabinet Roller
20
67006564 Whirlpool Refrigerator Screw
21
12999501 Whirlpool Refrigerator Hinge Shim
21
12999502 Whirlpool Refrigerator Hinge Shim
22
WPW10534155 Whirlpool Refrigerator Kickplate Grille Gray
22
WPW10534154 Whirlpool Refrigerator Front Grille
22
WPW10534153 Whirlpool Refrigerator Black Kickplate Grille
23
GASKET, HV BOX
24
BOX, HV CONTROL
25
67006425 Whirlpool Refrigerator Screw
26
12726003 Whirlpool Refrigerator Water Cover
27
W10208593 Whirlpool Refrigerator Valve Cover
28
W10854958 Whirlpool Refrigerator Screw
29
W10528513 Whirlpool Tube Clamp
30
WPW10211855 Whirlpool Refrigerator Back Cover
31
WPW10317076-includeCORE Whirlpool WPW10317076 Refrigerator Electronic Control Board + Core
32
A3076901 Whirlpool Refrigerator Plug
33
INSULATION, SOUND
34
WPW10141622 Whirlpool Leveler
35
W11686675 Whirlpool Screw
36
WPM0114003 Whirlpool Microwave Speed Clip Clamp
←
