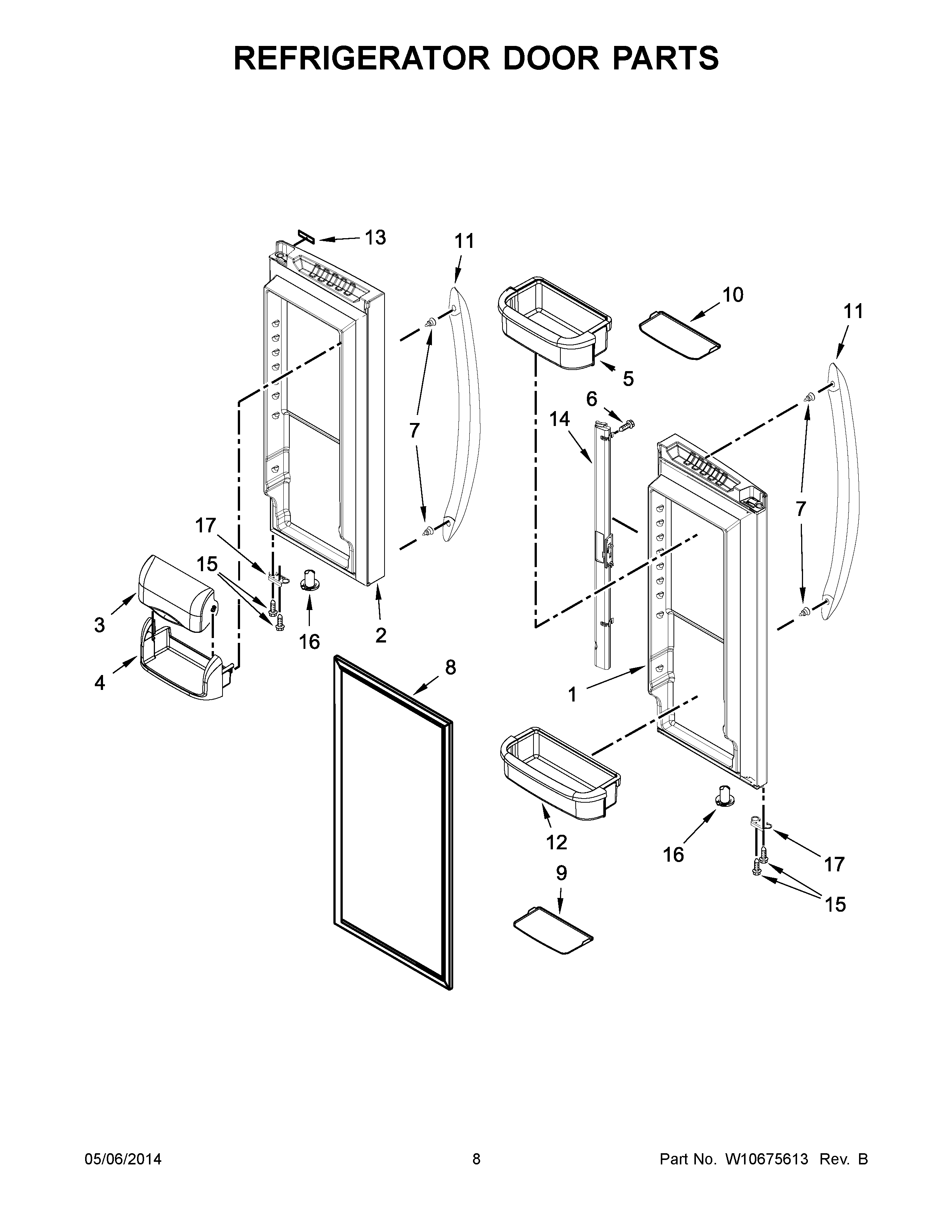

KBFS25ECWH00 05 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
113107881WQ Whirlpool Refrigerator DOR-FIP White
113107881BQ Whirlpool Refrigerator DOR Foam In Place Black
113107881SQ Whirlpool Refrigerator DOR-FIP SS
213107855WQ Whirlpool Refrigerator White FIP Door
213107855SQ Whirlpool Refrigerator Door – FIP Stainless Steel
213107855BQ Whirlpool Refrigerator Black Foam In Place Doorack
3WP67003637 Whirlpool Dairy Door
4WP67001279 Whirlpool Refrigerator Dairy Tray
5WPW10371194 Whirlpool Refrigerator Door Shelf Bin Basket Bucket
6W11311945 Whirlpool Refrigerator Screw
7WPW10661886 Whirlpool Refrigerator Door Handle Screw
8GASKET-FIP
8W10830189 Whirlpool Refrigerator Door Gasket
8GASKET-FIP
9W11402028 Whirlpool Refrigerator Mat
10WPW10450021 Whirlpool Refrigerator Mat
11HANDLE, DOOR (WHITE)
11WPW10586526 Whirlpool Refrigerator Handle
11HANDLE, DOOR (BLACK)
12WPW10289497 Whirlpool Refrigerator Shelf Bin Basket Door
13WPW10243393 Whirlpool Dishwasher Nameplate
13WPW10243391 Whirlpool Refrigerator Nameplate
13WPW10243392 Whirlpool Dishwasher Nameplate
14WP12722803AP Whirlpool Refrigerator Mullion Rail
14WP12722803B Whirlpool Door Guide
14RAIL-MULLN WHITE
15WP98165 Whirlpool Screw
16WP67003639 Whirlpool Refrigerator Closer
16WP67003638 Whirlpool Closing Cam
16WP12028505AP Whirlpool Closing Cam
1712968202W Whirlpool Refrigerator Door Stop
17W11708403 Whirlpool Door Stop
17W11703060 Whirlpool Door Stop
