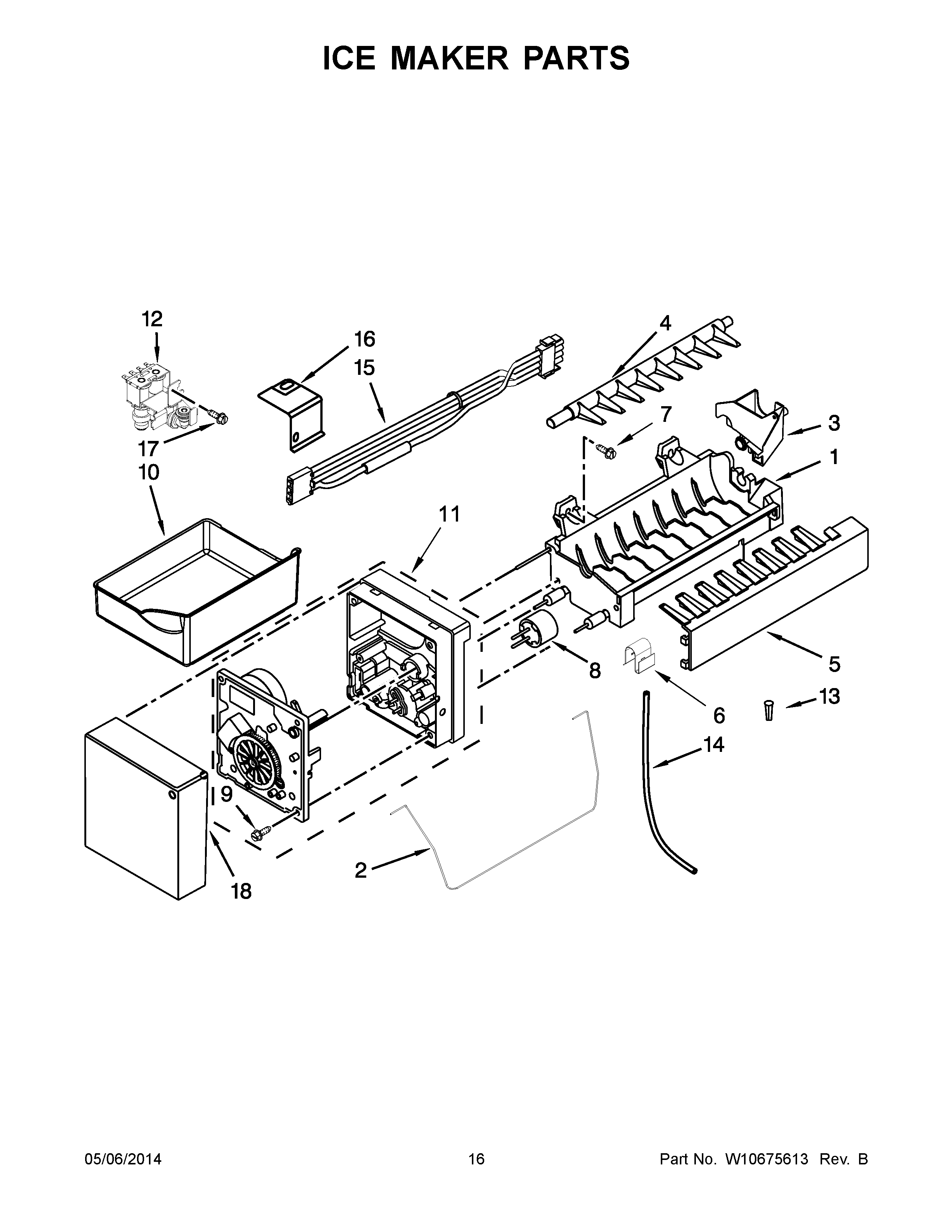

KBFS25ECWH00 09 – ICE MAKER PARTSadmin2025-04-26T12:05:26+00:00KBFS25ECWH00 09 – ICE MAKER PARTS ProductsPositionProduct1WPW10300025 Whirlpool Refrigerator Ice Mold2W11559683 Whirlpool Ice Level Arm3W10410073 Whirlpool Fill Cup Assembly4W10318914 Whirlpool Refrigerator Ejector Arm5WPW10122563 Whirlpool Refrigerator Stripper Arm6WP628379 Whirlpool Refrigerator Clip7W10001240 Whirlpool Refrigerator Screw8WP627985 Whirlpool Icemaker Cycling Thermostat9WP489464 Whirlpool Refrigerator Screw10WPW10171529 Whirlpool Refrigerator Ice Pan11WPW10281342 Whirlpool Refrigerator Motor Module12VALVE-WATER INLET REFR13WPA3223101 Whirlpool Refrigerator Insert PL14W11120581 Whirlpool Refrigerator Water Tube15WPW10458985 Whirlpool Wire Harness16WP2256087 Whirlpool Refrigerator Bracket17WP489128 Whirlpool Refrigerator Screw18W10377174 Whirlpool Refrigerator Front Cover100W10884390 Whirlpool Refrigerator Ice Maker Assembly
